WINFORD BRKDD50MF BREAKOUT BOARD TERMINAL

WINFORD BRKDD50MF BREAKOUT BOARD TERMINAL

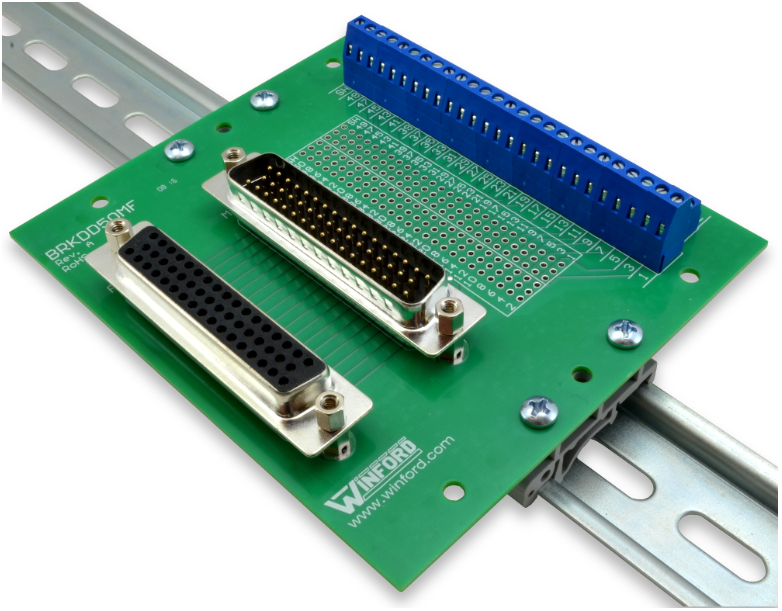

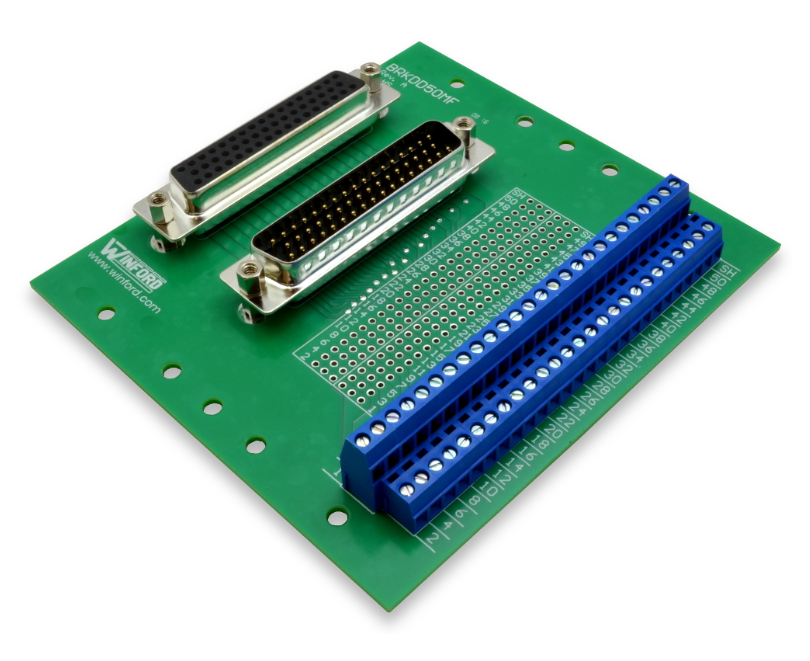

These breakout boards feature two DB50 connectors (one male, one female) wired 1:1, with all pins connected to screw terminals for easy wiring connections. Having two connectors allows the board to be easily inserted "in-line" with an existing connection, allowing signals to pass through while being monitored, or to work with "daisy-chained" equipment. Double-deck screw terminals efficiently utilize board area to provide a compact footprint.

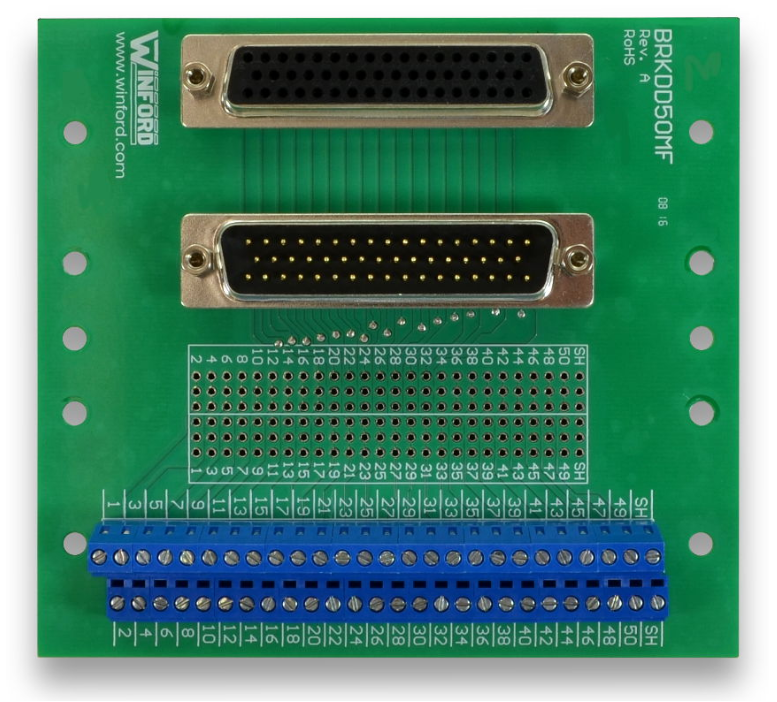

Each pin, including shield, is also brought to solder pads (3 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, Data Aquisition (DAQ) devices, and other devices that use a DB-50 connector.


Product Details


* Male and Female connected in parallel with each other and screw terminals
* Screw terminal for each of the 50 lines, plus shield
* Solder pad connection holes, three (3) per line
* Supports addition of 0.1" pin headers
* Screw terminals accomodate wire sizes from 16AWG to 26AWG

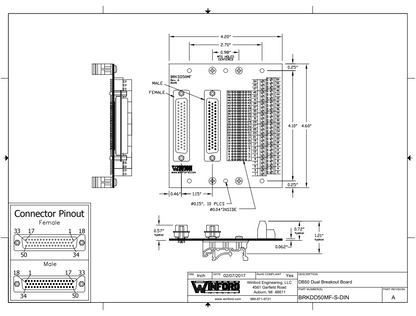

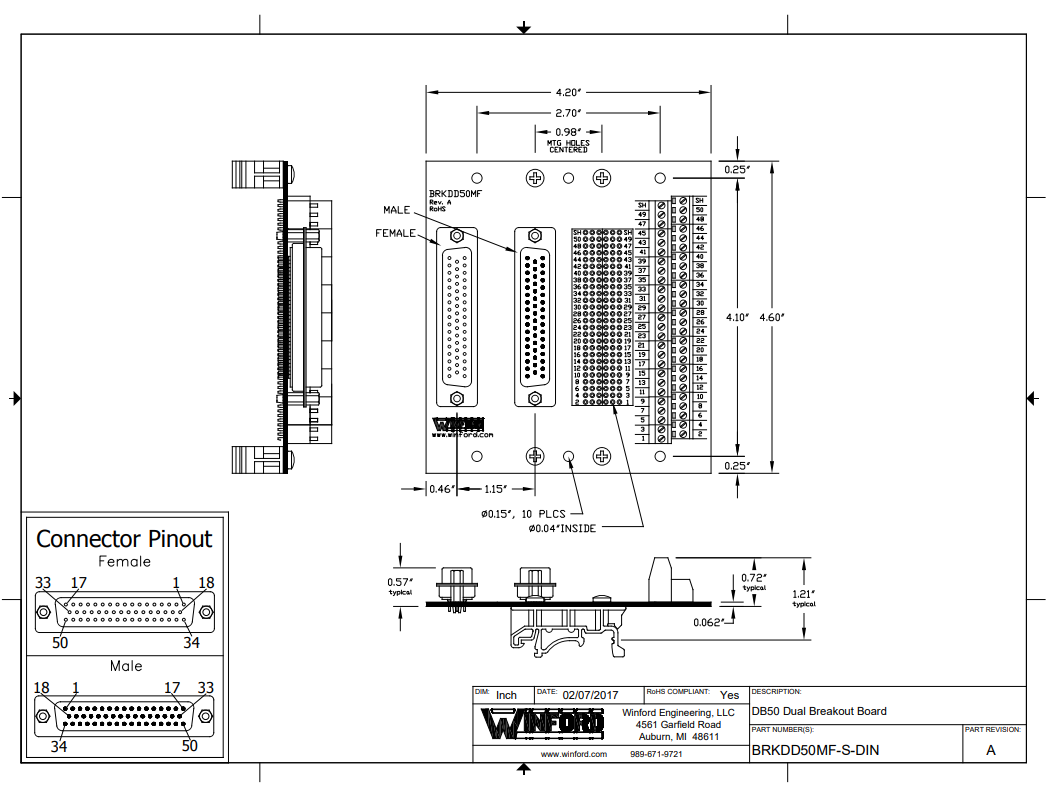

* Approximate dimensions: 4.2" x 4.6"
* Rubber feet or DIN rail mount
* Both DB50 Male and Female connectors included
* Connector pins arranged in 3 rows of pins
* Easily insert inline, for tapping into I/O signals
* Screw terminal for each of the 50 lines, plus shield
* Solder pad connection space for all 50 lines, plus shield
* Supports addition of 0.1" pin headers
* Rubber feet or DIN rail mount
