White-Rodgers 124-911 Contactor, Single, 100 A, 600 Vac 24 VDC

Manufacturer:

WHITE RODGERS

Manufacturer Part No:

124-911

Newark Part No.:

35M0124

Product Range

124 Series

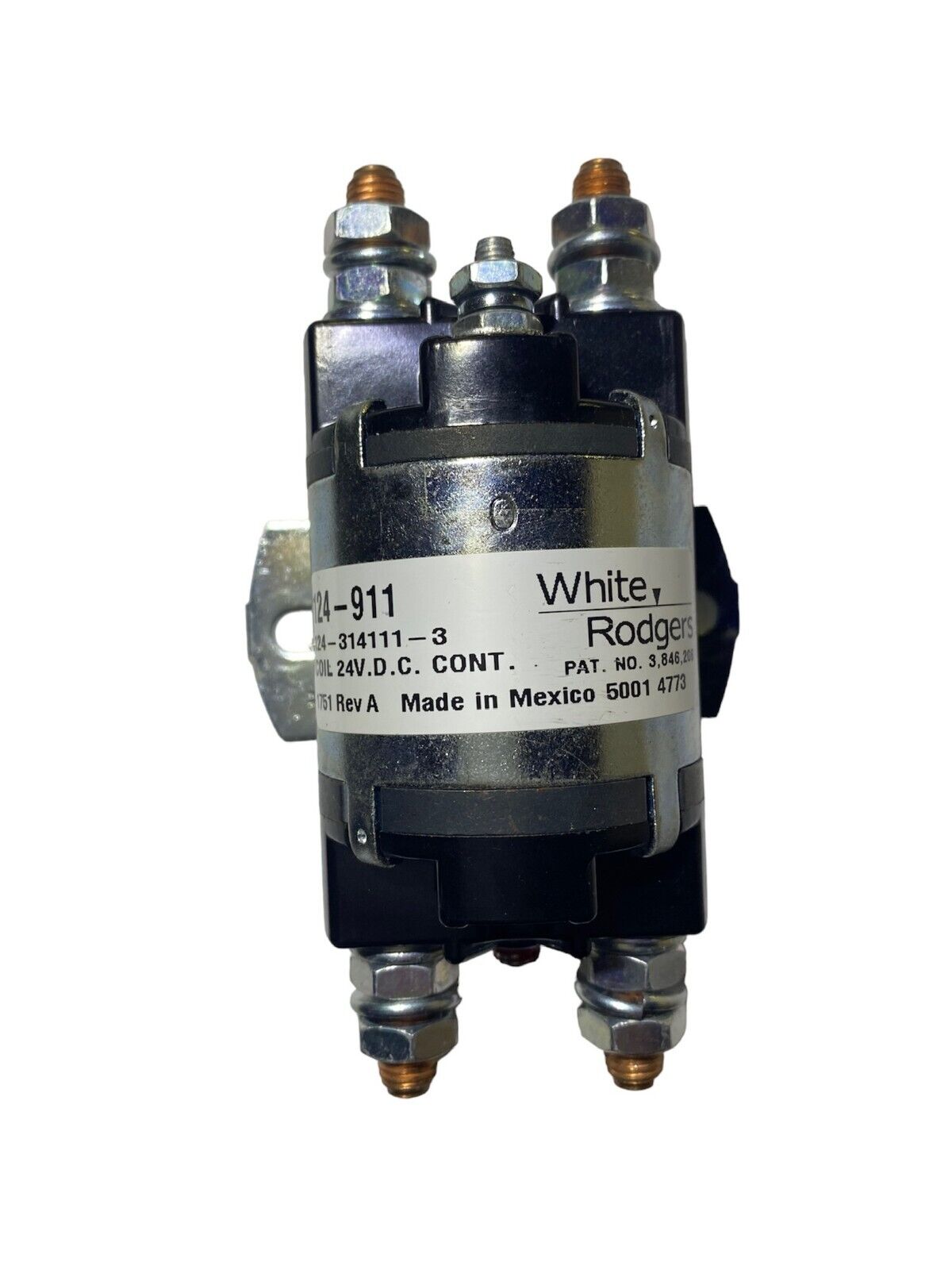

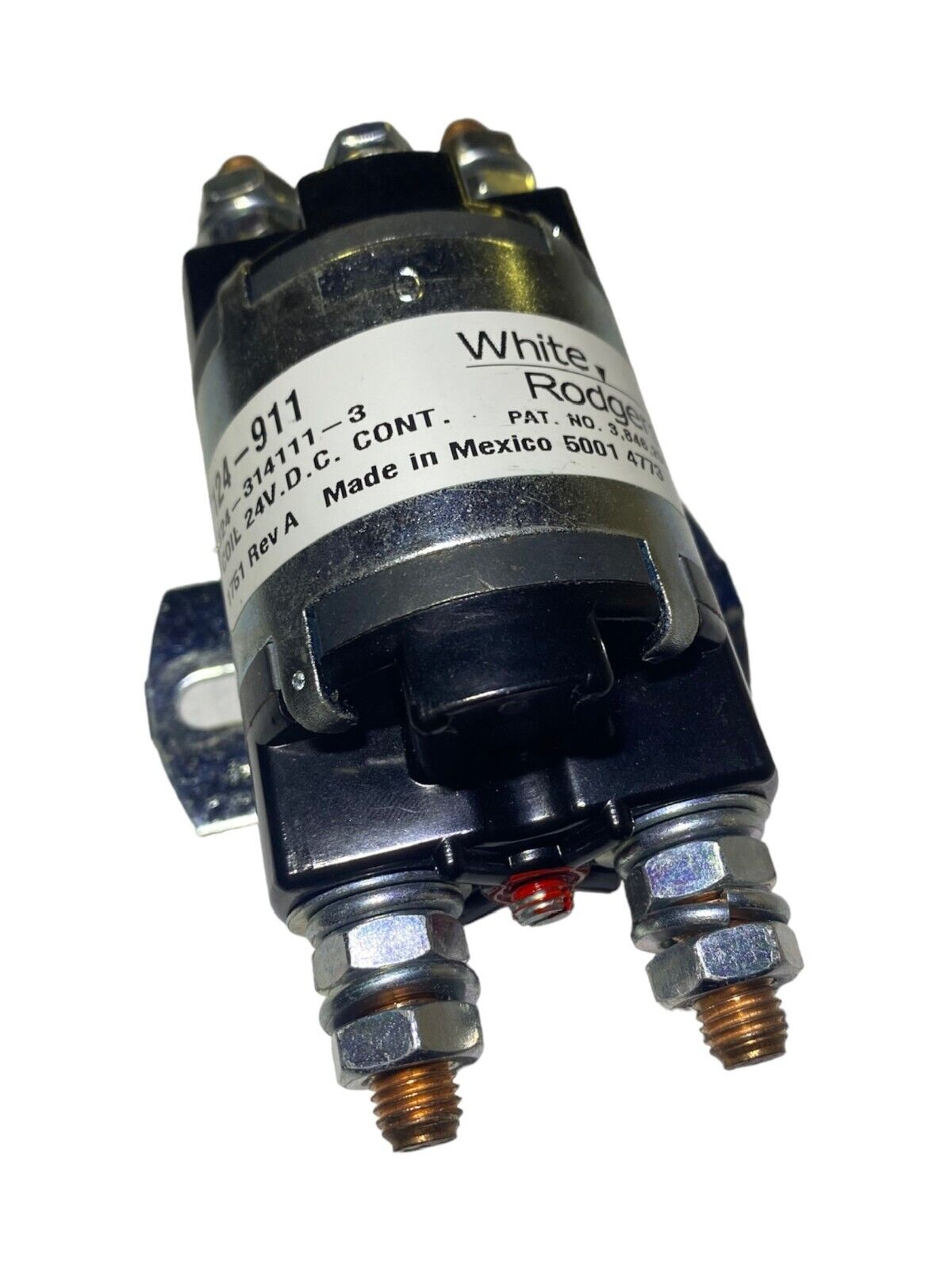

The 124-911 is a heavy-duty Power Contactor with SPDT silver alloy contact, UL94V-0 case. This 124-series contactor is dust-resistant cover. Ideal for mobile DC equipment. Continuous duty cycle, flange mount, 6-isolated coil terminals and standard bracket style.

* 53Ω Coil resistance at 25°C
* Vertical plane with coil terminals up mounting
* -40 to 150°F Temperature range




Overview

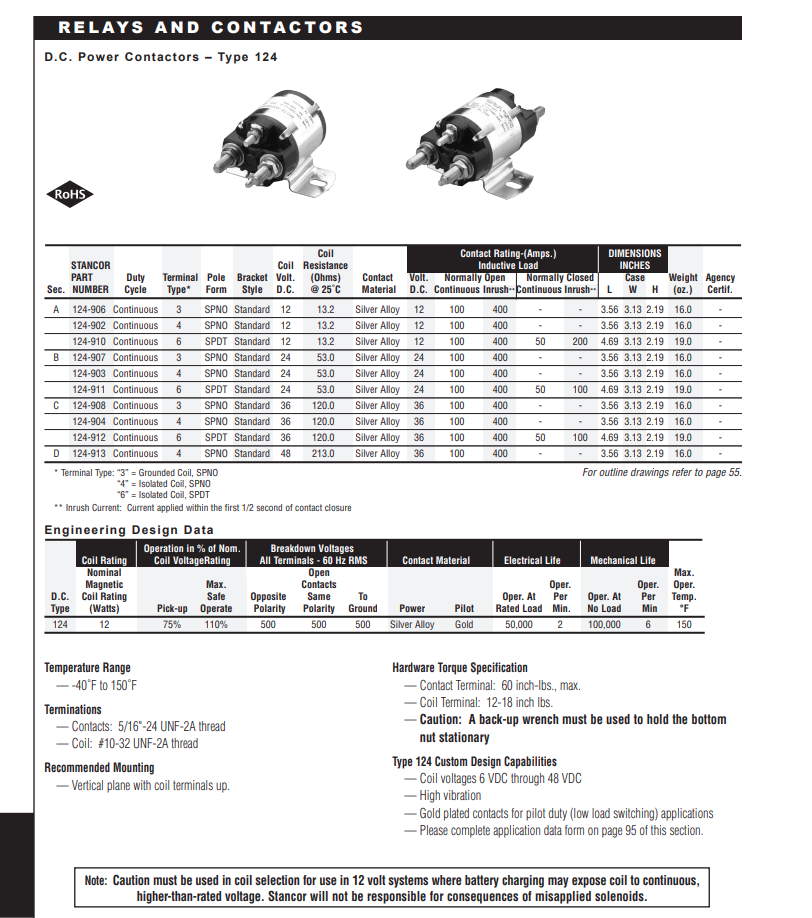

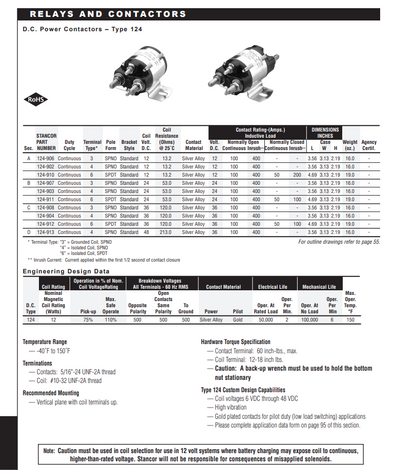

12/24 VDC, 100 A, 400 A Inrush Current, DC Power Contactors.

Features:
Silver Alloy Contact Material
Standard Bracket Style
Continuous Duty Cycle
Terminals: Coil - 10-32; Contact - 5/16-24
Dust Resistant
Standard Bracket

Specifications:
Dim./Wt.: SPNO - 3.56" X 3.13" X 2.19"/16 Ozs.
Dim./Wt.: SPDT - 4.69" X 3.13" X 2.19"/19 Ozs.
Operating Temperature: -40°F to +149°F
Recommended Mounting: Vertical Plane, Coil Terminals Up

Hardware Torque Specifications:
Contact Terminal: 60 Inch-Lbs. Maximum
Coil Terminal: 12-18 Inch-Lbs.
