Unbranded

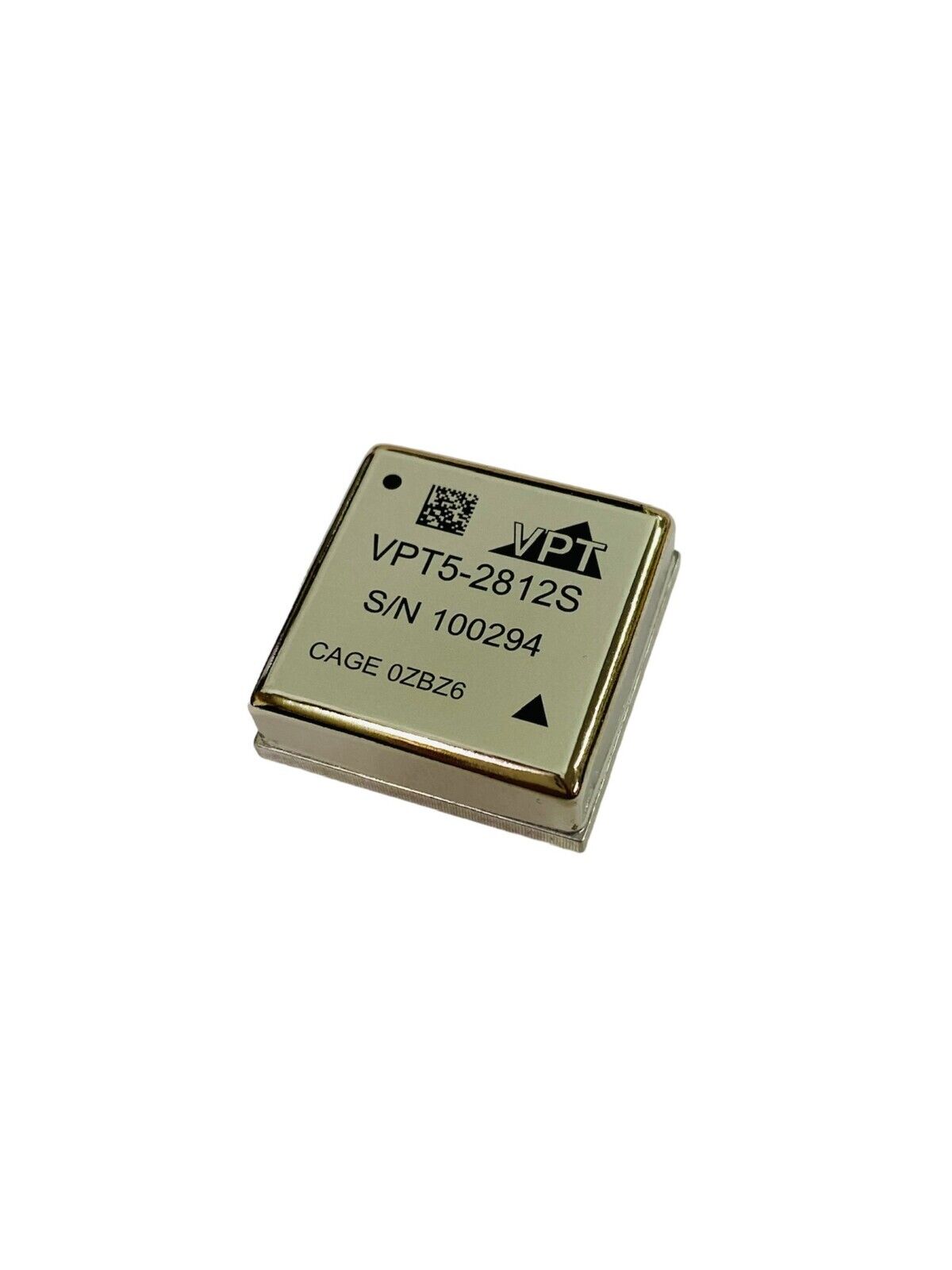

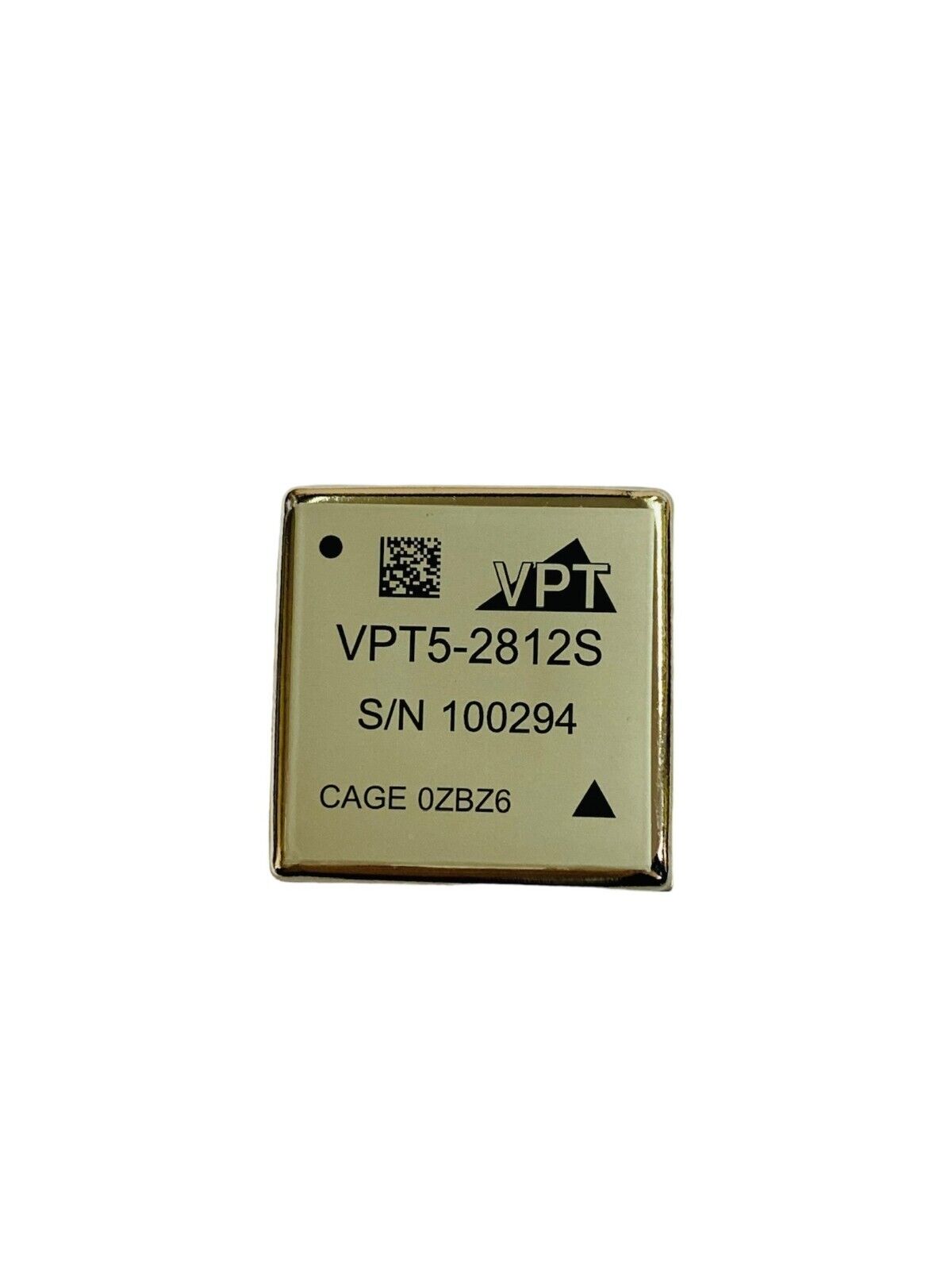

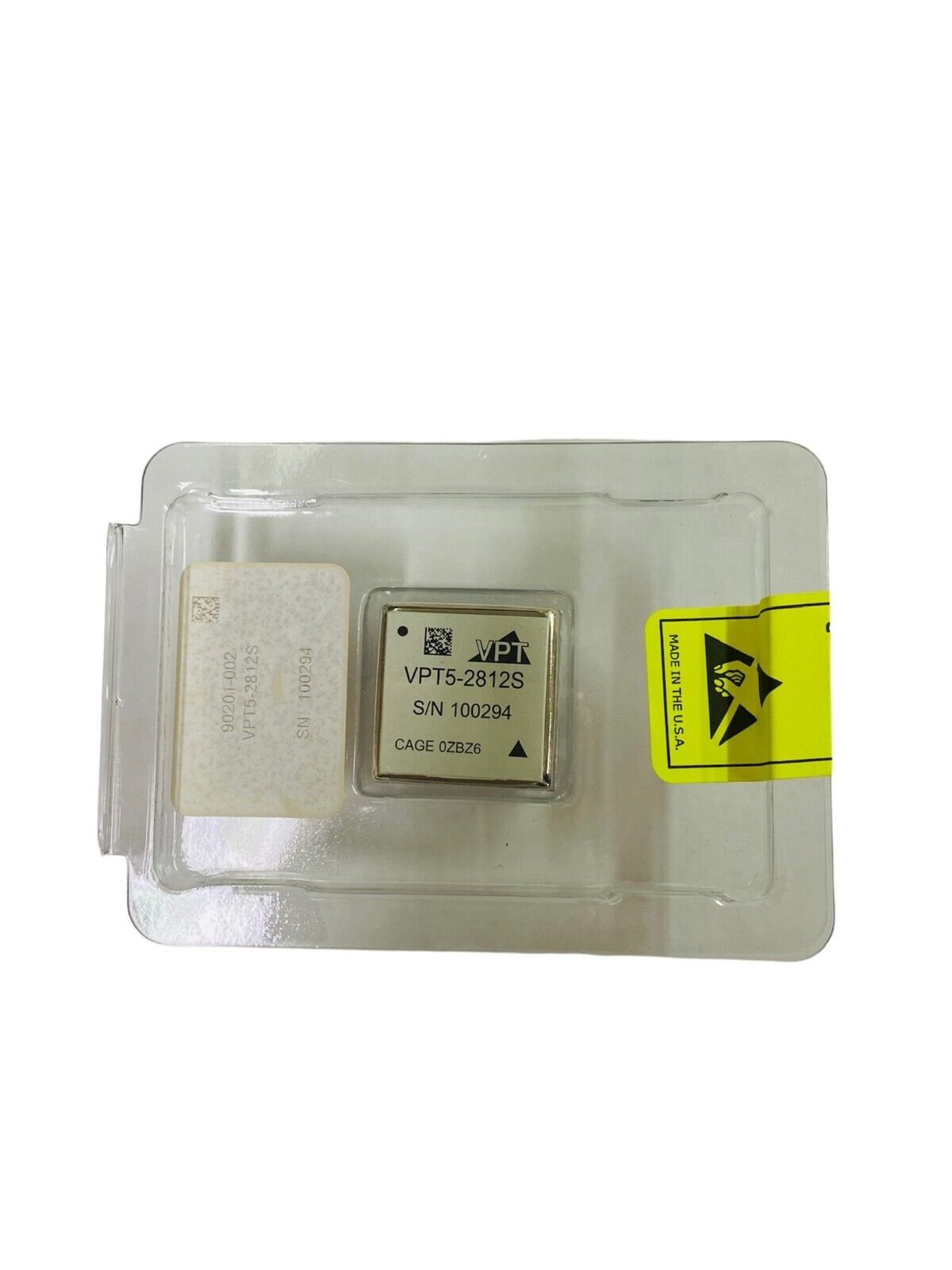

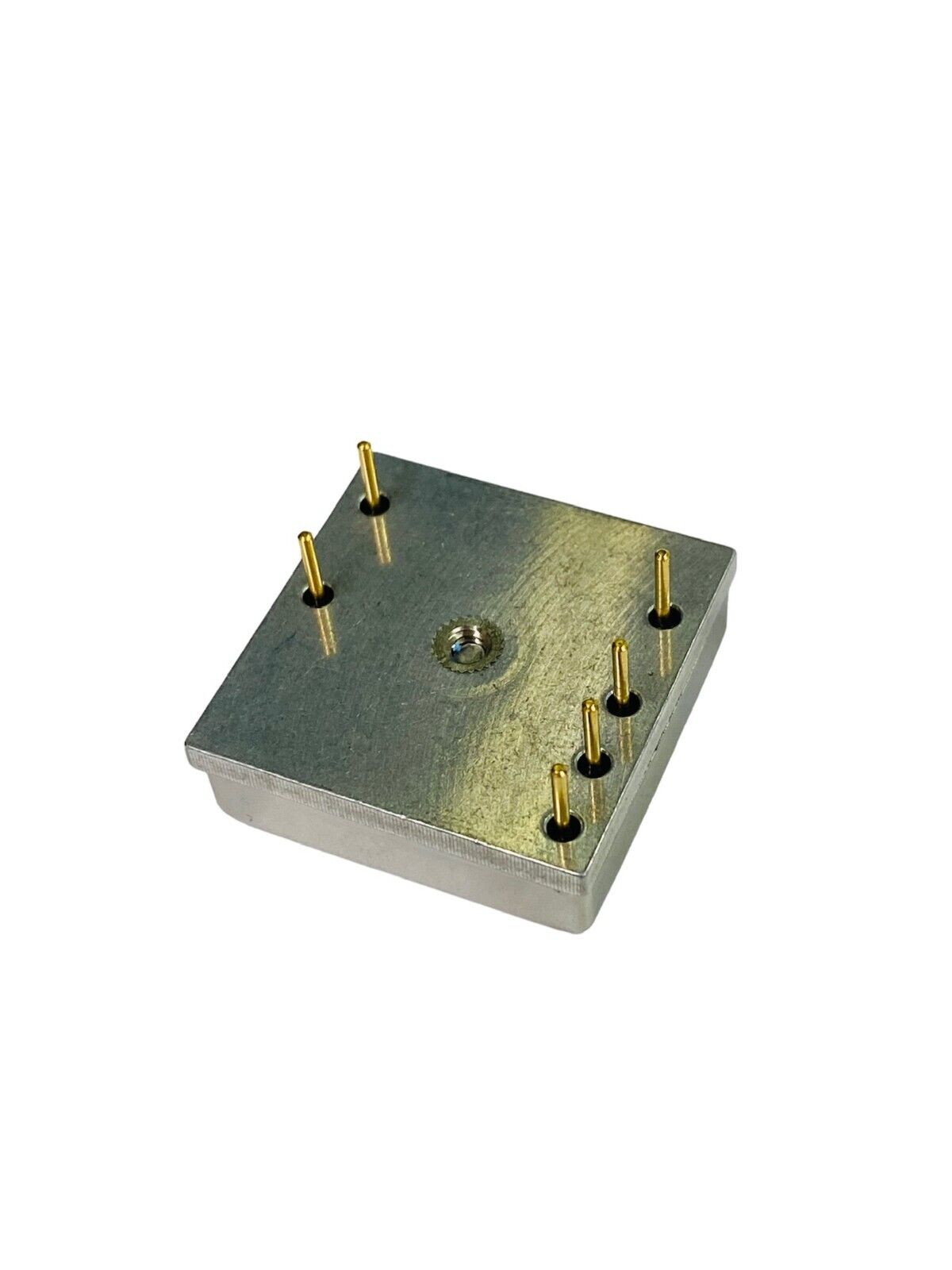

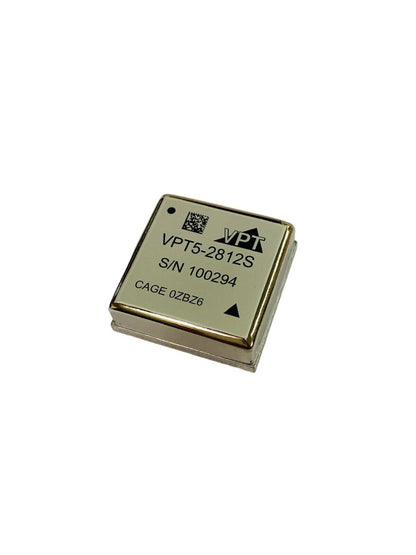

VPT5-2812S / 100294 Isolated COTS DC-DC Converters
VPT5-2812S / 100294 Isolated COTS DC-DC Converters
Regular price
$171.99
Regular price
$0.00
Sale price
$171.99
Unit price
/
per
13 in stock
Couldn't load pickup availability
VPT5-2812S / 100294 Isolated COTS DC-DC Converters
Current Special - Free Shipping & Volume Pricing

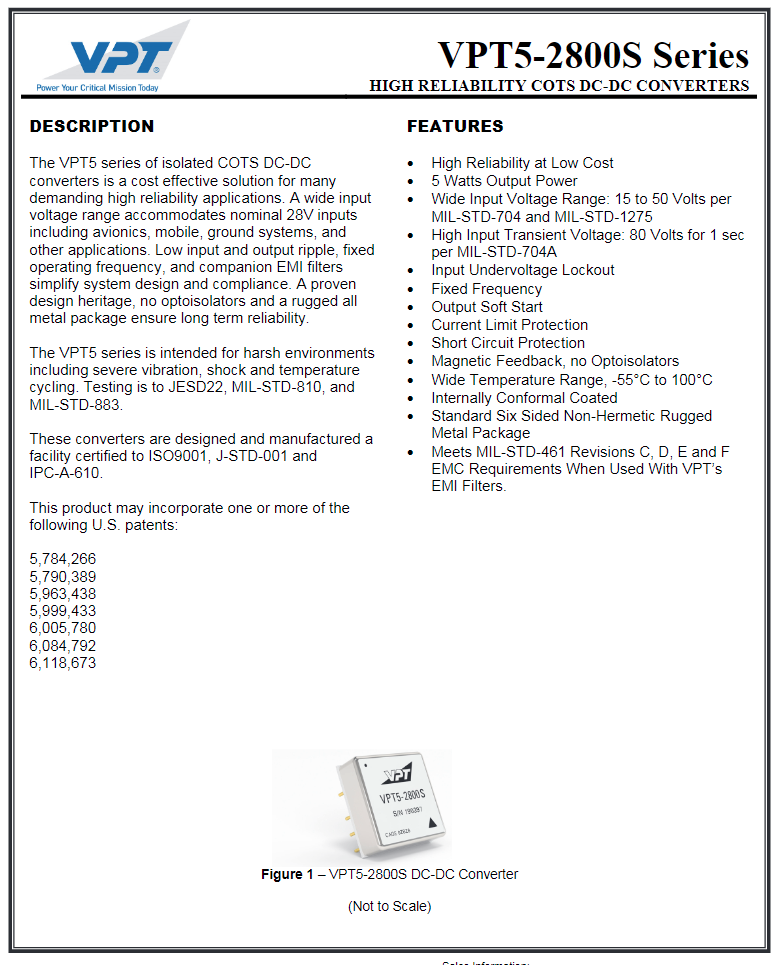

About This Item:
* Up to 5W output power
* Single outputs of 3.3V, 5V, 12V and 15V
* Very low output noise
* Wide input voltage range - 15 to 50V with 80V transient
* Full performance over a wide temperature range of -55 °C to +100 °C, no power derating necessary
* Six-sided metal cases for maximum EMI shielding
* No use of optoisolators
* Host of circuit protection features
* Fixed switching frequency
Description:
Ideal for military vehicles, avionics, weapons, shipboard, and other hi-rel applications, these converters are based on proven military heritage designs and ready for rugged duty. Hi-Rel COTS DC-DC Power Converters designed to meet the highest requirements. View Product Datasheet on Our Website and Request a Quote. For rugged duty. Mission critical. Harsh environments.

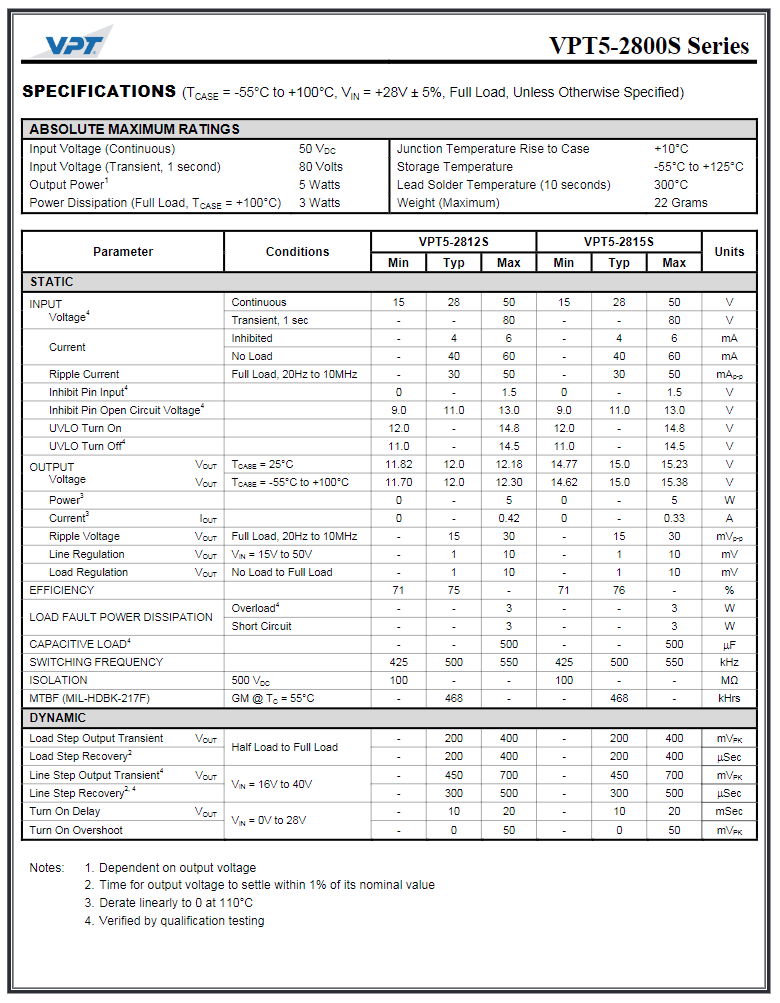

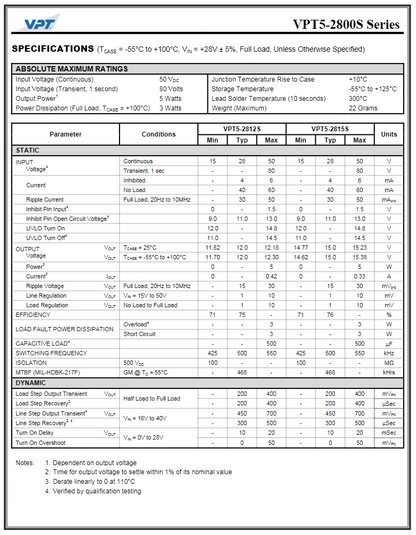

Parameter Conditions VPT5-2812S Units
Min Typ Max
Input Voltage Continuous
Transient(1) 15 28 50
80 Vdc
Output Voltage Full Load 11.70 12.00 12.30 Vdc
Output Power Vin: 15-50V 0 5 W
Efficiency Vin: 28V, Full Load 71 75 %
Input Ripple Full Load, 20Hz to 10MHz 30 50 mApp
Output Ripple Full Load, 20Hz to 10MHz 15 30 mVpp
Load Regulation No Load to Full Load 1 10 mV
Line Regulation Vin: 15-50V 1 10 mV
Shipping Information:
All orders placed are processed within 1 business day. Shipping is free within the United States
For international shipping - Shipping rates are calculated based on your address. Please note there are additional taxes and duties charged by your country's customs, those charges are not collected by us.
Return Policy:
A purchased item is eligible for a return for up to 30 days from the date of delivery and it must be sent back in the same condition as you received it.
Additional terms:
The item cannot have been used.
Customers are held responsible for the safe return of the item, which includes shipping.
Additional costs for the return of the purchase are to be paid by the customer.
Buy with Confidence:
At Out Front Inc, we've been providing top-quality electronic products since 1984. Because we prioritize quality assurance, we have 100% positive feedback from our customers. Our expertise includes re-selling obsolete/EOL and long-lead-time parts to manufacturers around the world. We are committed to providing the highest level of customer service and we are available to answer any questions you may have. We invite you to visit our website at www. Outfrontinc .com and shop with confidence.
