Vishay General Semiconductor - Diodes Division

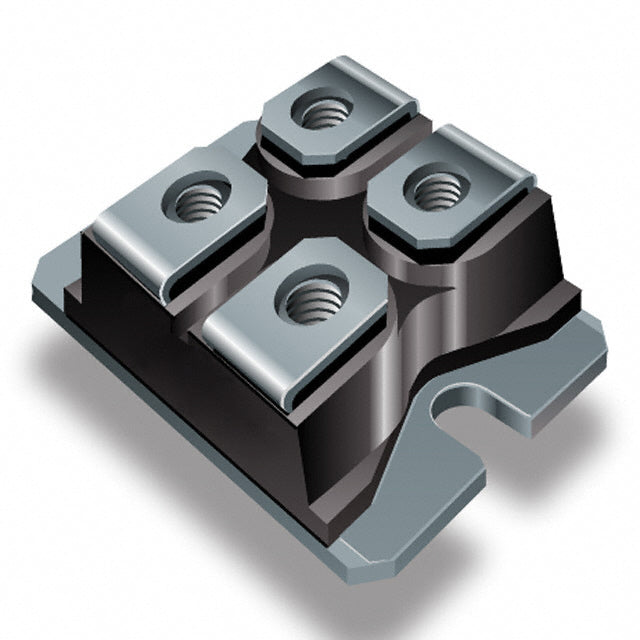

Vishay VS-GT180DA120U (Lot of 2) IGBT MOD 1200V 281A 1087W SOT227
Vishay VS-GT180DA120U (Lot of 2) IGBT MOD 1200V 281A 1087W SOT227
Regular price
$72.00
Regular price
Sale price
$72.00
Unit price
/
per
145 in stock
Couldn't load pickup availability
Vishay VS-GT180DA120U IGBT MOD 1200V 281A 1087W SOT227
Lot of 2pcs - D/C: 2136
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
|
|
Mfr
|
Vishay General Semiconductor - Diodes Division
|
|
Series
|
|
|
Package
|
Tube
|
|
Product Status
|
Active
|
|
IGBT Type
|
Trench Field Stop
|
|
Configuration
|
Single
|
|
Voltage - Collector Emitter Breakdown (Max)
|
1200 V
|
|
Current - Collector (Ic) (Max)
|
281 A
|
|
Power - Max
|
1087 W
|
|
Vce(on) (Max) @ Vge, Ic
|
2.05V @ 15V, 100A
|
|
Current - Collector Cutoff (Max)
|
100 µA
|
|
Input Capacitance (Cies) @ Vce
|
9.35 nF @ 25 V
|
|
Input
|
Standard
|
|
NTC Thermistor
|
No
|
|
Operating Temperature
|
-40°C ~ 150°C (TJ)
|
|
Mounting Type
|
Chassis Mount
|
|
Package / Case
|
SOT-227-4, miniBLOC
|
|
Supplier Device Package
|
SOT-227
|
|
Base Product Number
|
