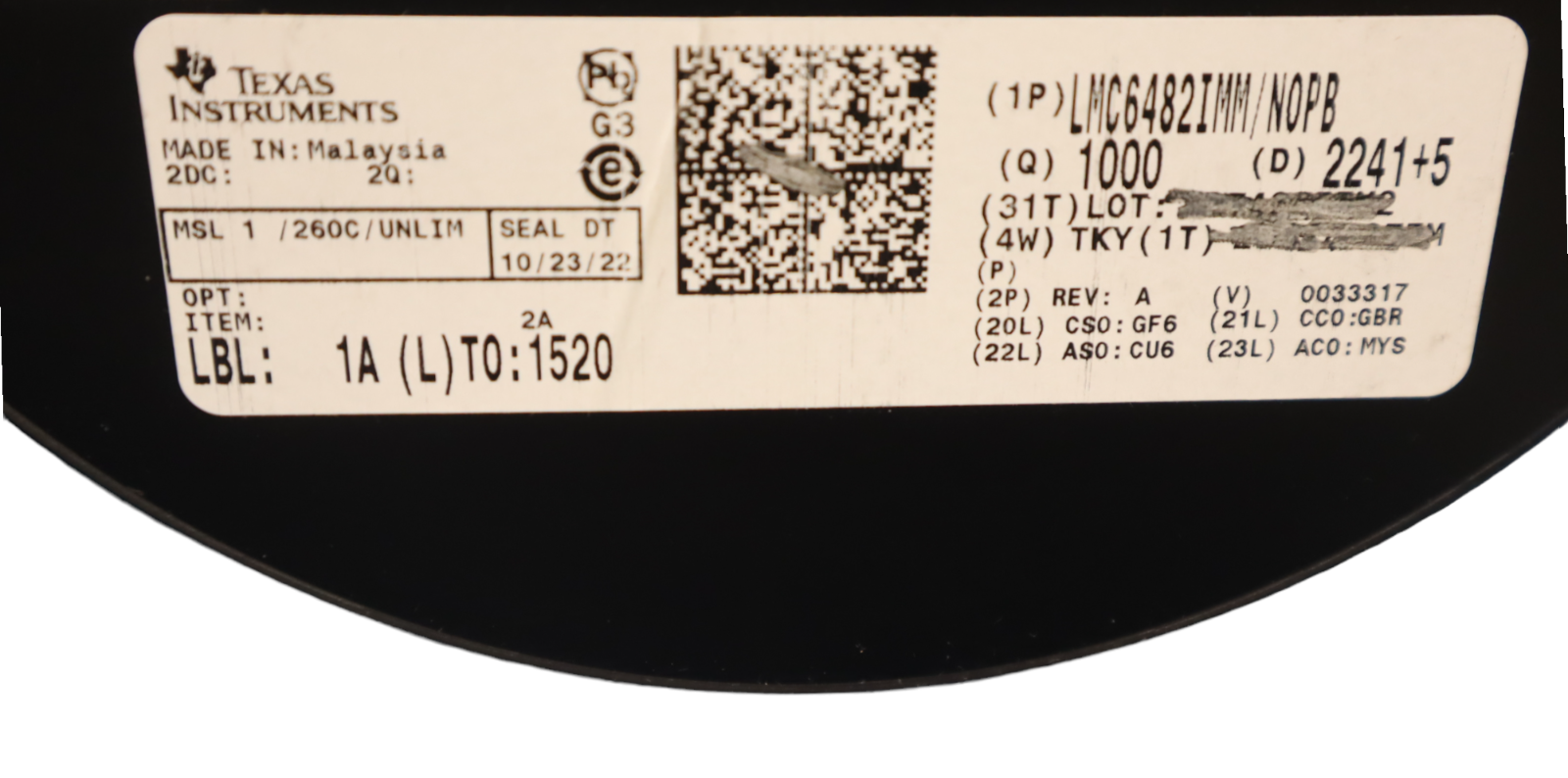

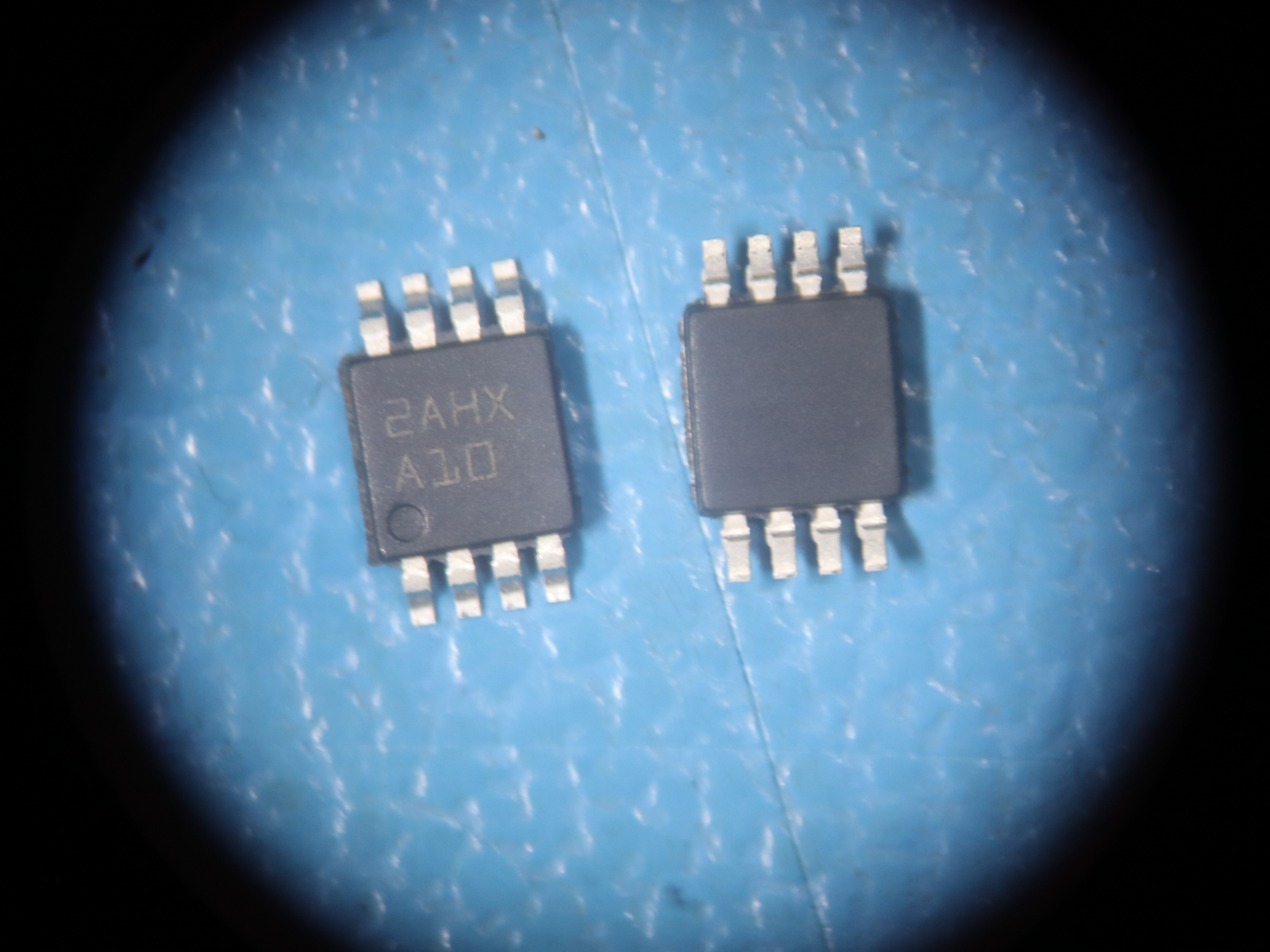

TI # LMC6482IMM/NOPB - CMOS Rail-to-Rail Dual Operational Amplifier (Lot of 10)

TI LMC6482IMM/NOPB - Ultra-low Bias Current, Precision CMOS Rail-to-Rail Input and Output Dual Operational Amplifier

Current Special - Cut Tape Lot 10 pcs & Free Shipping


About This Item:

Product Attribute Attribute Value
Manufacturer: Texas Instruments
Product Category: Operational Amplifiers - Op Amps
RoHS: Details
Mounting Style: SMD/SMT
Package / Case: VSSOP-8
Number of Channels: 2 Channel
Supply Voltage - Max: 15.5 V
GBP - Gain Bandwidth Product: 1.5 MHz
Output Current per Channel: 30 mA
SR - Slew Rate: 1.3 V/us
Vos - Input Offset Voltage: 3 mV
Supply Voltage - Min: 3 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Ib - Input Bias Current: 4 pA
Operating Supply Current: 1.3 mA
Shutdown: No Shutdown
CMRR - Common Mode Rejection Ratio: 82 dB
en - Input Voltage Noise Density: 37 nV/sqrt Hz
Series: LMC6482
Packaging: Reel
Packaging: Cut Tape
Packaging: MouseReel
Brand: Texas Instruments
Height: 1.1 mm
In - Input Noise Current Density: 0.03 pA/sqrt Hz
Input Type: Rail-to-Rail
Length: 3 mm
Operating Supply Voltage: 5 V, 9 V, 12 V, 15 V
Output Type: Rail-to-Rail
Product: Operational Amplifiers
Product Type: Op Amps - Operational Amplifiers
PSRR - Power Supply Rejection Ratio: 65 dB
Pack Quantity: 10
Subcategory: Amplifier ICs
Supply Type: Single
Technology: CMOS
Voltage Gain dB: 116.47 dB
Width: 3 mm
Unit Weight: 0.000935 oz



Description:

The LMC6482 device provides a common-mode range that extends to both supply rails. This rail-to-rail performance combined with excellent accuracy, due to a high CMRR, makes this device unique among rail-to-rail input amplifiers. The device is an excellent choice for systems, such as data acquisition, that require a large input signal range. The LMC6482 is also an excellent upgrade for circuits using limited common-mode range amplifiers, such as the TLC272 and TLC277. Maximum dynamic signal range is provided in low voltage and single supply systems by the rail-to-rail output swing of the LMC6482. The rail-to-rail output swing is maintained for loads down to 600 Ω of the device. Specified low-voltage characteristics and low power dissipation make the LMC6482 a great choice for battery-operated systems.
