TI# LM2576HVT-ADJ/NOPB - Lot 10 pcs at $8.00 each - DC 2101. Conv DC-DC. TO-220
TI# LM2576HVT-ADJ/NOPB - Lot 10 pcs at $8.00 each - DC 2101. Conv DC-DC. TO-220
Regular price
$76.99
Regular price
$0.00
Sale price
$76.99
Unit price
/
per
33 in stock
Couldn't load pickup availability

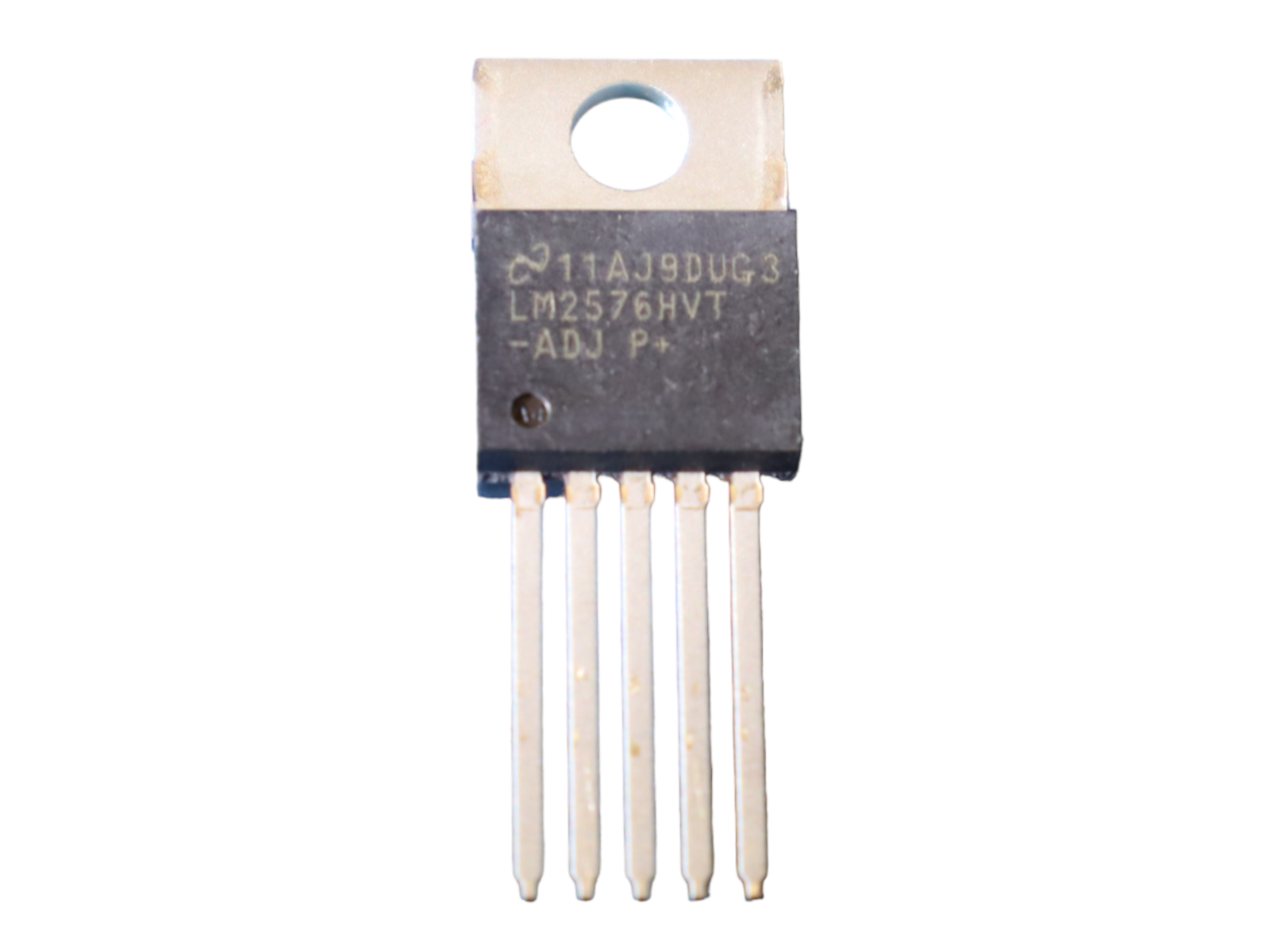

TI# LM2576HVT-ADJ/NOPB IC Voltage Regulator - Conv DC-DC 4V to 60V Step Down Single-Out 1.23V to 57V 3A 5-Pin(5+Tab) TO-220 Tube
Current Special - Lot 10 MOQ pcs at $8.00 each & Free Shipping
About This Item:
Product Attribute Attribute Value
Manufacturer: Texas Instruments
Product Category: Switching Voltage Regulators
RoHS: Yes
Mounting Style: Through Hole
Package / Case: TO-220-5
Topology: Buck
Output Voltage: 1.23 V to 57 V
Output Current: 3 A
Number of Outputs: 1 Output
Input Voltage, Min: 4 V
Input Voltage, Max: 63 V
Quiescent Current: 5 mA
Switching Frequency: 52 kHz
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 125 C
Series: LM2576HV
Packaging: Tube
Brand: Texas Instruments
Input Voltage: 4 V to 63 V
Operating Supply Current: 5 mA
Product Type: Switching Voltage Regulators
Shutdown: Shutdown
Pack Quantity: 10
Subcategory: PMIC - Power Management ICs
Supply Voltage - Min: 4 V
Tradename: SIMPLE SWITCHER
Type: Step Down Voltage Regulator
Unit Weight: 0.068079 oz
Description:

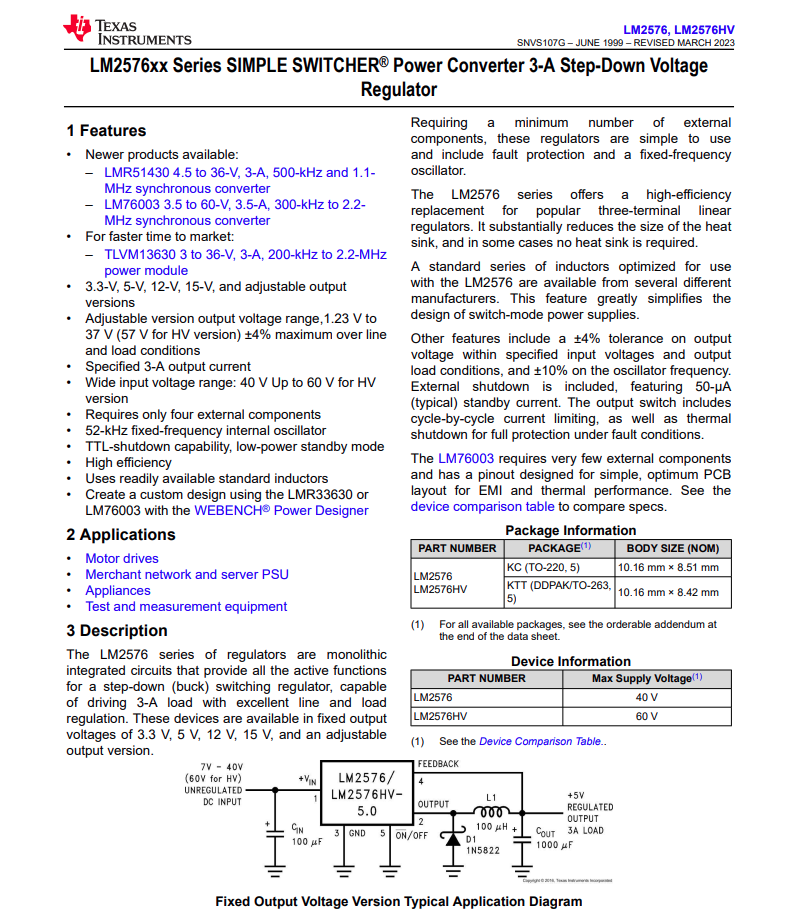

The LM2576 series offers a high-efficiency replacement for popular three-terminal linear regulators. It substantially reduces the size of the heat sink, and in some cases no heat sink is required. A standard series of inductors optimized for use with the LM2576 are available from several different manufacturers. This feature greatly simplifies the design of switch-mode power supplies. Other features include a ±4% tolerance on output voltage within specified input voltages and output load conditions, and ±10% on the oscillator frequency. External shutdown is included, featuring 50-μA (typical) standby current. The output switch includes cycle-by-cycle current limiting, as well as thermal shutdown for full protection under fault conditions.
