Samtec TST-105-01-S-D (10-Pack) Wire-To-Board Connector (4 Sides) HDR 10 POS 2.54mm Solder ST Top Entry Thru-Hole
Samtec TST-105-01-S-D (10-Pack) Wire-To-Board Connector (4 Sides) HDR 10 POS 2.54mm Solder ST Top Entry Thru-Hole
170 in stock
Couldn't load pickup availability

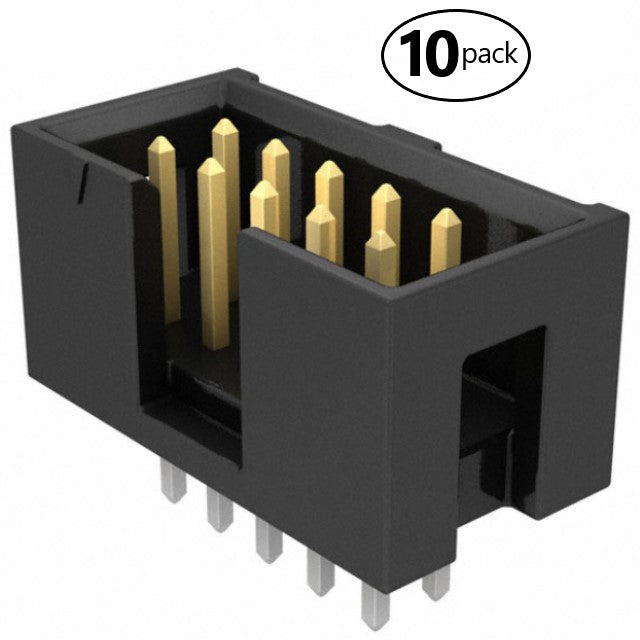

Samtec TST-105-01-S-D Wire-To-Board Connector (4 Sides) HDR 10 POS 2.54mm Solder ST Top Entry Thru-Hole (10-Pack)
Product Technical Specifications
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8536.69.40.40 |
| Automotive | No |
| PPAP | No |
| Type | Shrouded Header (4 Sides) |
| Gender | HDR |
| Number of Contacts | 10 |
| Number of Rows | 2 |
| Termination Method | Solder |
| Terminal Pitch (mm) | 2.54 |
| Body Orientation | Straight |
| Polarization Type | Center Slot |
| Row Spacing (mm) | 2.54 |
| Maximum Current Rating (A) | 3.4/Contact |
| Maximum Voltage Rating | 600VDC|425VAC |
| Insulation Resistance (MOhm) | 5000 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 125 |
| Packaging | Bulk |
| Product Length (mm) | 20.32 |
| Product Depth (mm) | 9.27 |
| Product Height (mm) | 9.27 |
| Tail Length (mm) | 2.92 |
| Mounting | Through Hole |

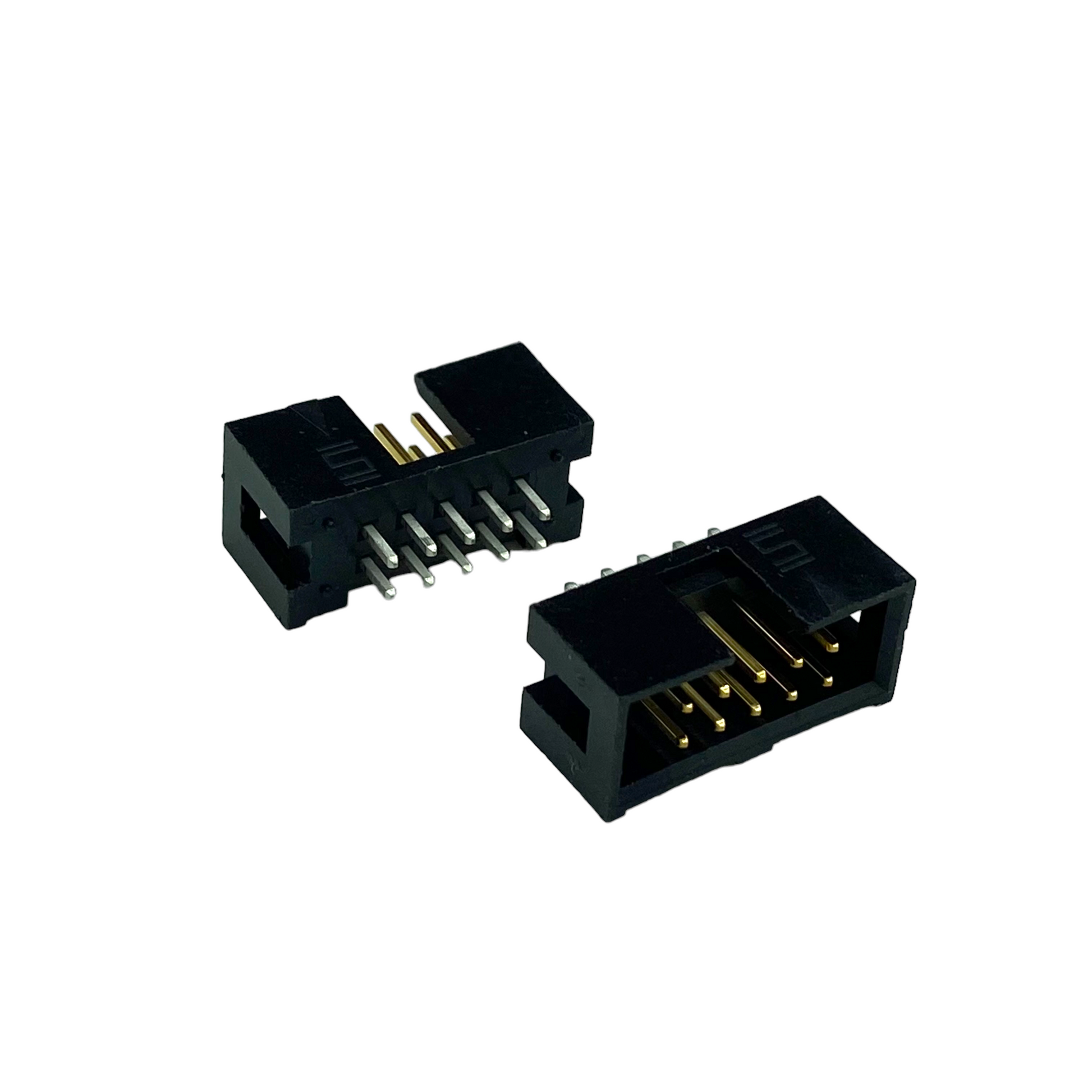

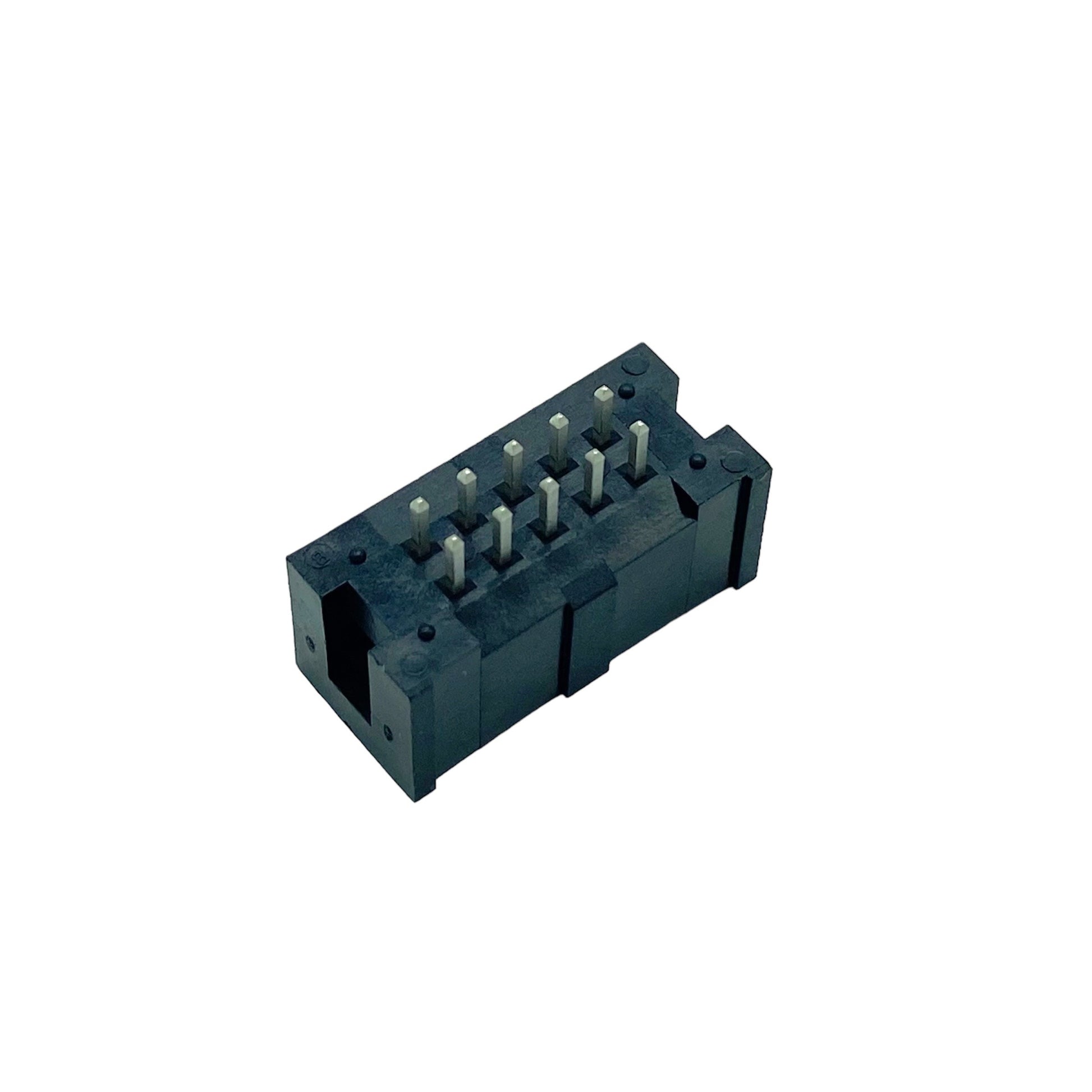

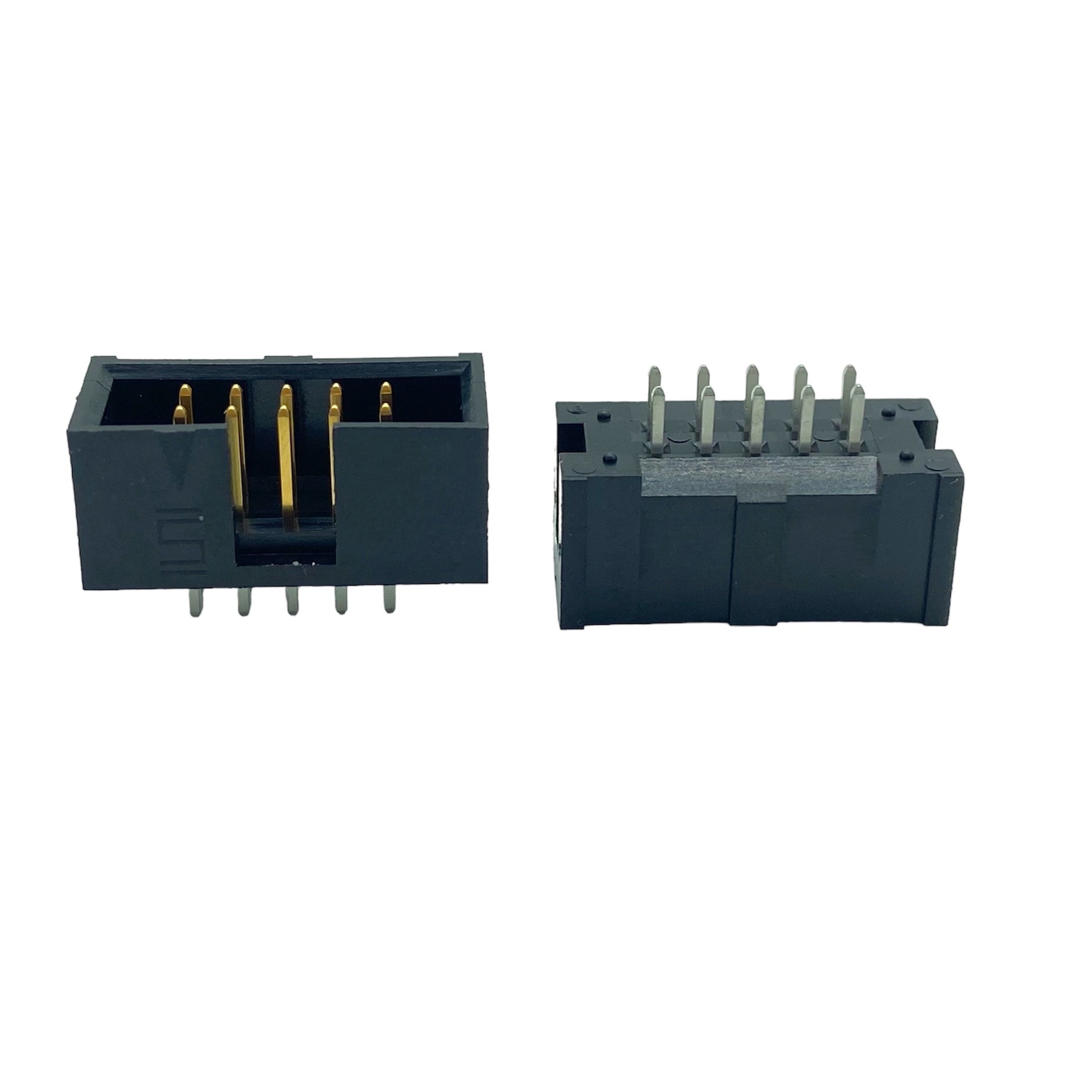

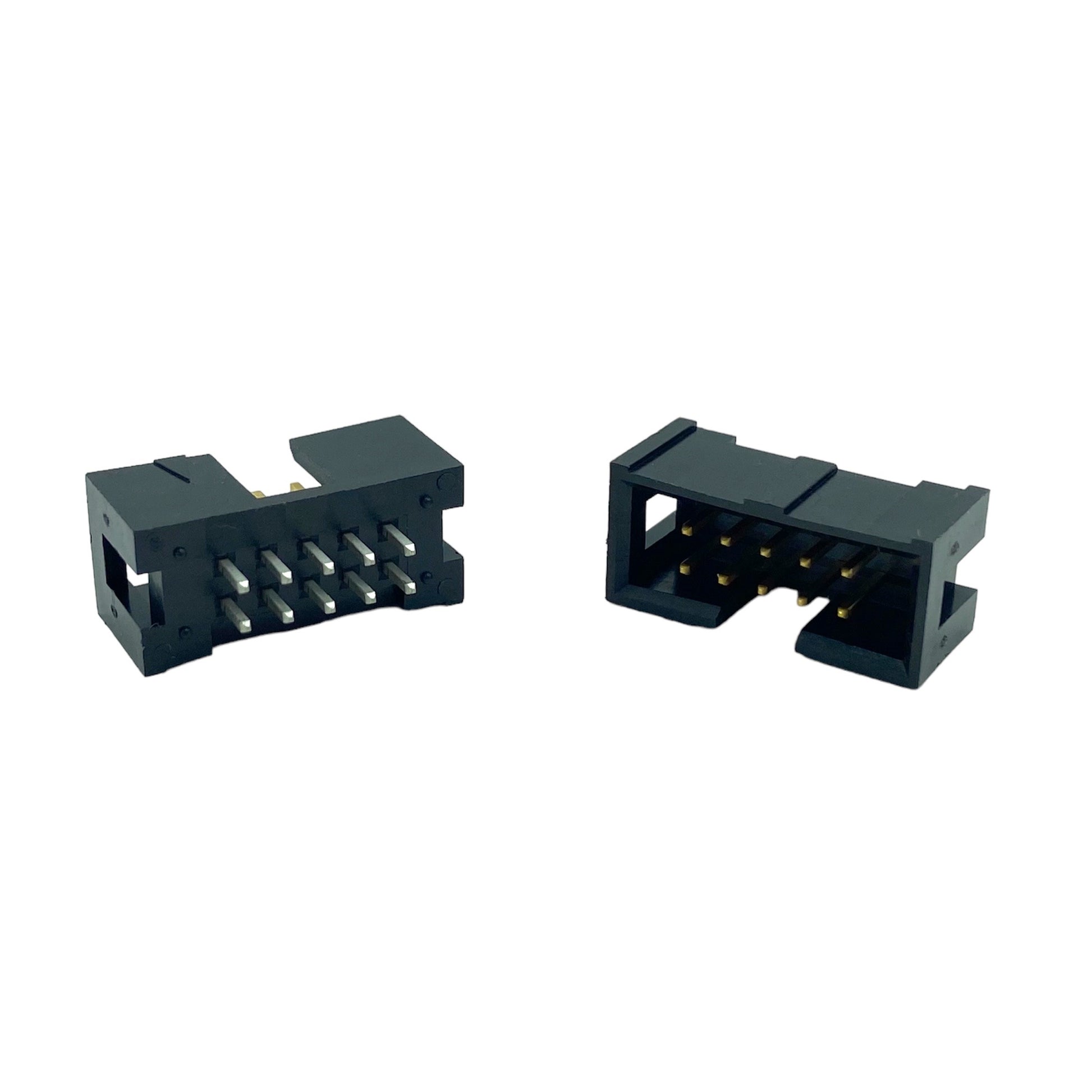

Easily mount this shrouded TST-105-01-S-D header connector from Samtec onto your PCB project to support a variety of physical configuration options. This HDR connector's 10 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. This is a 2-row connector. It has a straight body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 3.4 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This product is 20.32 mm long, 9.27 mm tall and 9.27 mm deep. TST-105-01-S-D is housed in black polyester. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method.
