RF-Lambda Amplifier RLNA17G25GB 17GHZ TO 27GHZ, 38DB GAIN, P1DB +28 Current Special - Free Shipping & Volume Pricing
About This Item: The RLNA17G25GB from RF-Lambda is a RF Amplifier with Frequency 15 to 27 GHz, Gain 33 dB, Noise Figure 2.5 dB, Output Power 29 to 30 dBm, Output Power 0.79 to 1 W. Tags: Low Noise Amplifier. More details for RLNA17G25GB can be seen below.
Product Details

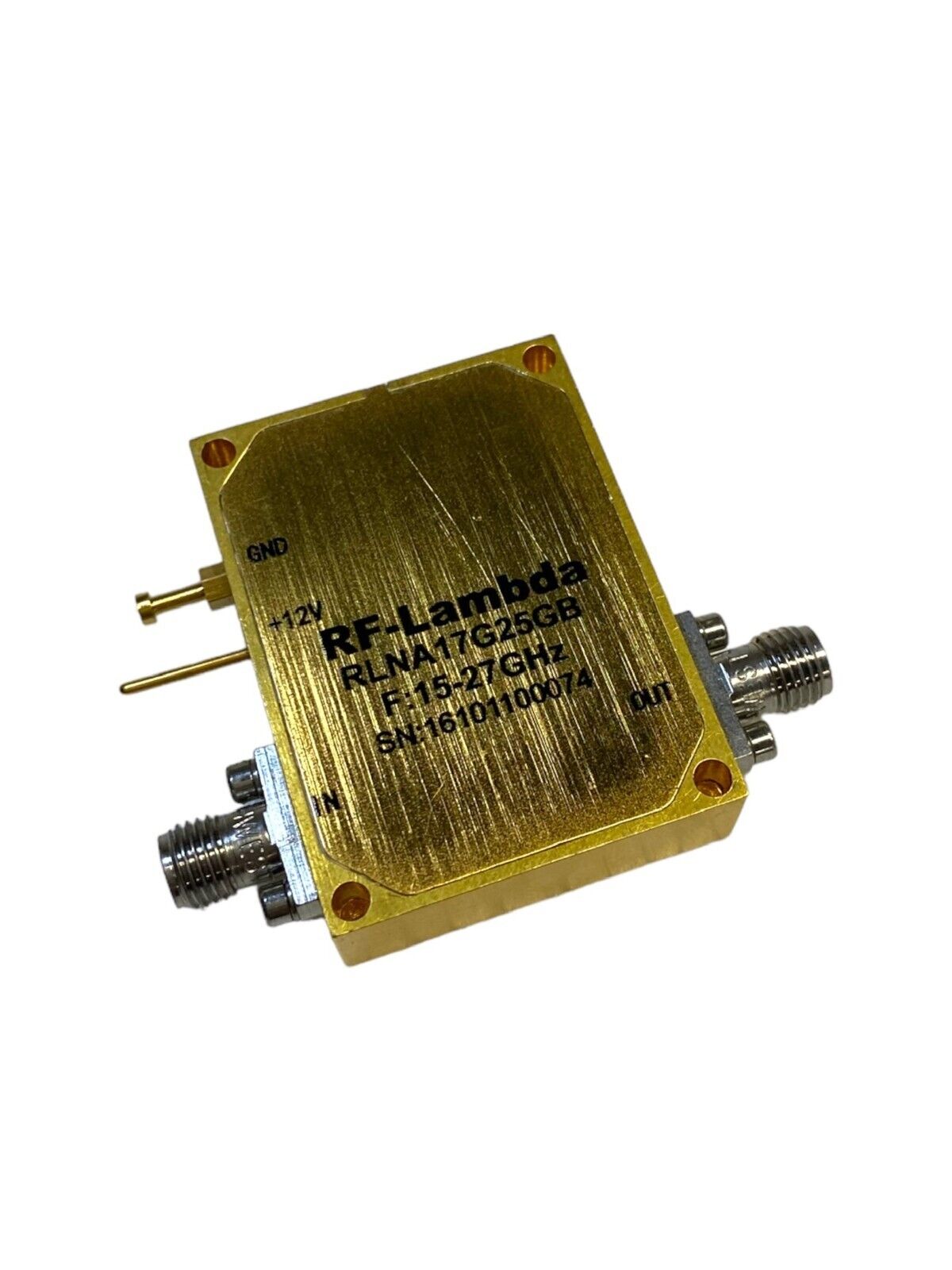

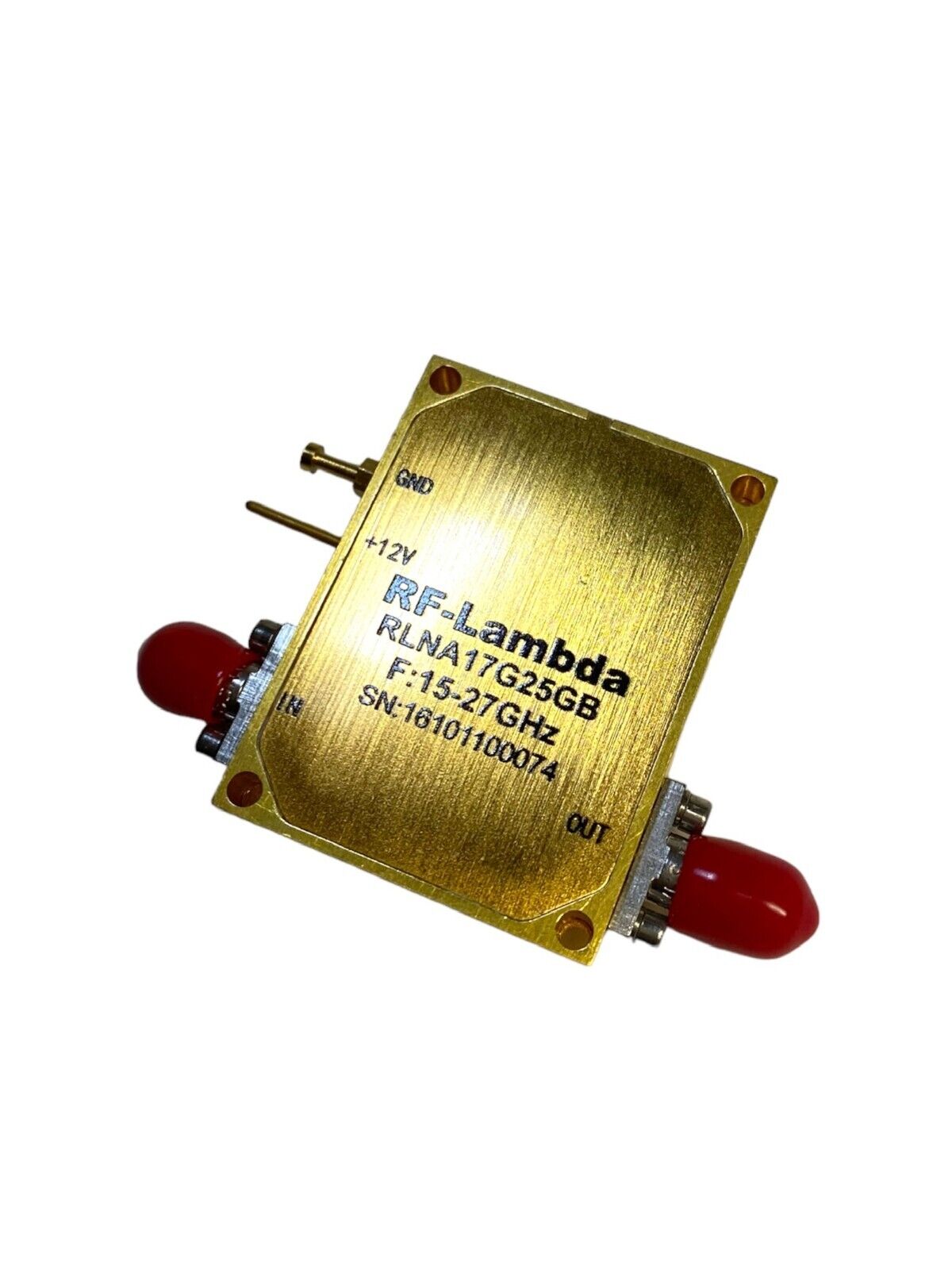

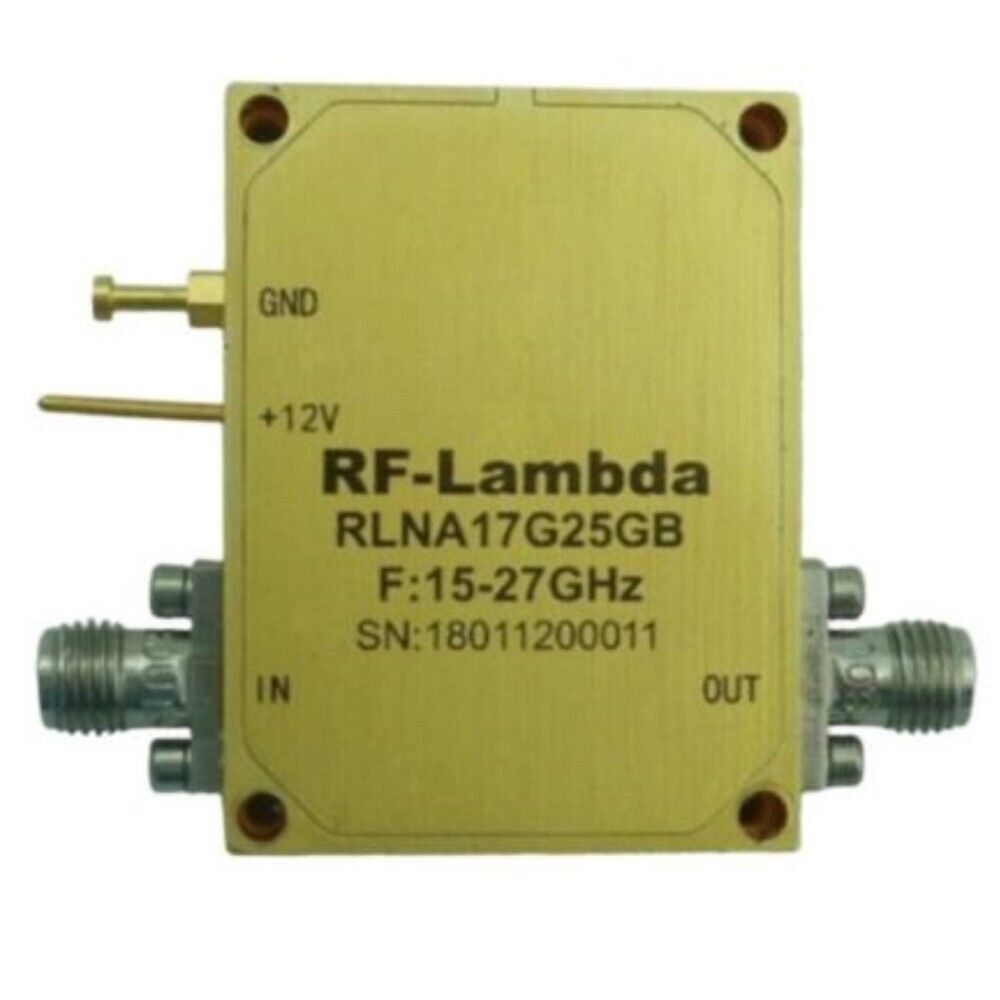

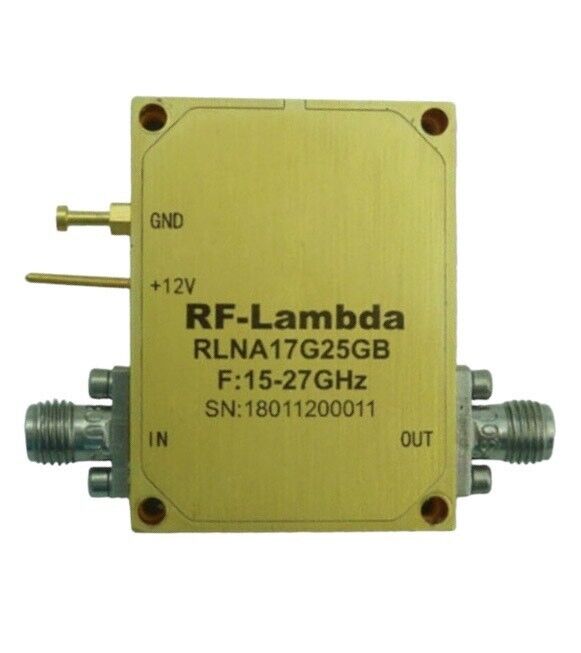

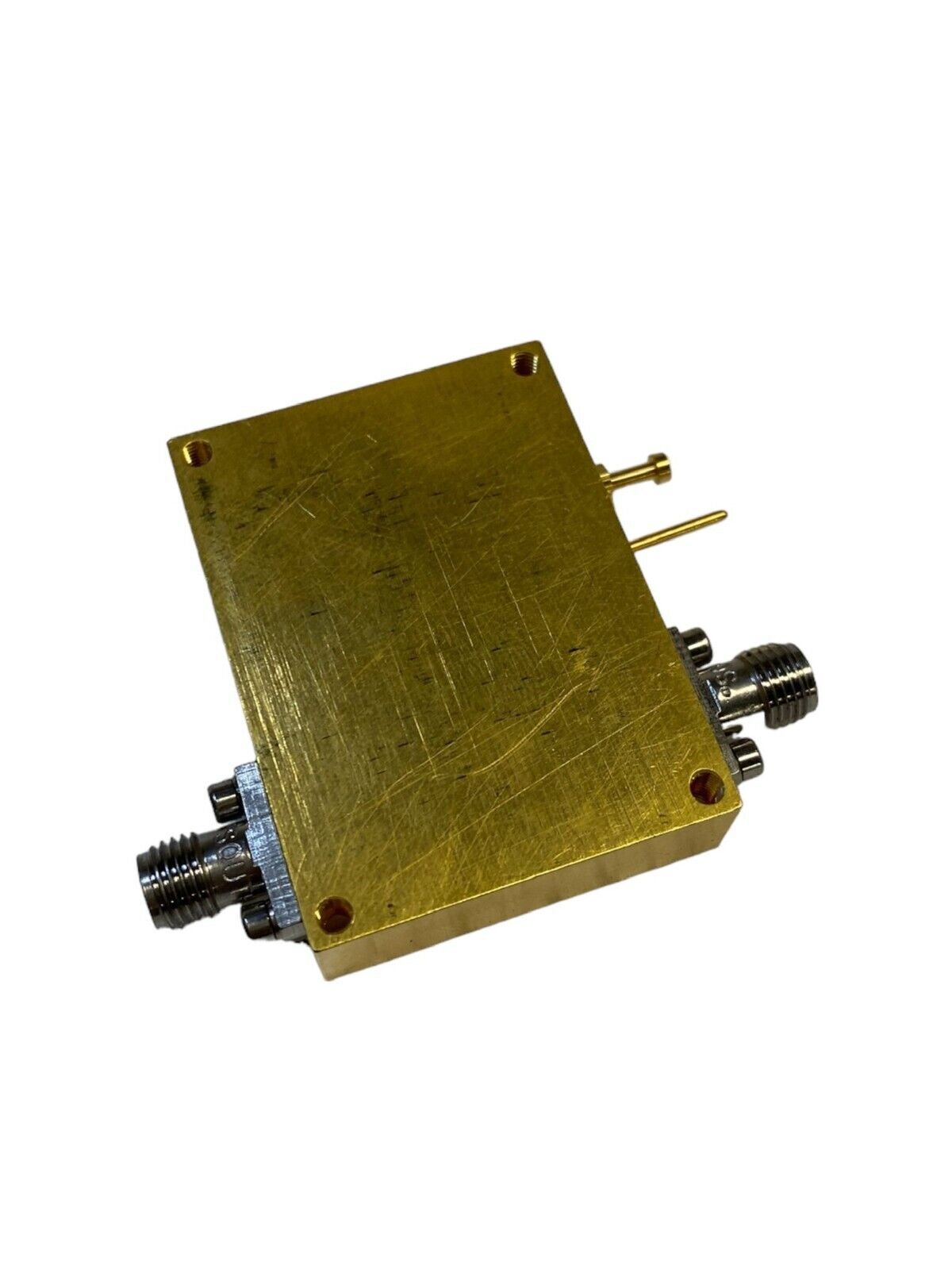

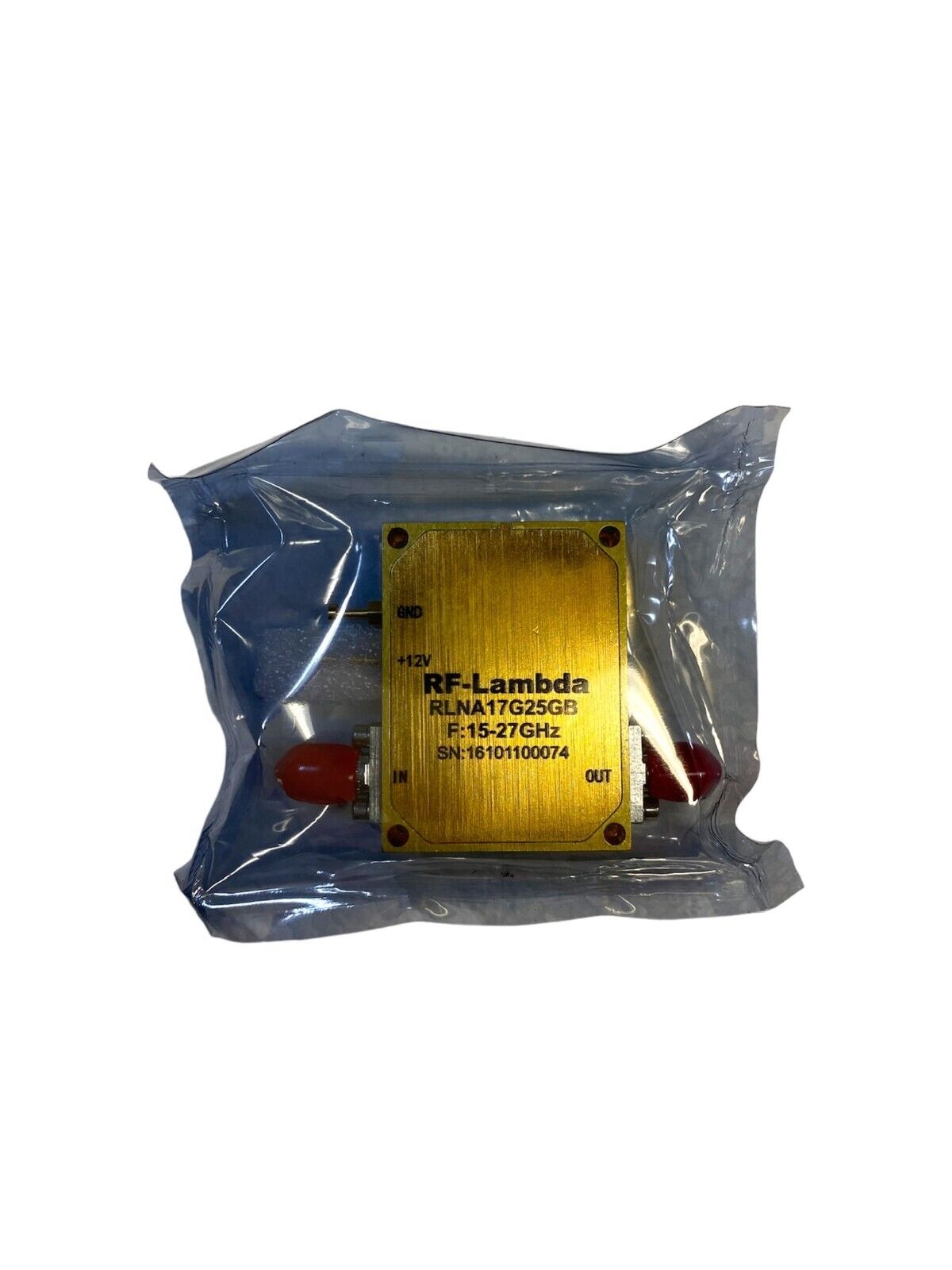

* Part Number RLNA17G25GB * Manufacturer RF-Lambda * Description Wide Band Low Noise Amplifier 15GHz~27GHz
General Parameters

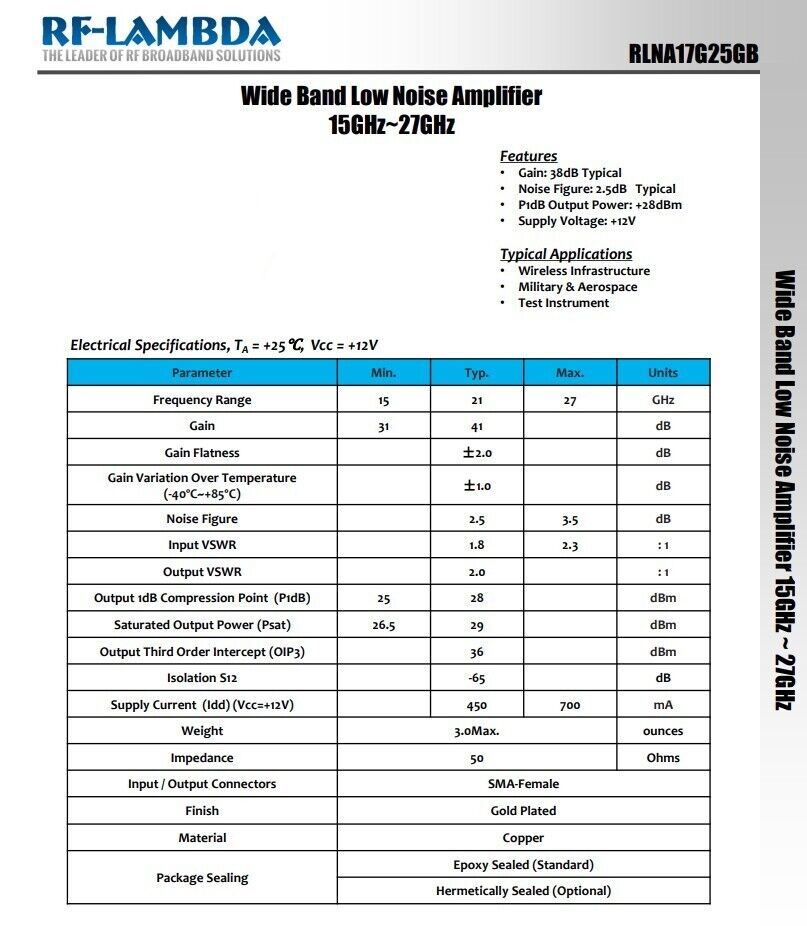

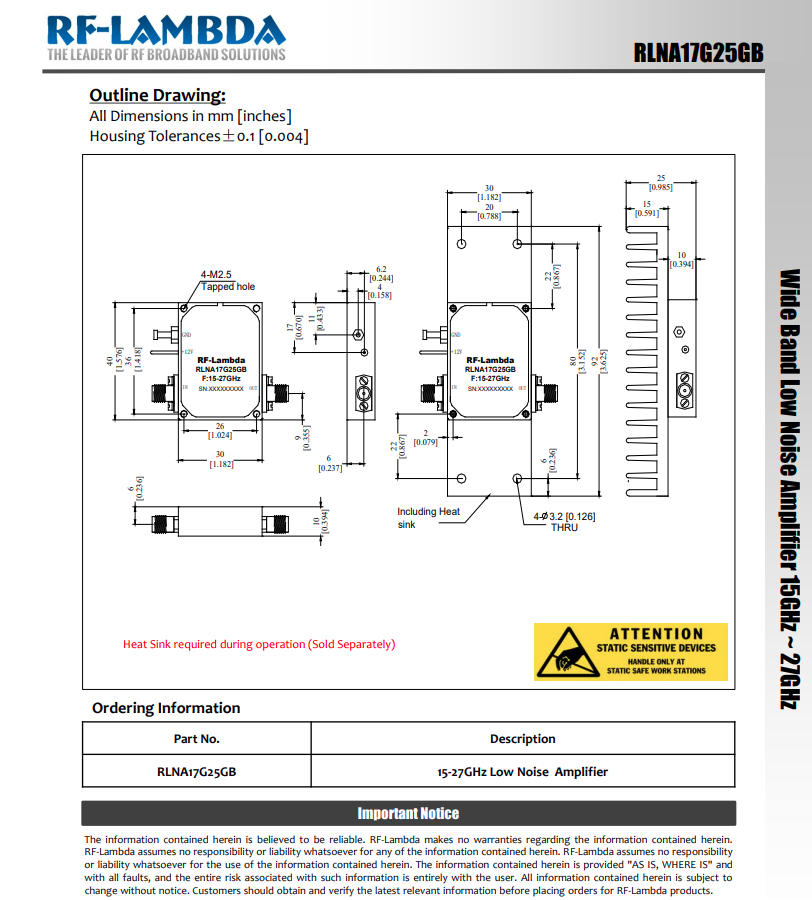

* Type Low Noise Amplifier * Configuration Module with Connector * Standards Supported VSAT * Industry Application Wireless Infrastructure, Aerospace & Defense, Test & Measurement, SATCOM * Frequency 15 to 27 GHz * Gain 33 dB * Noise Figure 2.5 dB * Output Power 29 to 30 dBm * Output Power 0.79 to 1 W * P1dB 29 dBm * P1dB 0.794 W * IP3 38 dBm * IP3 6.31 W * Saturated Power 30 dBm * Saturated Power 1 W * Impedance 50 Ohms * Pulsed/CW CW * Supply Voltage 12 V * Current Consumption 500 mA * Dimensions 1.18x 1.58 x 0.394 Inches * Connectors SMA, SMA - Female * Input Connector SMA - Female * Output Connector SMA - Female
Shipping Information:
All orders placed are processed within 1 business day. Shipping is free within the United States For international shipping - Shipping rates are calculated based on your address. Please note there are additional taxes and duties charged by your country's customs, those charges are not collected by us.
Return Policy:
A purchased item is eligible for a return for up to 30 days from the date of delivery and it must be sent back in the same condition as you received it.
Additional terms:
The item cannot have been used.
Customers are held responsible for the safe return of the item, which includes shipping.
Additional costs for the return of the purchase are to be paid by the customer.
Buy with Confidence:
At Out Front Inc, we've been providing top-quality electronic products since 1984. Because we prioritize quality assurance, we have 100% positive feedback from our customers. Our expertise includes re-selling obsolete/EOL and long-lead-time parts to manufacturers around the world. We are committed to providing the highest level of customer service and we are available to answer any questions you may have. We invite you to visit our website at www. Outfrontinc .com and shop with confidence.
