NKK Switches

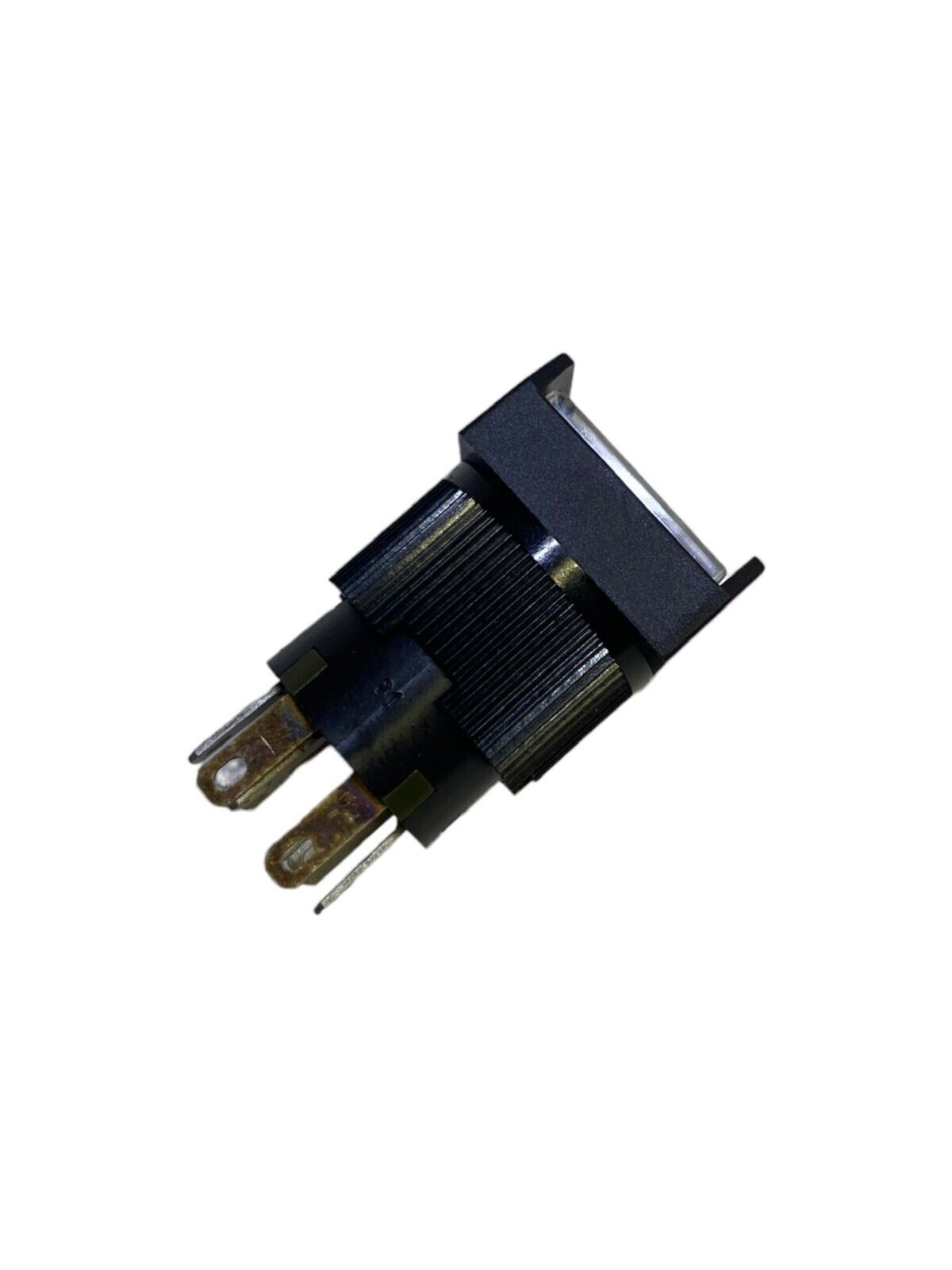

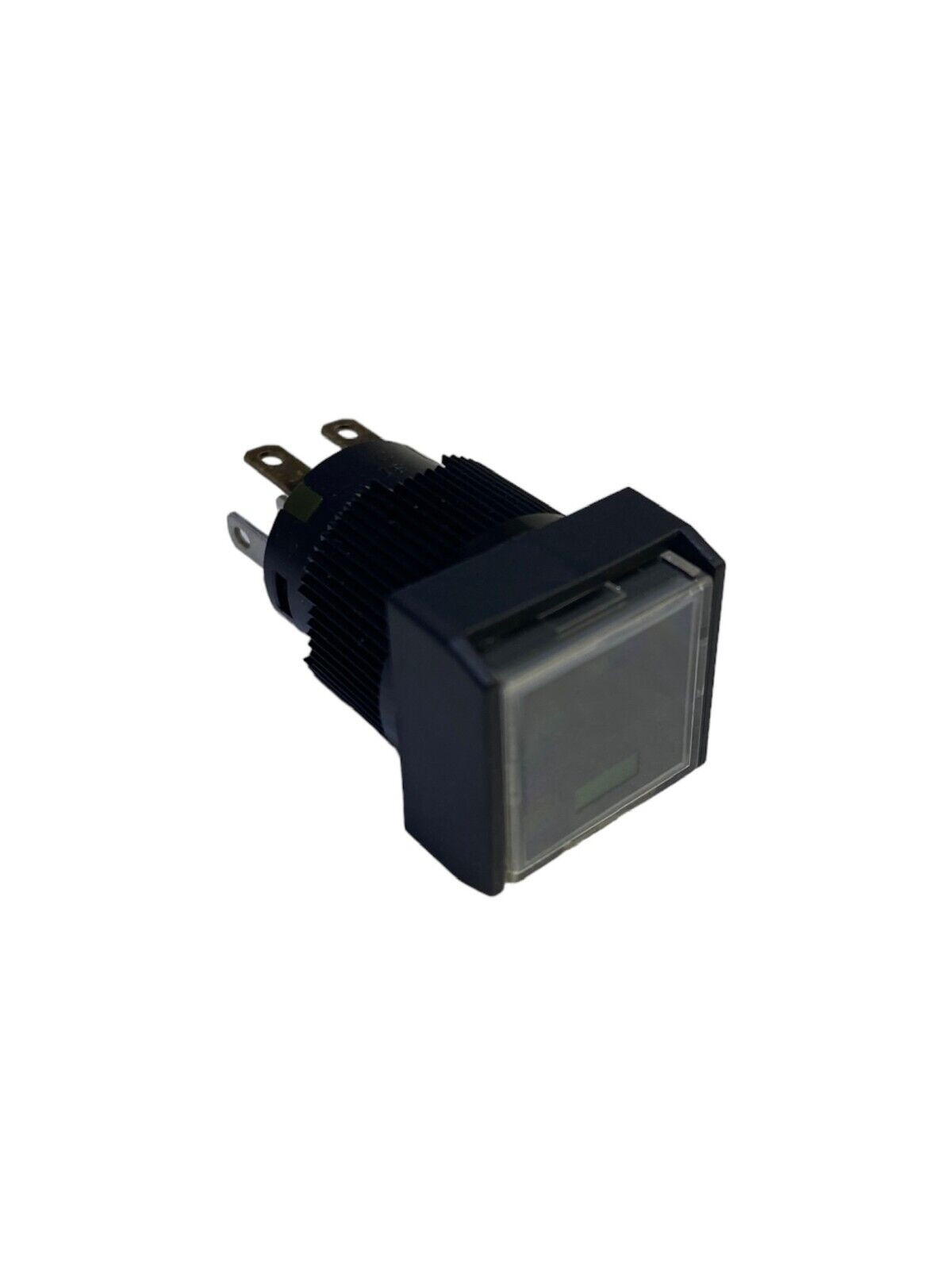

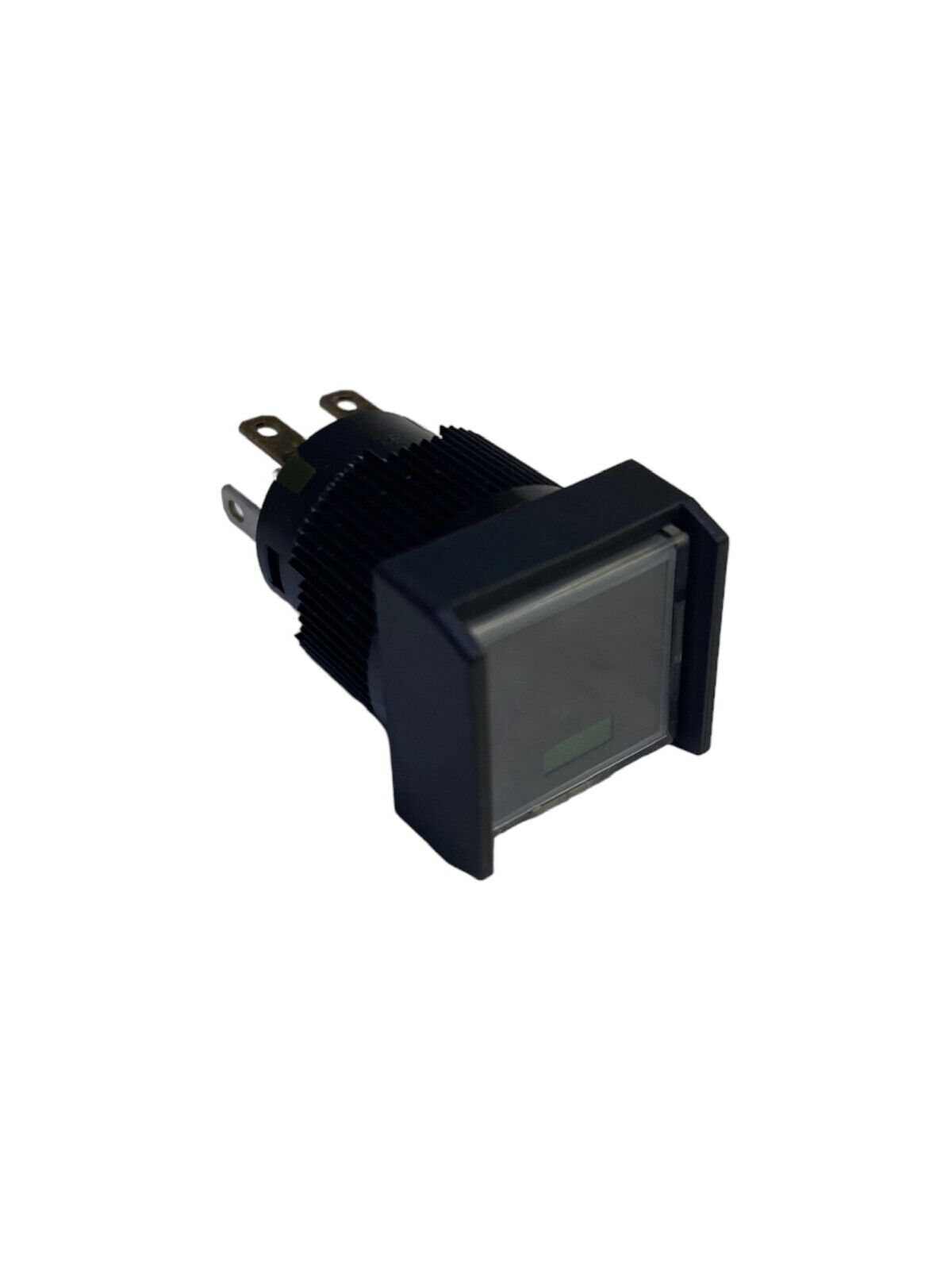

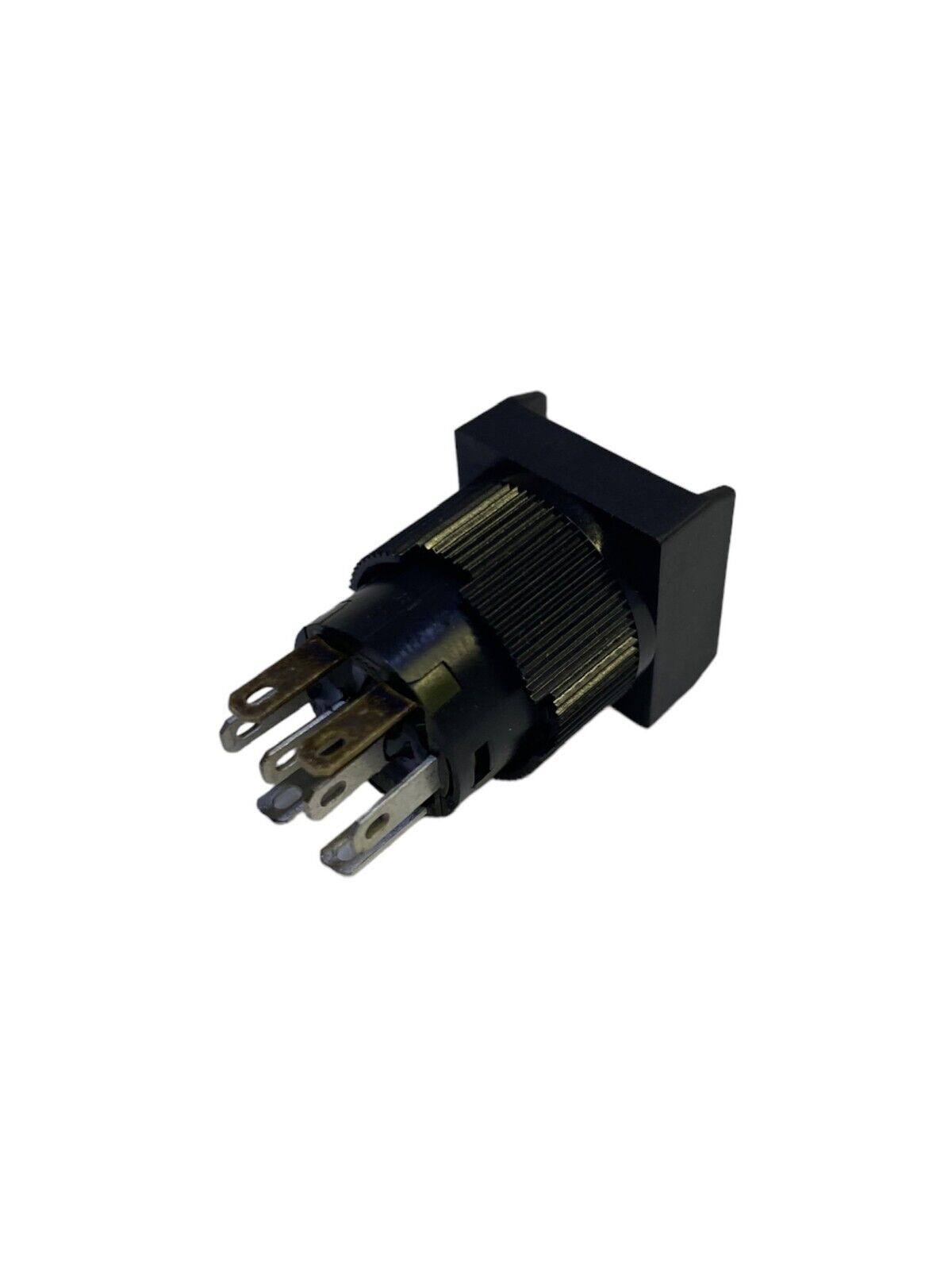

NKK SWITCHES YB26SKW01-1F12-JA-RO Pushbutton SPDT Standard (5-Pack)
NKK SWITCHES YB26SKW01-1F12-JA-RO Pushbutton SPDT Standard (5-Pack)
Regular price
$81.99
Regular price
$0.00
Sale price
$81.99
Unit price
/
per
15 in stock
Couldn't load pickup availability
NKK SWITCHES YB26SKW01-1F12-JA-RO Pushbutton SPDT Standard (5-Pack)
Current Special - Free Shipping & Volume Pricing
About This Item:
TYPE
DESCRIPTION
SELECT
Mounting Type
Panel Mount, Front
Type
Standard, Illuminated
Circuit
SPDT
Switch Function
On-On
Current Rating (Amps)
3A (AC/DC)
Voltage Rating - AC
125 V
Voltage Rating - DC
30 V
Actuator Type
Square, Button
Actuator Marking
No Marking
Color - Actuator/Cap
Clear (White Filter/Diffuser)
Illumination Type, Color
LED, Blue
Illumination Voltage (Nominal)
3.6 VDC
Termination Style
Solder, Quick Connect - 0.110" (2.8mm)
Ingress Protection
-
Features
Tactile Feedback
Panel Cutout Dimensions
Circular - 16.00mm Dia
Operating Temperature
-25°C ~ 50°C
Mechanical Life
200,000 Cycles
Electrical Life
100,000 Cycles
Description:
NKK SWITCHES YB26SKW01-1F12-JA-RO Pushbutton SPDT Standard (5-Pack)
