Switch has raised panel stand-off option for consistent panel height
Toggle Switch has an Easy-Start bushing to ensure proper alignment
The Switch has a panel-to-cover O-ring seal for increased protection
Hardware Included

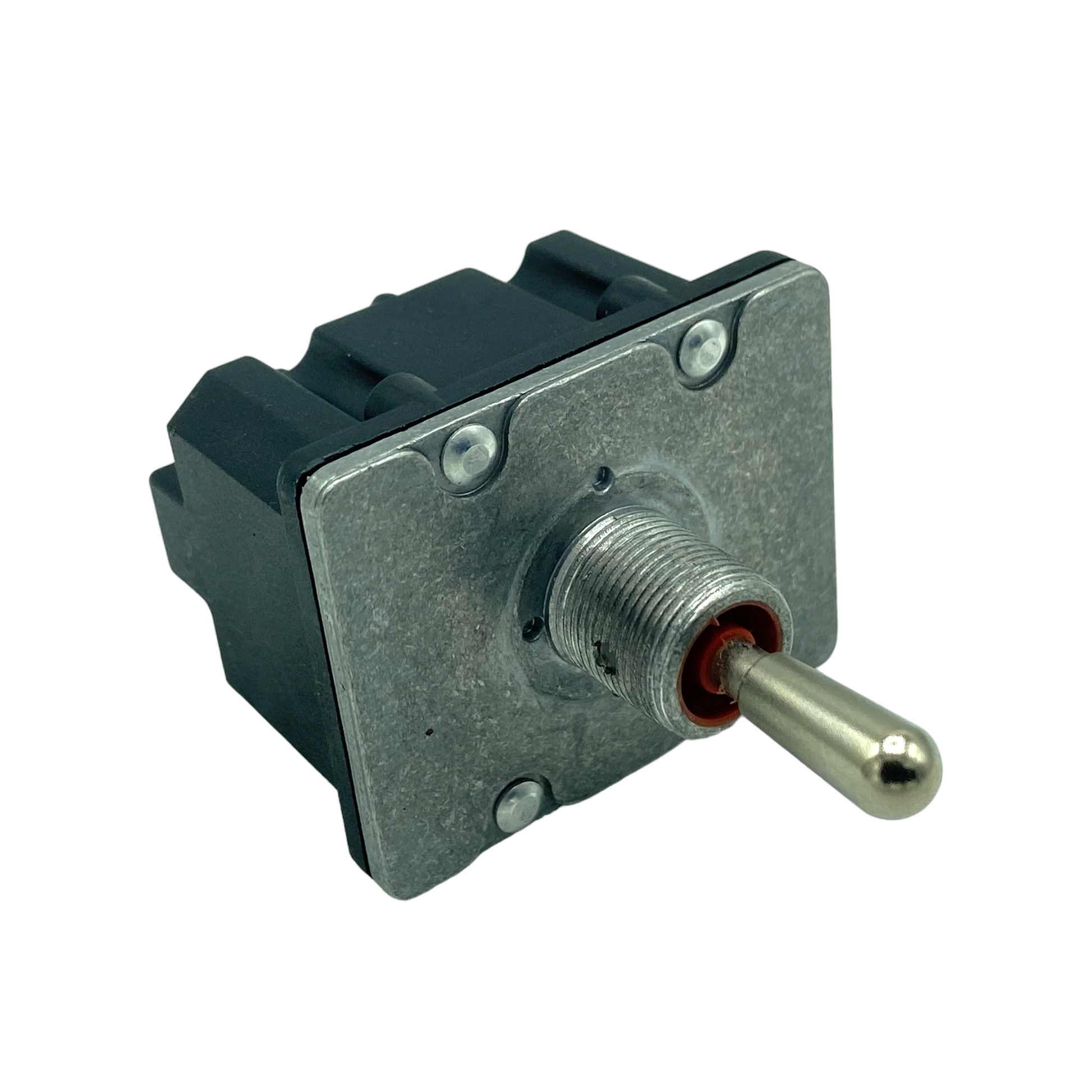

Toggle Switches simplify installation and enhance panel appearance while providing a broad range of options for circuitry, sealing, size and style. These rugged, cost-effective switches were originally designed to eliminate the need for behind-panel hardware, to provide uniform panel height, and to provide a unique, universal cover seal, all while providing reliable performance.
SPECIFICATIONS

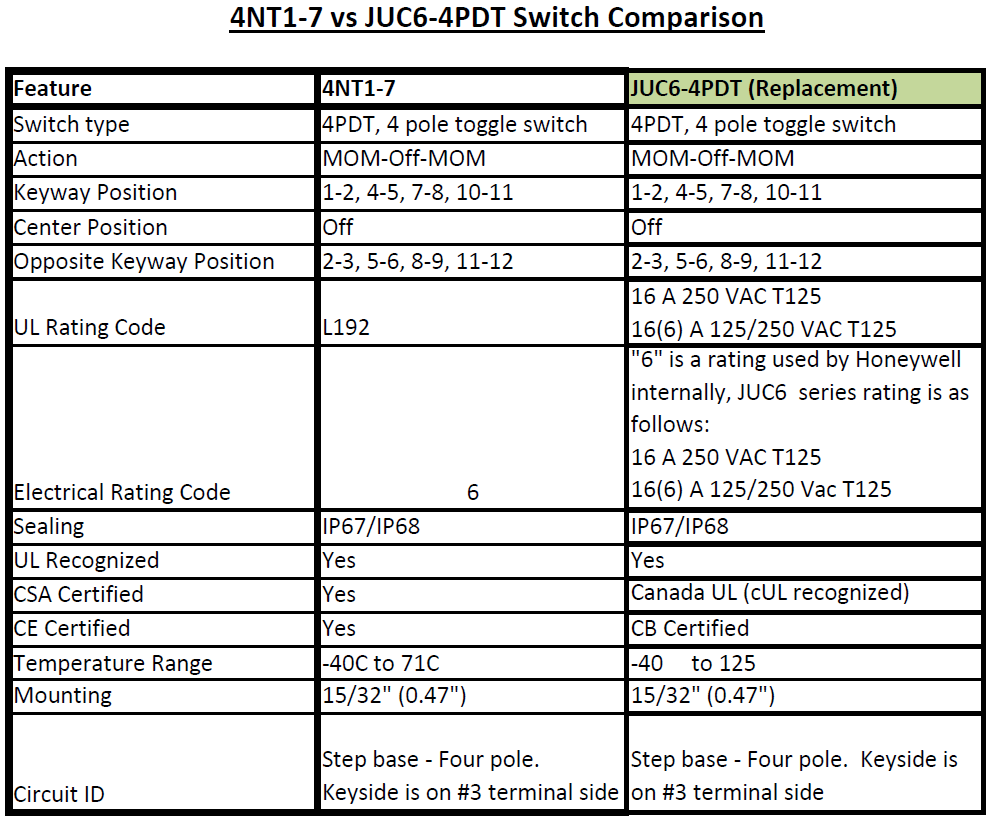

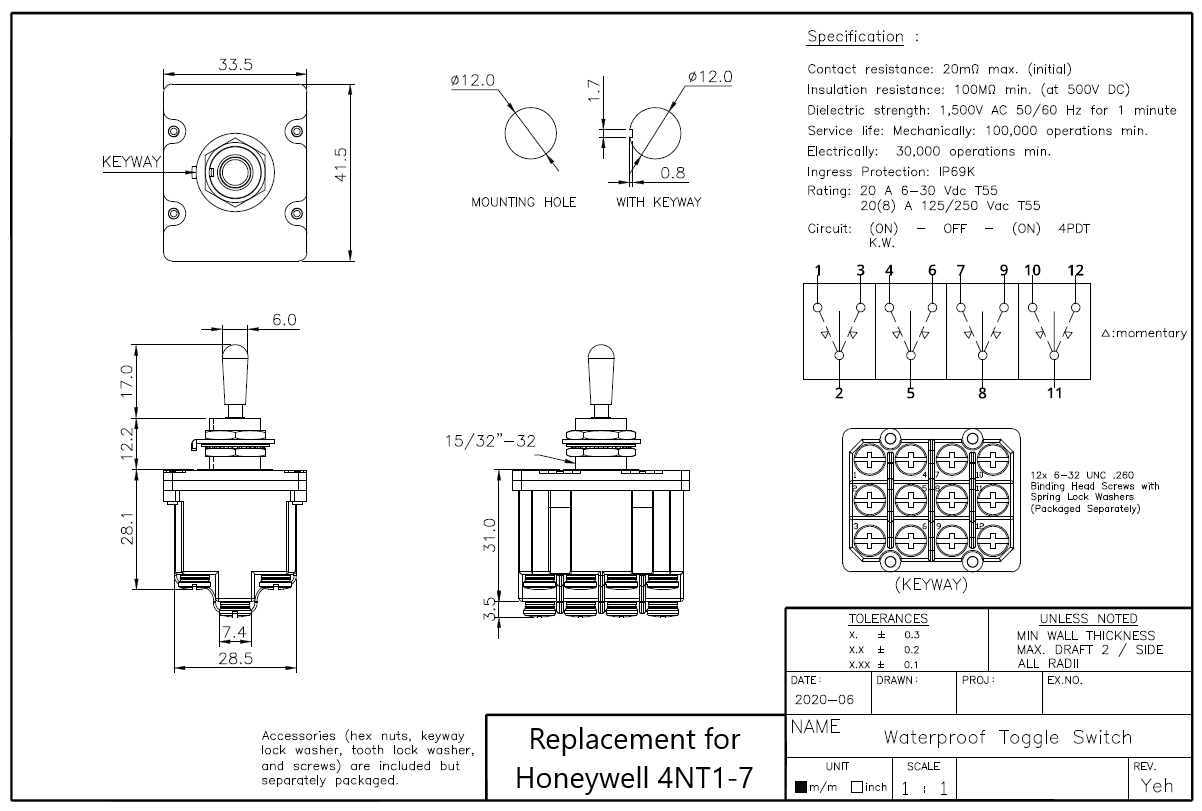

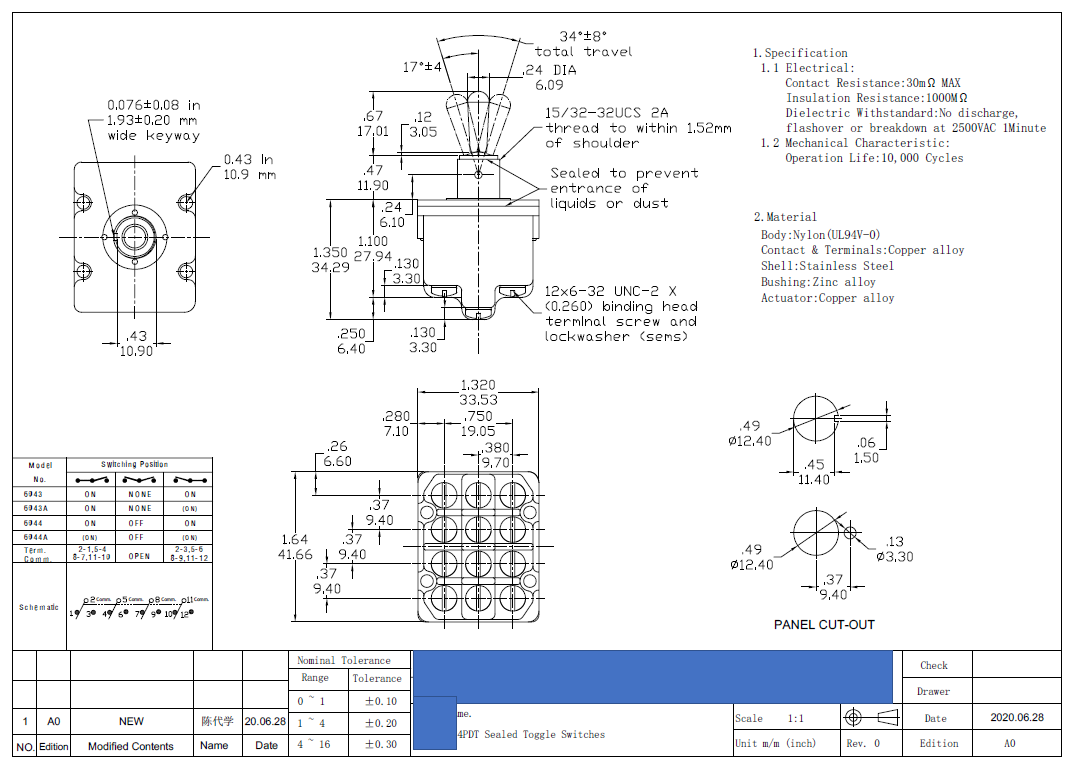

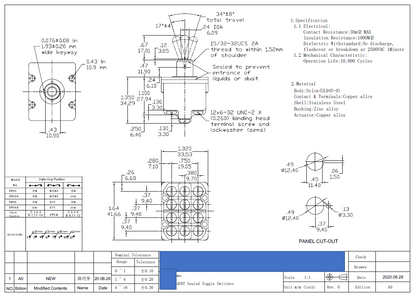

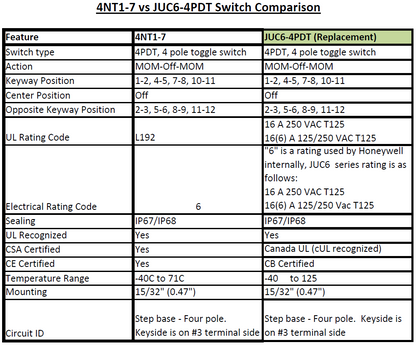

Actuator Type Bat Application Aerial lifts, scissor lifts, truck mounted tele-handlers, and cranes, construction equipment, agriculture equipment, material-handling equipment, factory-floor control units Switch type 4PDT, 4 pole toggle switch ActionMOM-Off-MOM Keyway Position1-2, 4-5, 7-8, 10-11 Center Position Off UL Rating Code 16 A 250 VAC T125 | 16(6) A 125/250 VAC T125 Electrical Rating Code 16 A 250 VAC T125 | 16(6) A 125/250 Vac T125 Sealing IP67/IP68 UL Recognized Yes CSA CertifiedCanada UL (cUL recognized) CE Certified CB Certified Temperature Range -40℃ to 125℃ Mounting 15/32" (0.47") Circuit ID Step base - Four pole. Keyside is on #3 terminal side
