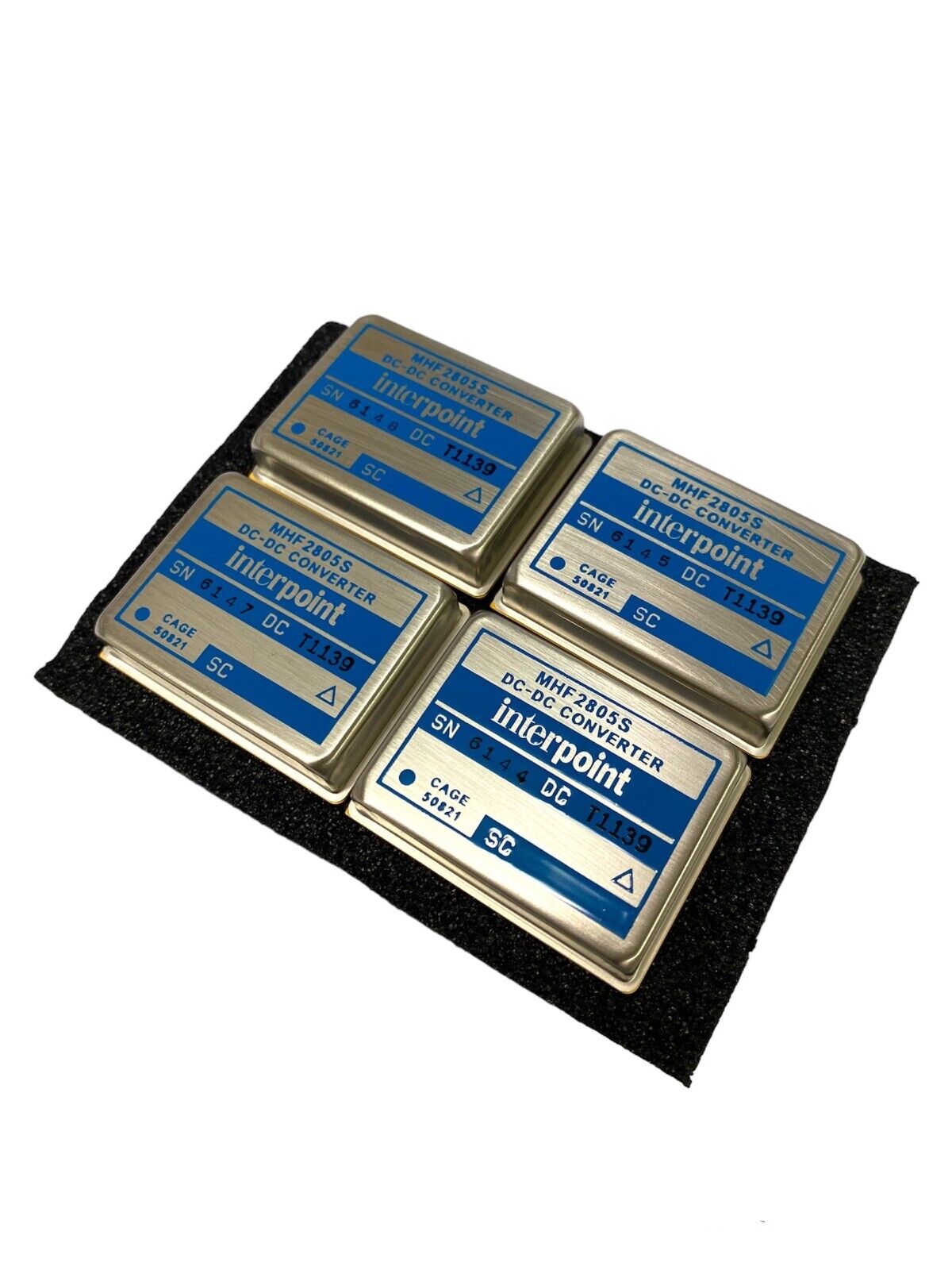

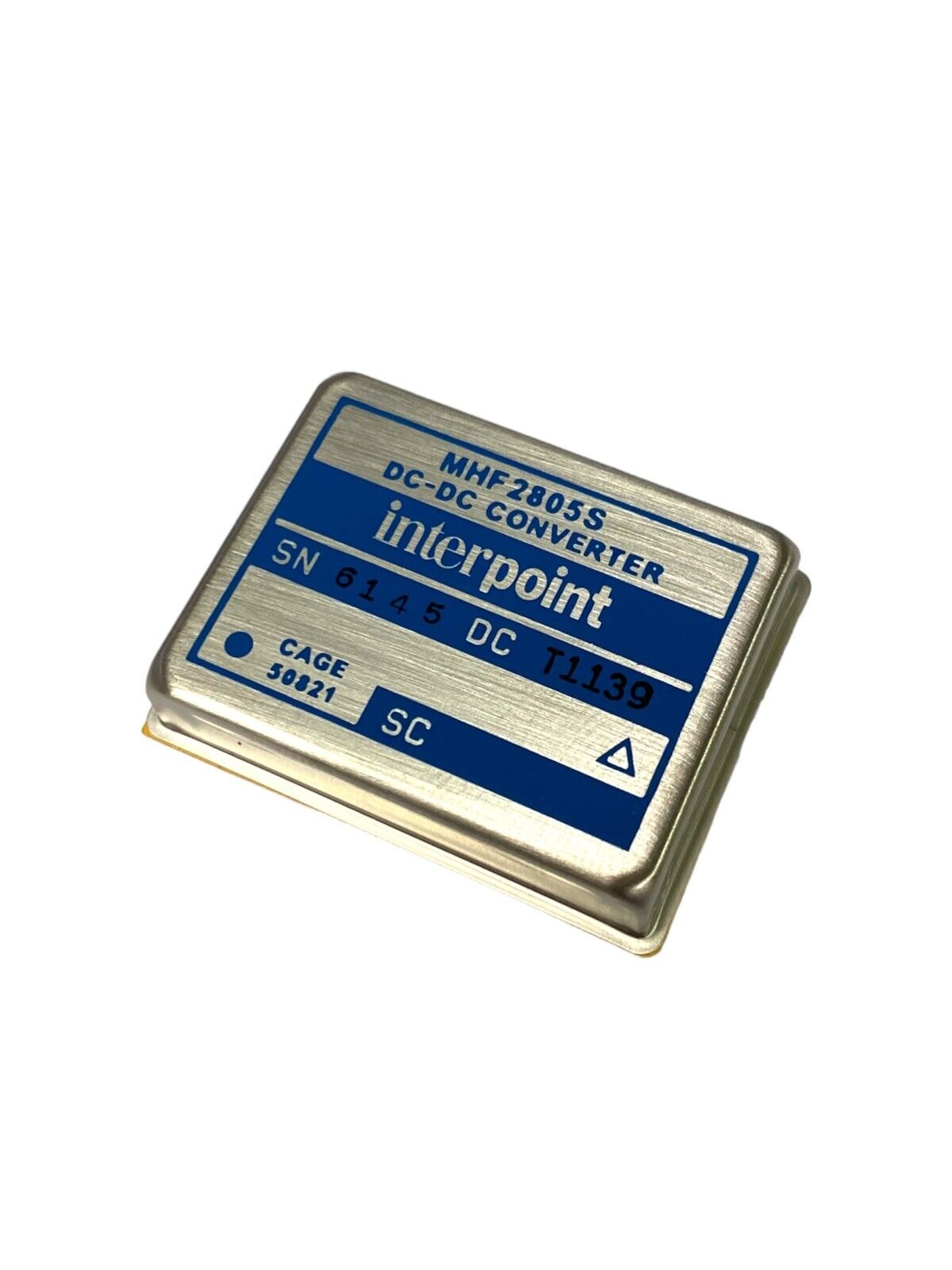

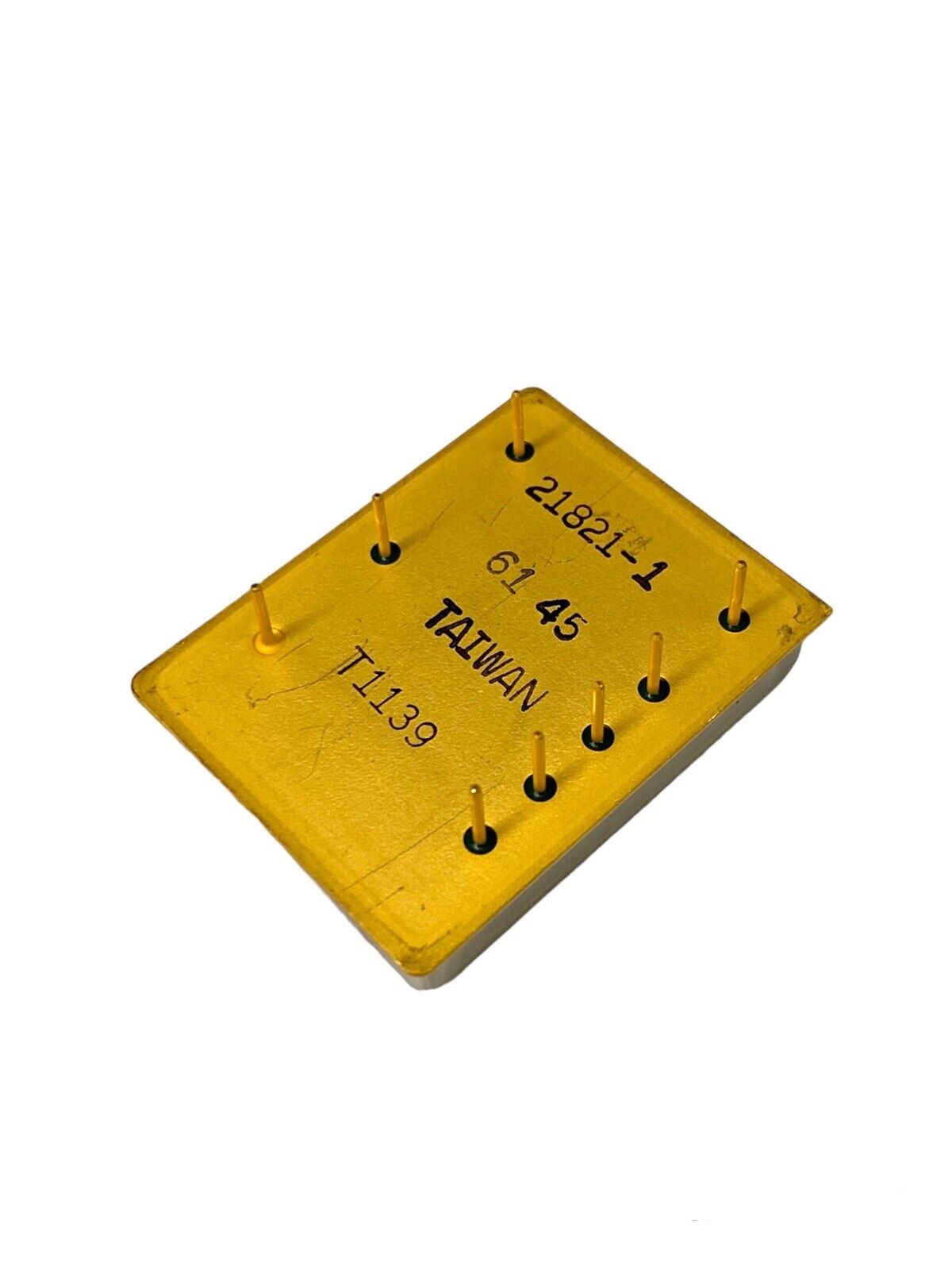

interpoint MHF2805S DC/DC Power Converter Module 10W
interpoint MHF2805S DC/DC Power Converter Module 10W
Regular price
$346.99
Regular price
$0.00
Sale price
$346.99
Unit price
/
per
Low stock: 8 left
Couldn't load pickup availability
interpoint MHF2805S DC/DC Power Converter Module 10W
Current Special - Free Shipping & Volume Pricing
About This Item:
• -55° to +125°C operation
• 16 to 40 VDC input (19 to 40 VDC for 15 volt outputs)
• Fully Isolated
• Optocoupler feedback
• Fixed frequency 600 kHz typical
• Forward converter topology
• 50 V for up to 50 ms transient protection
• Inhibit function
• Indefinite short circuit protection
• Up to 83% efficiency, 22 W/in3
Description:
The MHF Series™ of DC/DC converters offer up to 12 watts of power from single or dual outputs in a single package over the full military temperature range. Thick film hybrid manufacturing technology produces high levels of miniaturization, giving the MHF Series converters a low profile (0.330 inch), small board area (1.65 square inches), and high-power density (22 watt/in3).
The MHF converters are switching regulators which use a quasisquare wave, single ended forward converter design with a nominal switching frequency of 600 kHz. Isolation between input and output circuits is provided with a transformer in the forward power loop and a temperature insensitive optical link in the feedback control loop. Output regulation is accomplished with constant frequency pulse width modulation. Both line and load regulation are typically within 10 mV.
