Glenair 289-015-A Jackpost Kit | HiPer-D & MIL-DTL-24308 D-Sub Connector Hardware | Front Mount
Glenair 289-015-A Jackpost Kit | HiPer-D & MIL-DTL-24308 D-Sub Connector Hardware | Front Mount
Low stock: 2 left
Couldn't load pickup availability

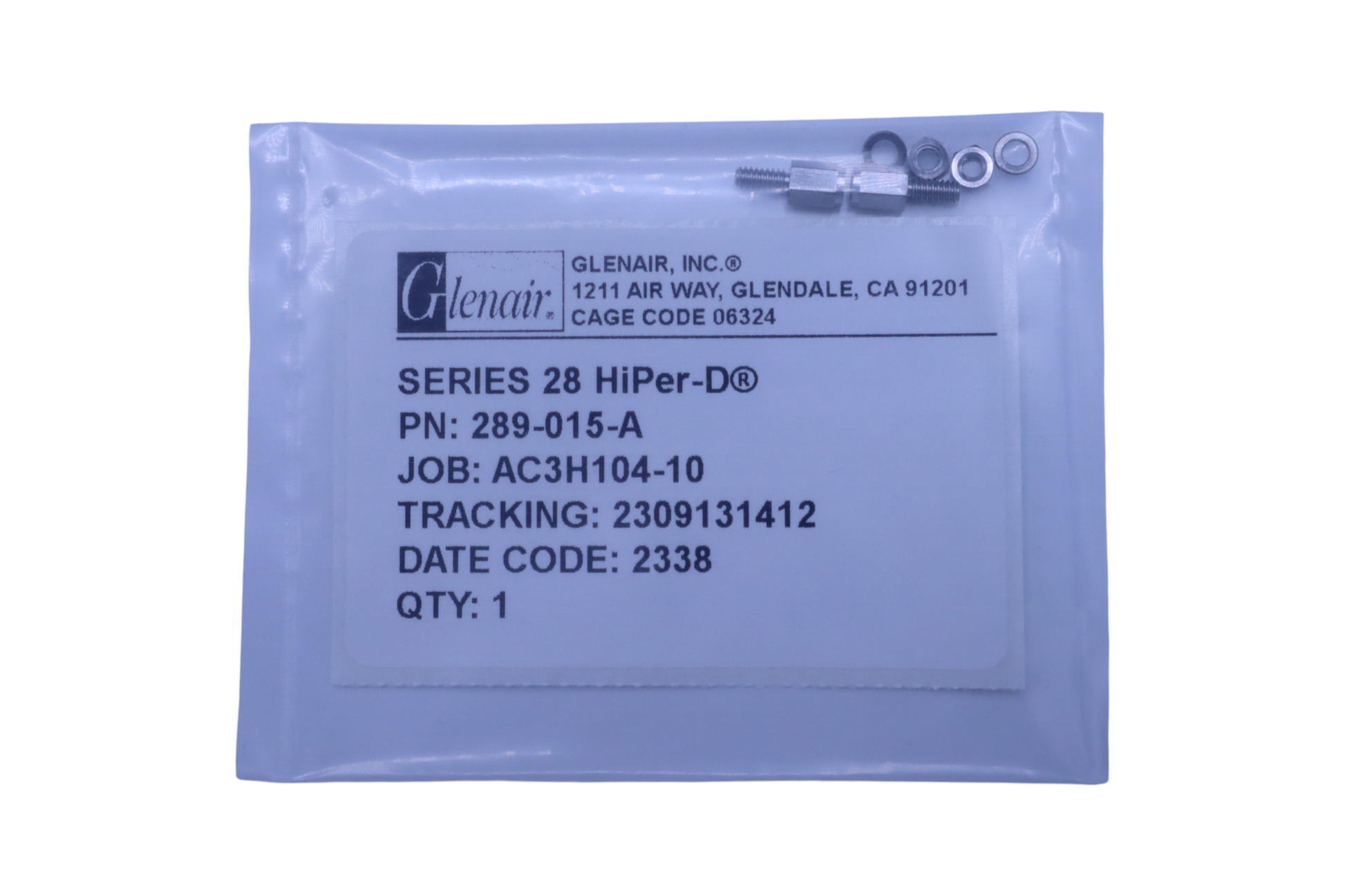

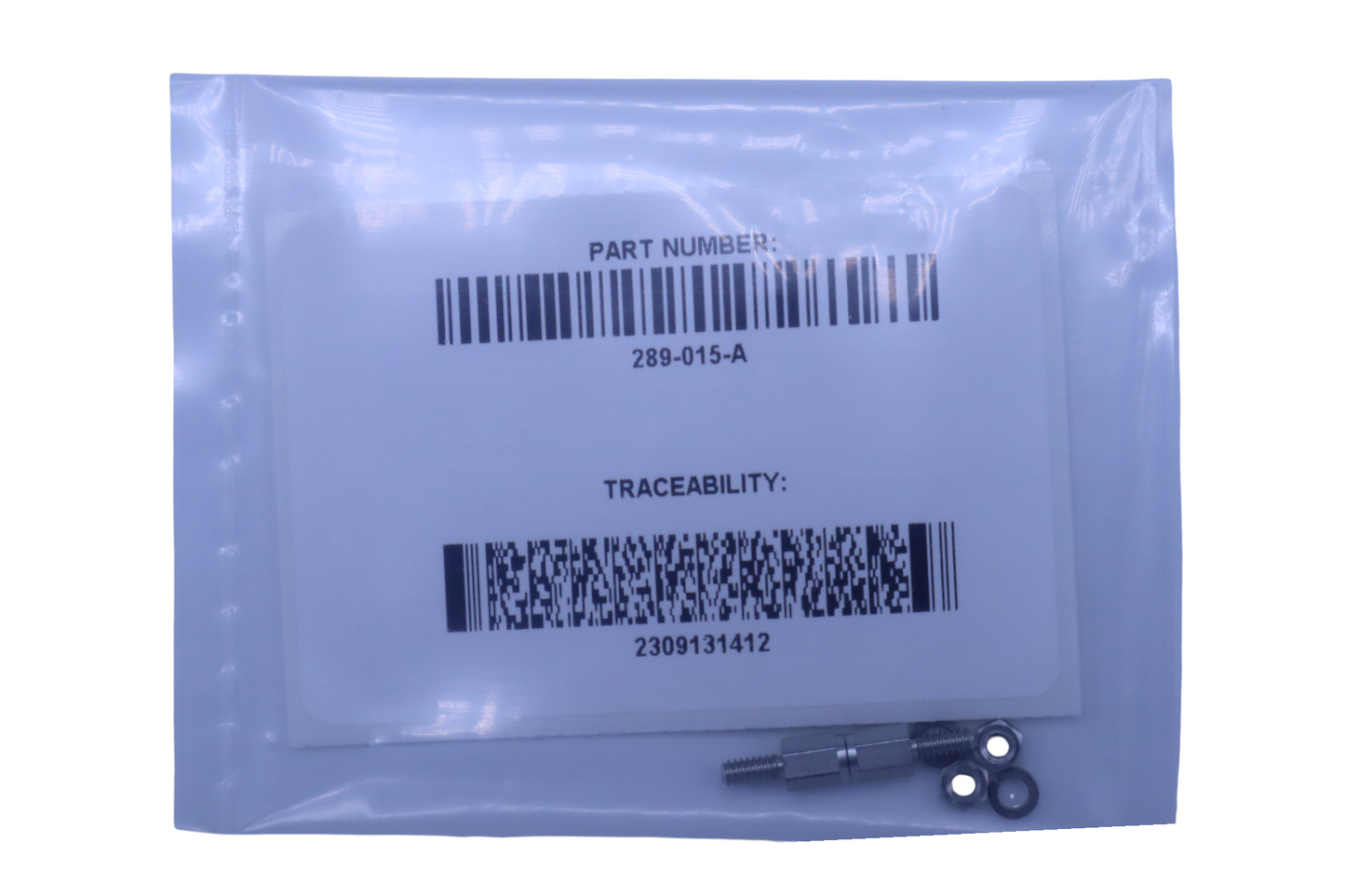

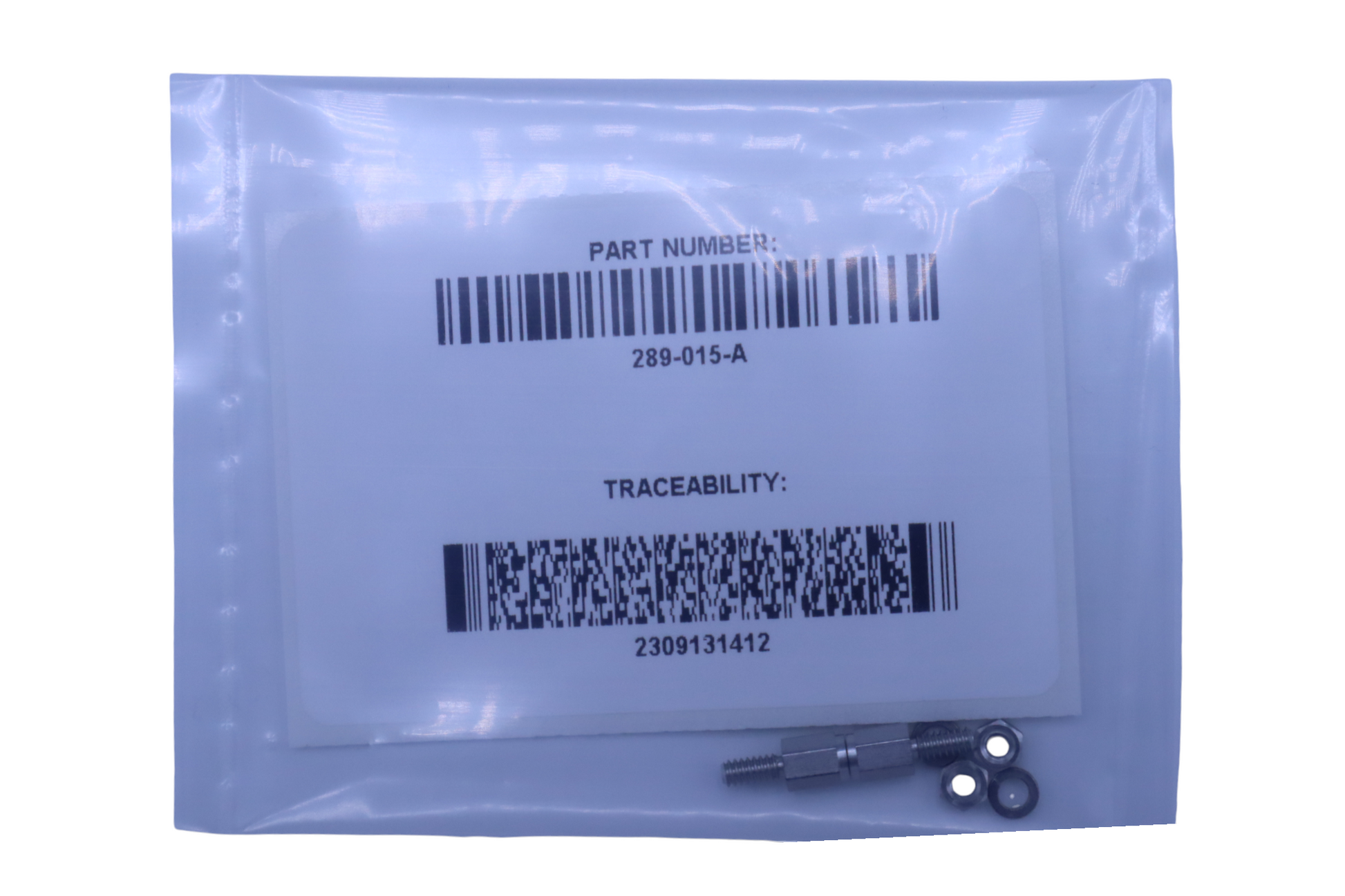

This listing is for the Glenair 289-015-A Jackpost Kit, essential hardware for panel mounting Glenair's high-performance Series 28 HiPer-D® and standard MIL-DTL-24308 D-Subminiature cable connectors.
The 289-015-A variant is specifically designated for front-mounted and cable-mounted connectors, where the jackposts attach directly to the connector flange and the panel is secured by a separate nut and lockwasher (included in the full kit). This hardware ensures a rugged, secure, and reliable attachment for high-reliability applications.
Key Specifications
| Attribute | Value |
| Manufacturer | Glenair, Inc. |
| Part Number | 289-015-A |
| Accessory Type | Jackpost Kit / Female Screwlock |
| Connector Series | Glenair Series 28 HiPer-D® and MIL-DTL-24308 D-Sub Cable Connectors (e.g., 280-018P, 280-019S, 280-046P, 280-047S) |
| Mounting Type | Front-Mounted / Cable-Mounted |
| Thread Size | #4-40 UNC 2B (Female) |
| Overall Length (OAL) | 0.500 inches (12.7 mm) (The length of the post itself is typically ≈0.250 in.) |
| Material | 300 Series Stainless Steel |
| Finish | Passivated |

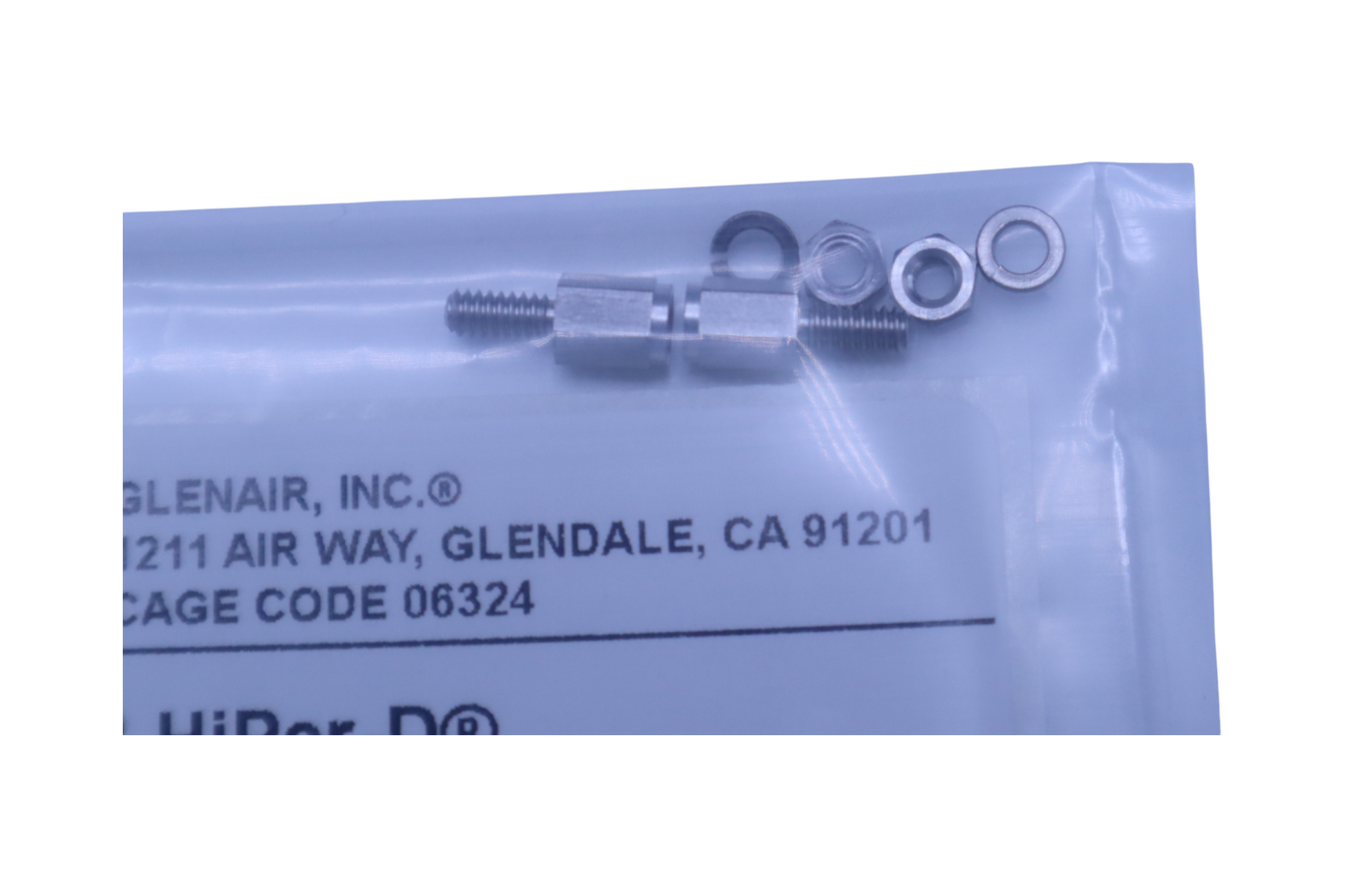

| Kit Contents (Standard Kit) | (2) Jackposts, (2) Hex Nuts, and (2) Split Lockwashers (Note: Components may be sold individually, check your order quantity.) |
| Features | High-reliability, corrosion-resistant stainless steel for aerospace and defense applications. |
Applications
-
Securing Glenair HiPer-D® cable connectors to front panels.
-
Panel mounting standard MIL-DTL-24308 (M24308) D-Sub cable assemblies.
-
Aerospace, Defense, Industrial, and other environments requiring rugged, high-reliability interconnect hardware.
