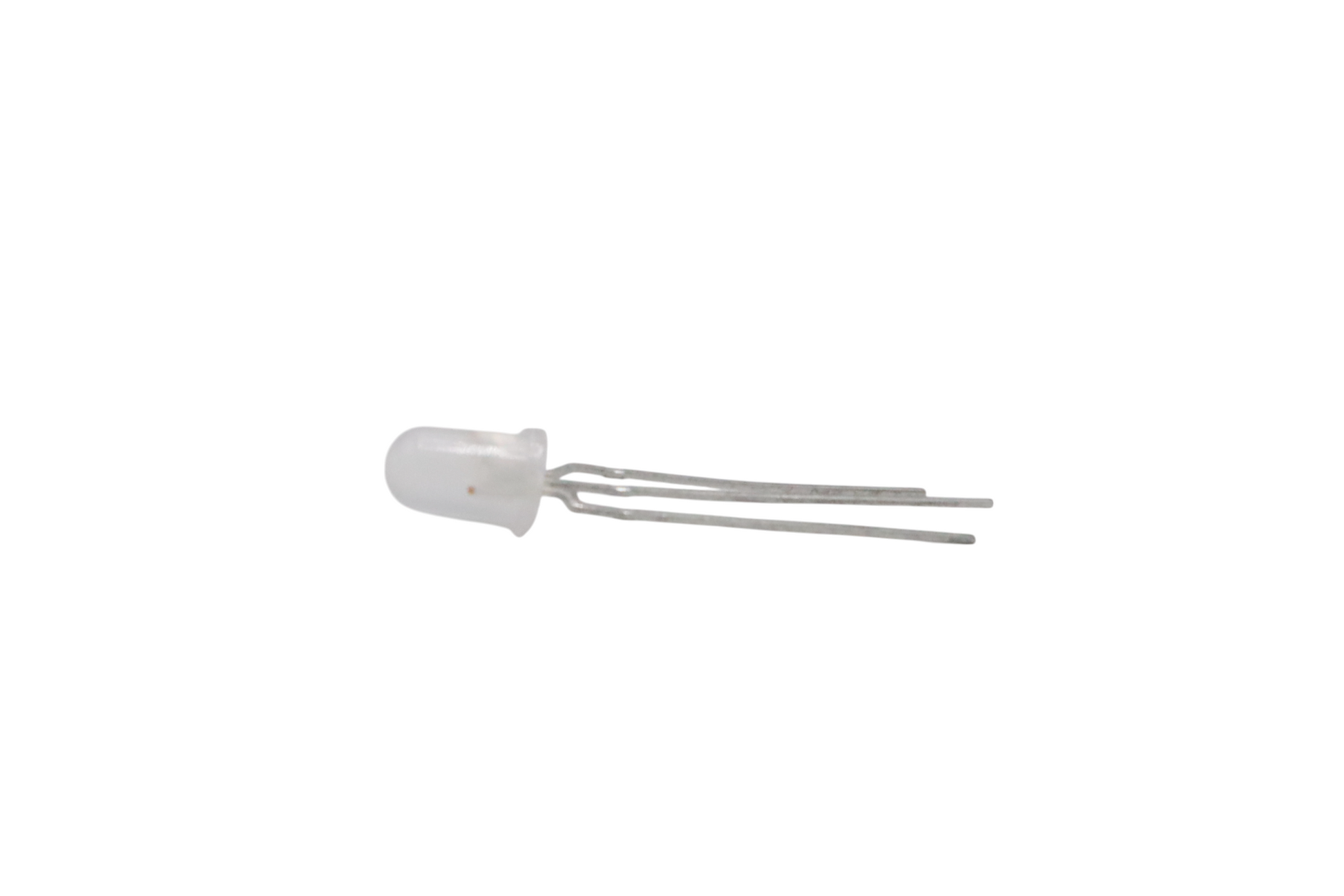

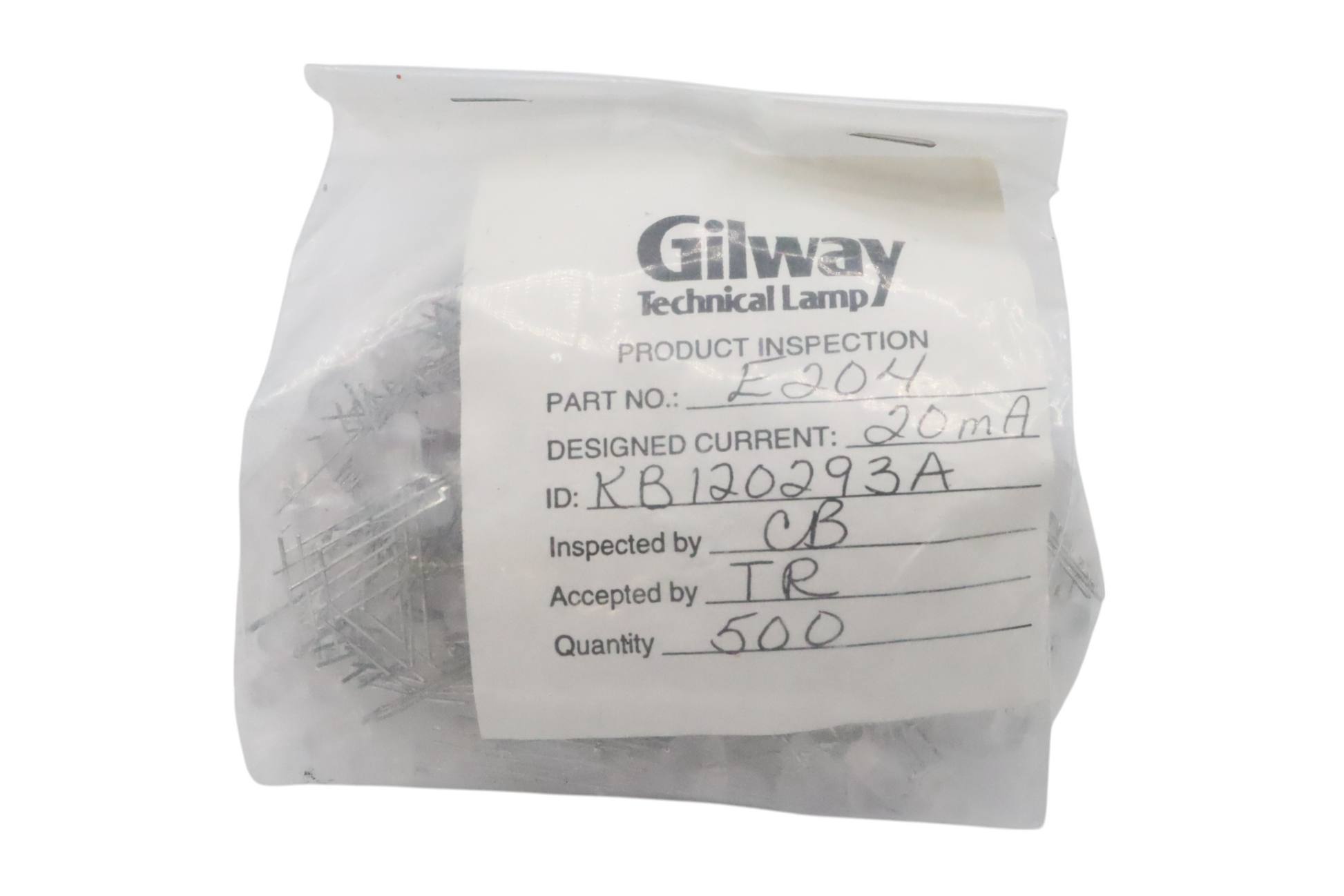

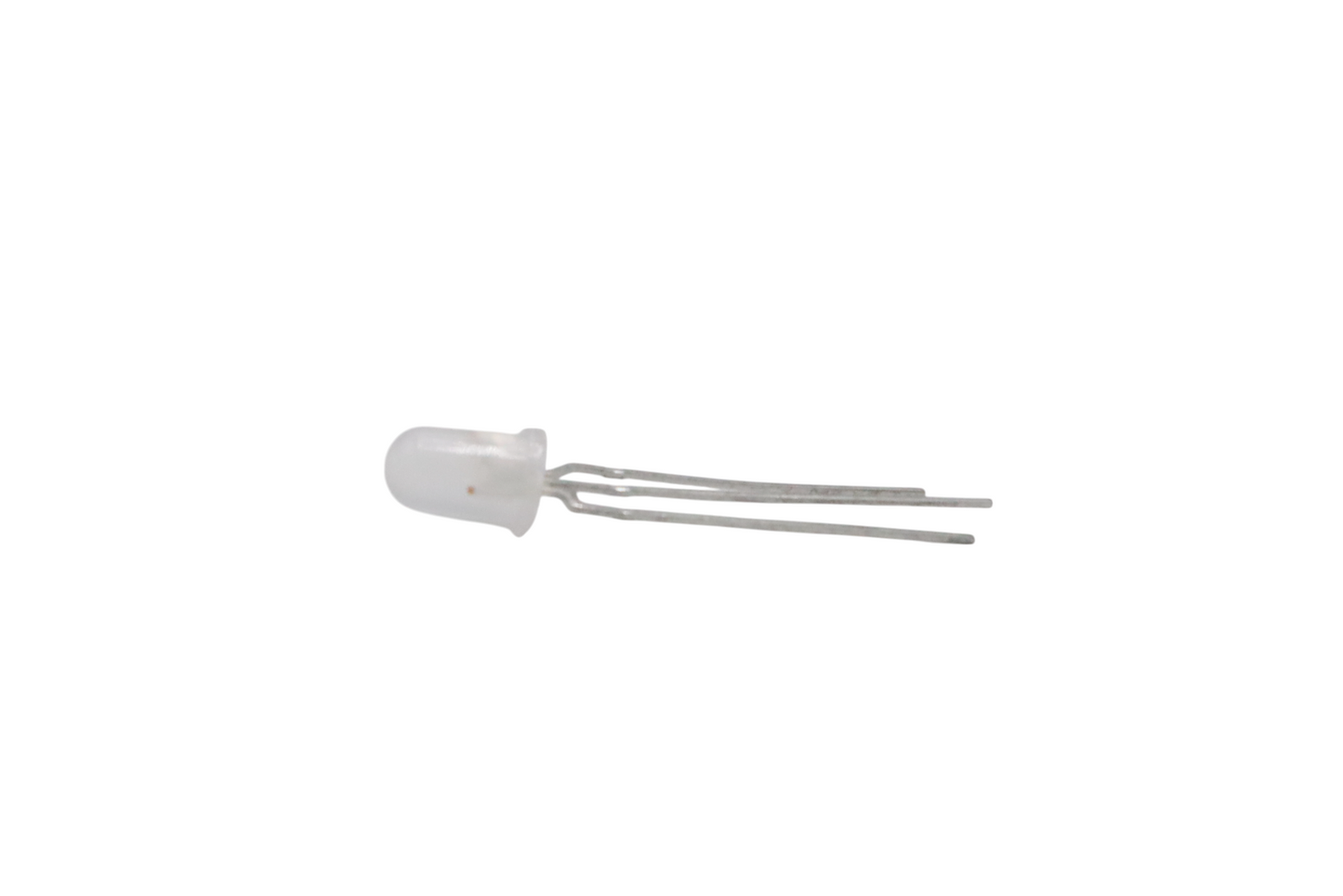

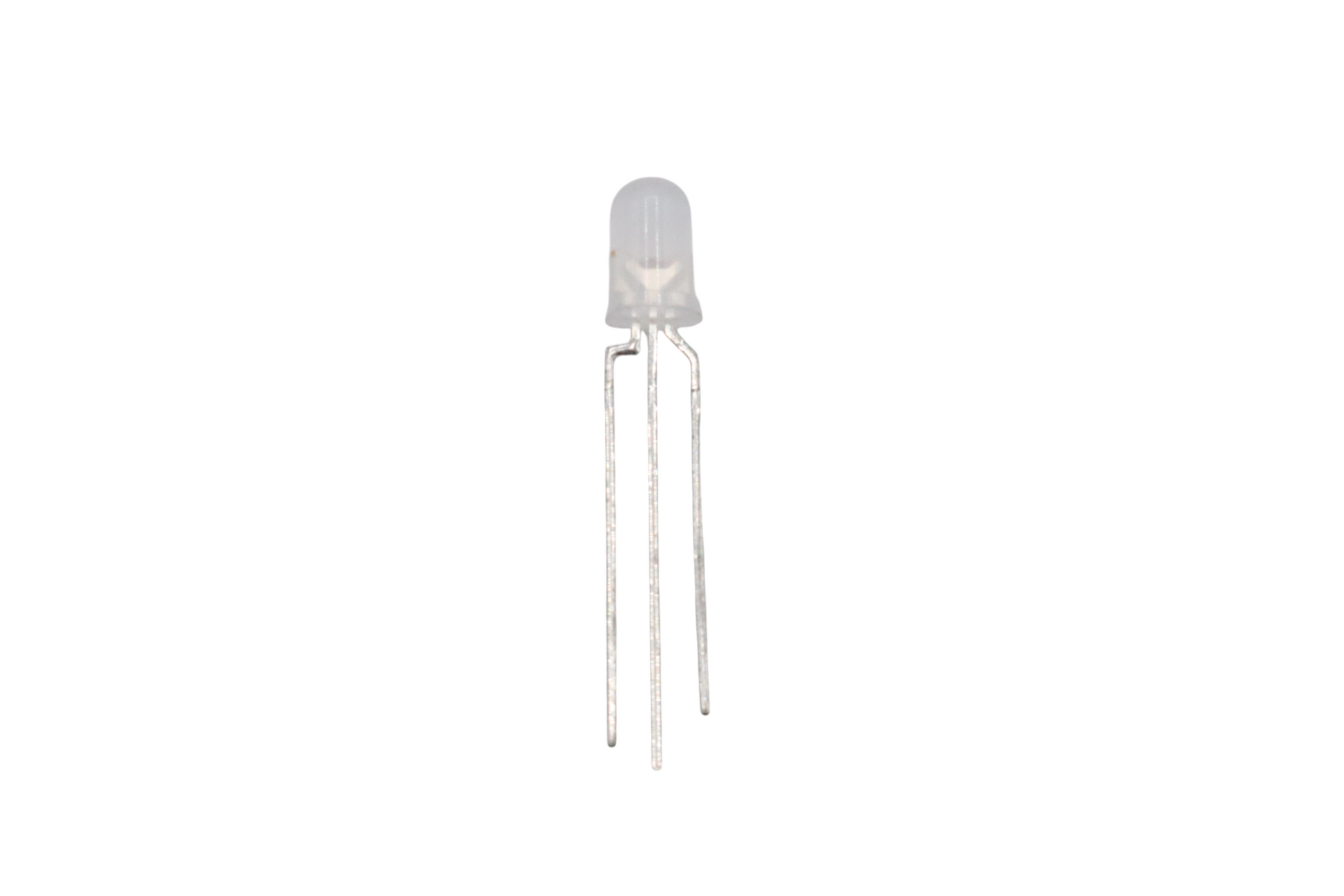

Gilway Technical Lamp E204 (500 PCS) Dual-Color LED Indicators, Red & Green, Diffused Lens

Illuminate your projects with the Gilway Technical Lamp E204 (500 PCS) Dual-Color LED Indicators, expertly designed to provide clear and vibrant visual signals. These LEDs offers both red and green illumination, making it an ideal choice for applications requiring dual-status indication.

Key Features:

• Dual-Color Output:

  • Red LED:

    • Luminous Intensity: 2.6 mcd
    • Wavelength: 627 nm
    • Forward Voltage: 2.0V
    • Cathode: Pin 1

  • Green LED:

    • Luminous Intensity: 1.6 mcd
    • Wavelength: 565 nm
    • Forward Voltage: 2.2V
    • Anode: Pin 2
    • Cathode: Pin 3

• Viewing Angle: 60°, providing a wide field of visibility for effective indication.

• Lens Design: Diffused, ensuring uniform light distribution and blending of colors for clear status indication.

• Applications: Perfect for electronic devices, control panels, and equipment requiring clear and concise visual feedback.

This versatile LED indicator is perfect for both commercial and industrial applications, offering reliable performance and easy integration into your systems. Whether you're designing new systems or upgrading existing ones, the Gilway Technical Lamp E204 is your dependable solution for accurate and efficient status indication.

For more details and technical specifications, please refer to the manufacturer's datasheet or contact us directly. Trust in Gilway Technical Lamp for components that meet your precise indication needs.
