General Connector GC329 (2-Pack) Audio / Video Connector, 6 Contacts, Cable Mount
General Connector GC329 (2-Pack) Audio / Video Connector, 6 Contacts, Cable Mount
Regular price
$27.99
Regular price
$0.00
Sale price
$27.99
Unit price
/
per
821 in stock
Couldn't load pickup availability

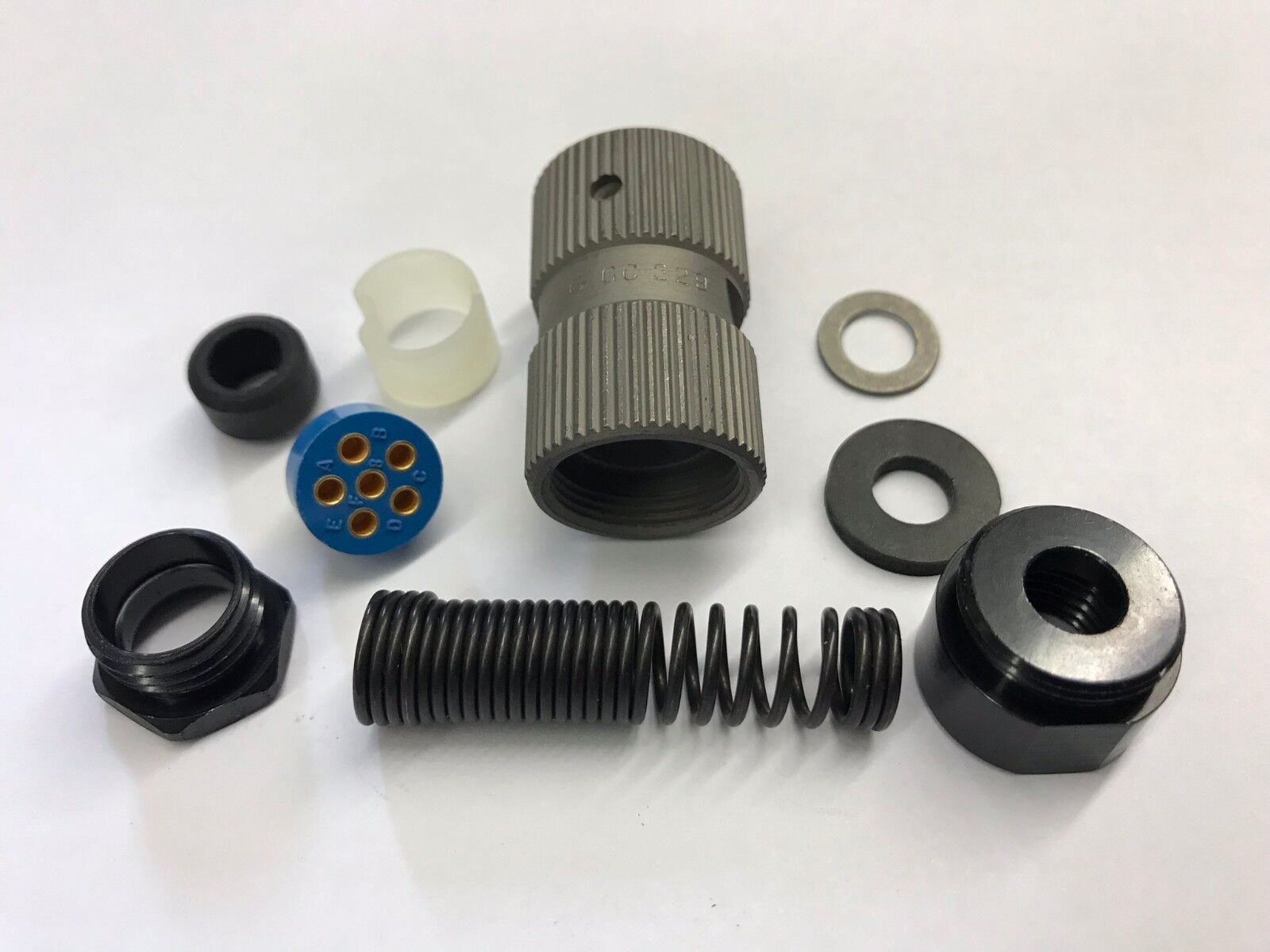

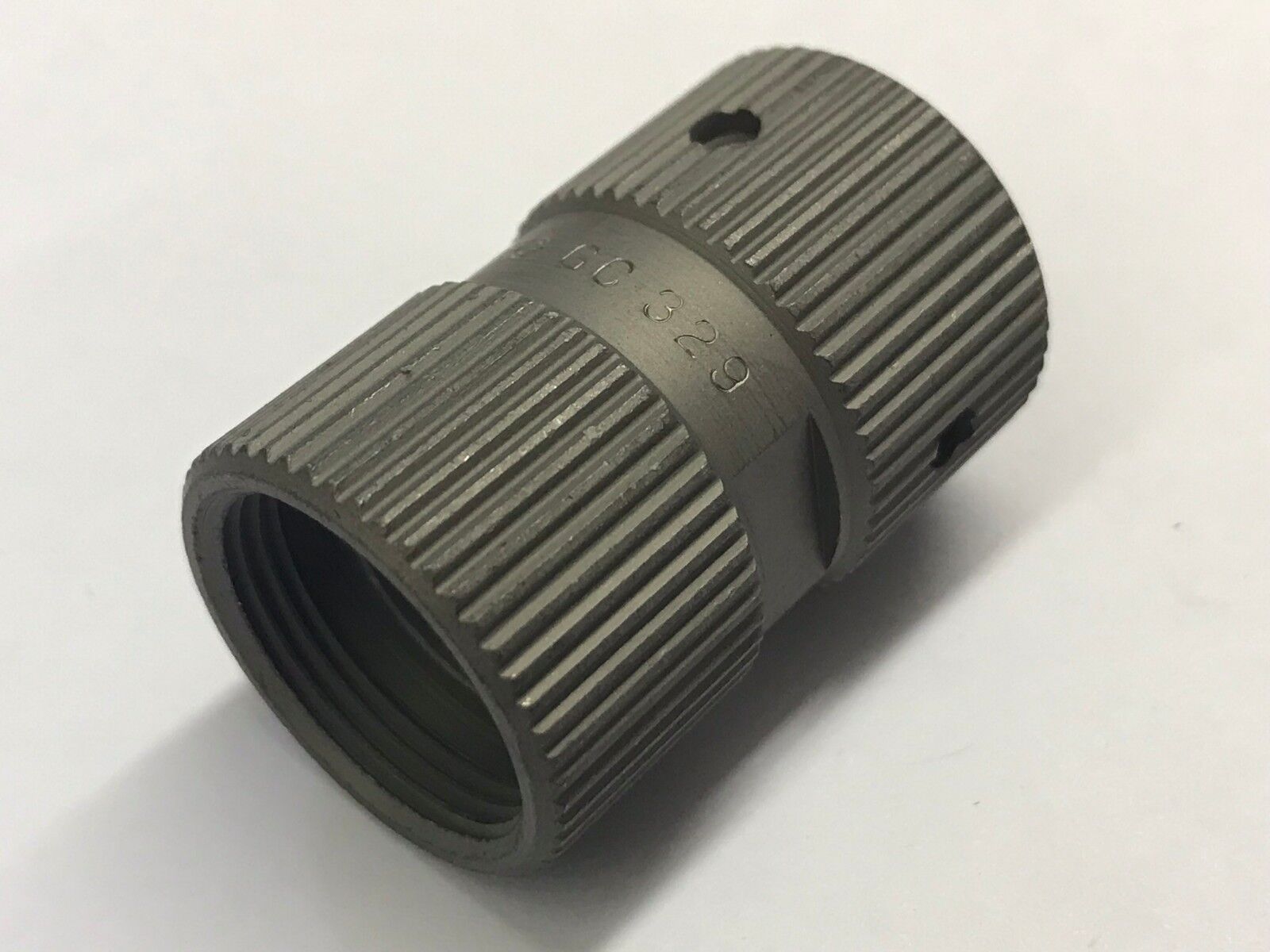

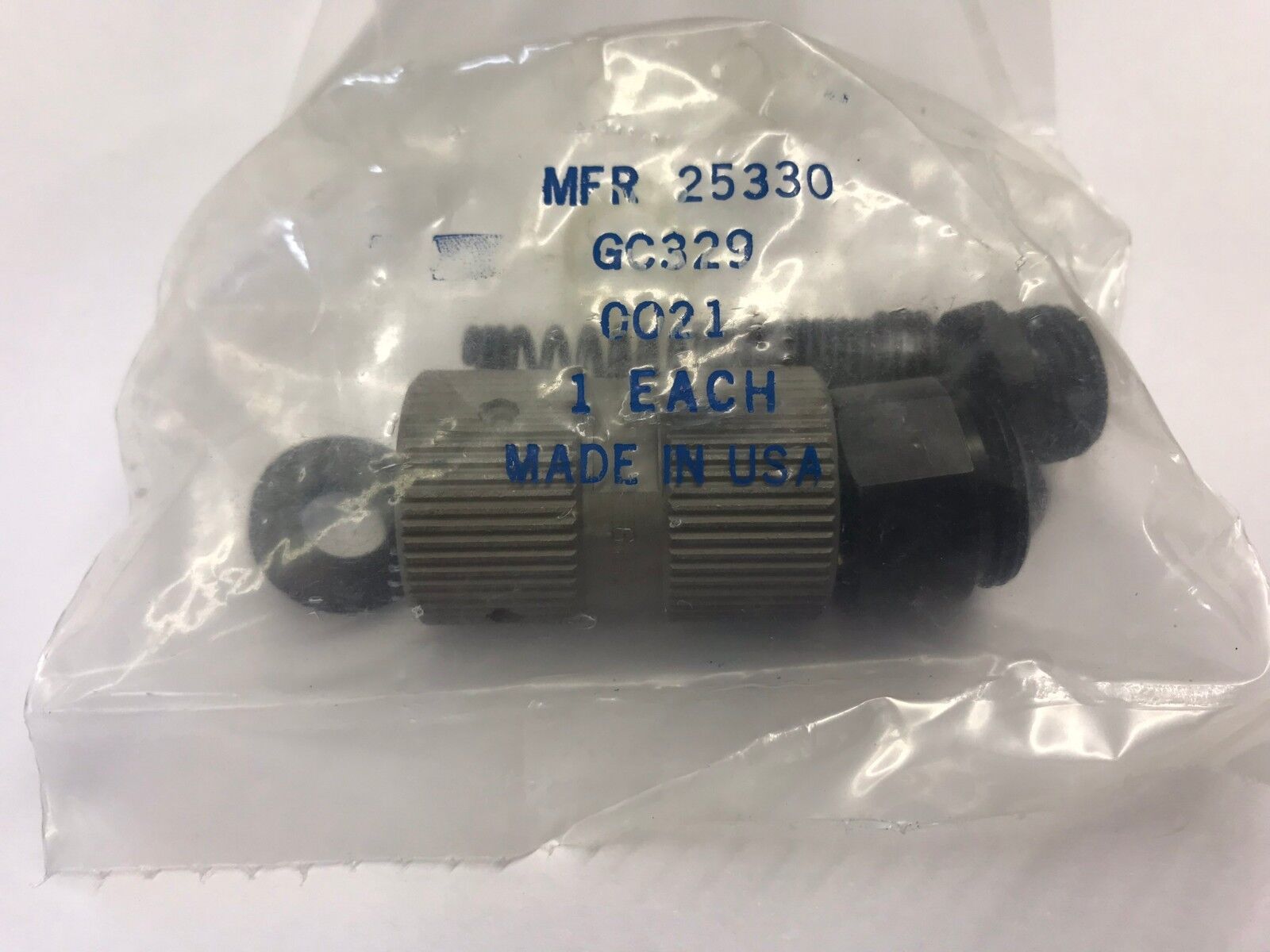

General Connector GC329 Audio / Video Connector, 6 Contacts, Cable Mount
Pack of 2
The General Audio and Video is an audio type connector. It has a straight body orientations. The connector has 6 contacts made of copper alloy and plated with gold over nickel. The insulation resistance of the connector is 1000MOhm. And maximum contact resistance is 50mOhm. The shell material of the connector is stainless steel with passivated plating. The mounting style of the connector is cable mount. It has solder termination method.
Features and Benefits:
• 60V Voltage rating
• Straight versions
• Outer body material Diallyl phathalate
Product Technical Specifications
| ECCN (US) | EAR99 |
| Part Status | Unconfirmed |
| HTS | 8536.69.80.00 |
| Automotive | No |
| PPAP | No |
| Type | Audio |
| Gender | PL |
| Number of Contacts | 6 |
| Termination Method | Solder |
| Body Orientation | Straight |
| Insulation Resistance (MOhm) | 1000 |
| Maximum Contact Resistance (mOhm) | 50 |
| Mating Cycle (Cycles) | 3000 |
| Shell Material | Stainless Steel |
| Shell Plating | Passivated |
| Product Length (mm) | 52.38 |
| Mounting | Cable Mount |
| Housing Material | Diallyl Phthalate |
| Contact Plating | Gold Over Nickel |
| Contact Material | Copper Alloy |
