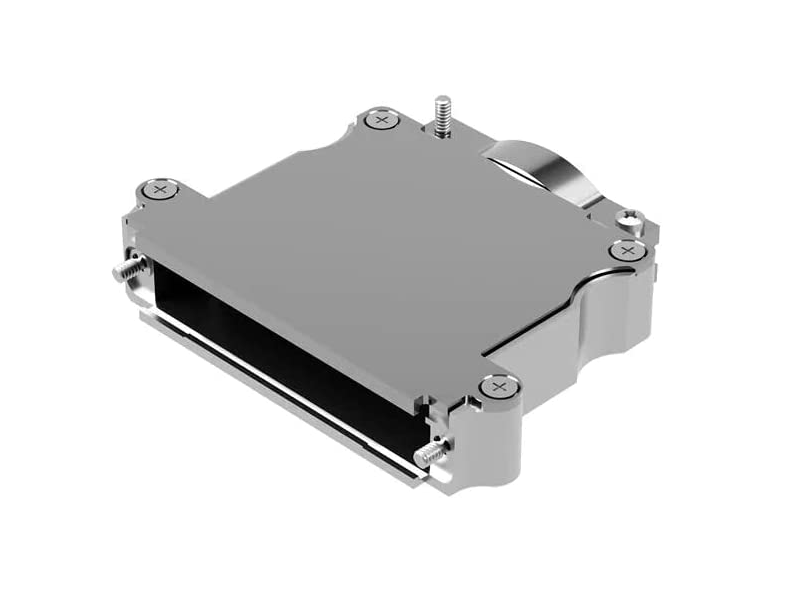

Amphenol Positronic D37000ANE0/AA Lightweight Aluminum Backshell

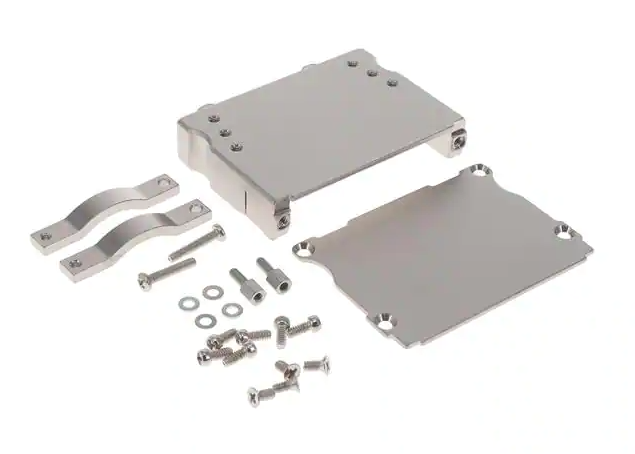

Amphenol Positronic D37000ANE0/AA Lightweight Aluminum Backshells for use with D-Sub Connectors, Includes Screws



* GROUND SCREWS - Sized and spaced for use with 6.35mm [.250 inch] diameter ring terminals. Ground shelf height and ground screw length allow for stacking of ring terminals. Holes are pre-tapped for ease of installation.
* APERTURE / STRAIN RELIEF - Appropriate for high density wire bundles using twisted, shielded pairs. Cable clamps can be "spooned" to provide strain relief for small wire bundle. Wide form factor allows the user to easily meet bend radius requirements.
* SPACIOUS INTERIOR - Shape maximizes internal area which facilitates harness assembly. No obstruction behind any portion of the connector body allows backshell to be used with Combo-D connectors.
* LOCKING SYSTEM - Available with jackscrews or quick disconnect locking device.
* THUMB GRIPS - Grip facilitates installation and removal in tight spaces.




Accessory Type
Two Piece Backshell
Number of Positions
37
Cable Type
Round
Cable Exit
180°
Shielding
Unshielded
Primary Material
Metal
Material
Aluminum Alloy
Plating
Electroless Nickel
Hardware
Assembly Hardware, Cable Clamp
Features
Mating Screws 4-40
Color
Silver
