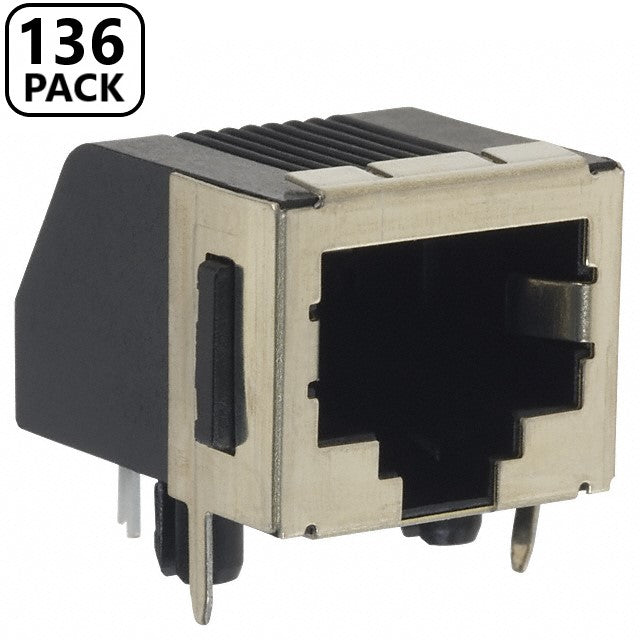

AMP 555153-1 (136-Pack) Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded Cat3, Single Port, 1 x 1
AMP 555153-1 (136-Pack) Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded Cat3, Single Port, 1 x 1
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
/
per
Low stock: 10 left
Couldn't load pickup availability
Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded Cat3 (Pack of 136)
Description:
The 5555153-1 is a 8P8C 1-port RJ45/CAT-3 shielded right angle Modular Jack with gold-plated phosphor bronze contacts, black PBT polyester housing, panel stops and tin-plated copper alloy shield. It is designed for direct mounting on PC boards, ease of soldering and board cleaning. Solder termination 150VAC Maximum voltage rating 750 Mating cycles durability UL94V-0 Flammability rating Applications Computers & Computer Peripherals
Specs
| Description | Value | |
|---|---|---|
|
|
Base/Housing Material | PBT (Polybutylene Terephthalate) |
|
|
Body Orientation | Right Angle |
|
|
Contact Material | Phosphor Bronze |
|
|
Contact Plating | Gold |
|
|
Gender | Receptacle |
|
|
Lead Finish | Tin |
|
|
Max Processing Temp | 265 |
|
|
Mounting | Through Hole |
|
|
Operating Temperature | -40 to 70 °C |
|
|
Pitch | 2.5400 mm |
|
|
Product Dimensions | 17.91 x 18.42 x 12.7 mm |
|
|
Product Length | 17.91 mm |
|
|
Termination Method | Solder |
