EPT Connectors 115-90064 DIN 41612 Male Straight, Type R/2 (26-Pack)

EPT Connectors 115-90064 DIN 41612 Male Straight, Type R/2 (26-Pack)

$79.99
$79.99
Sale Sold out

23 in stock

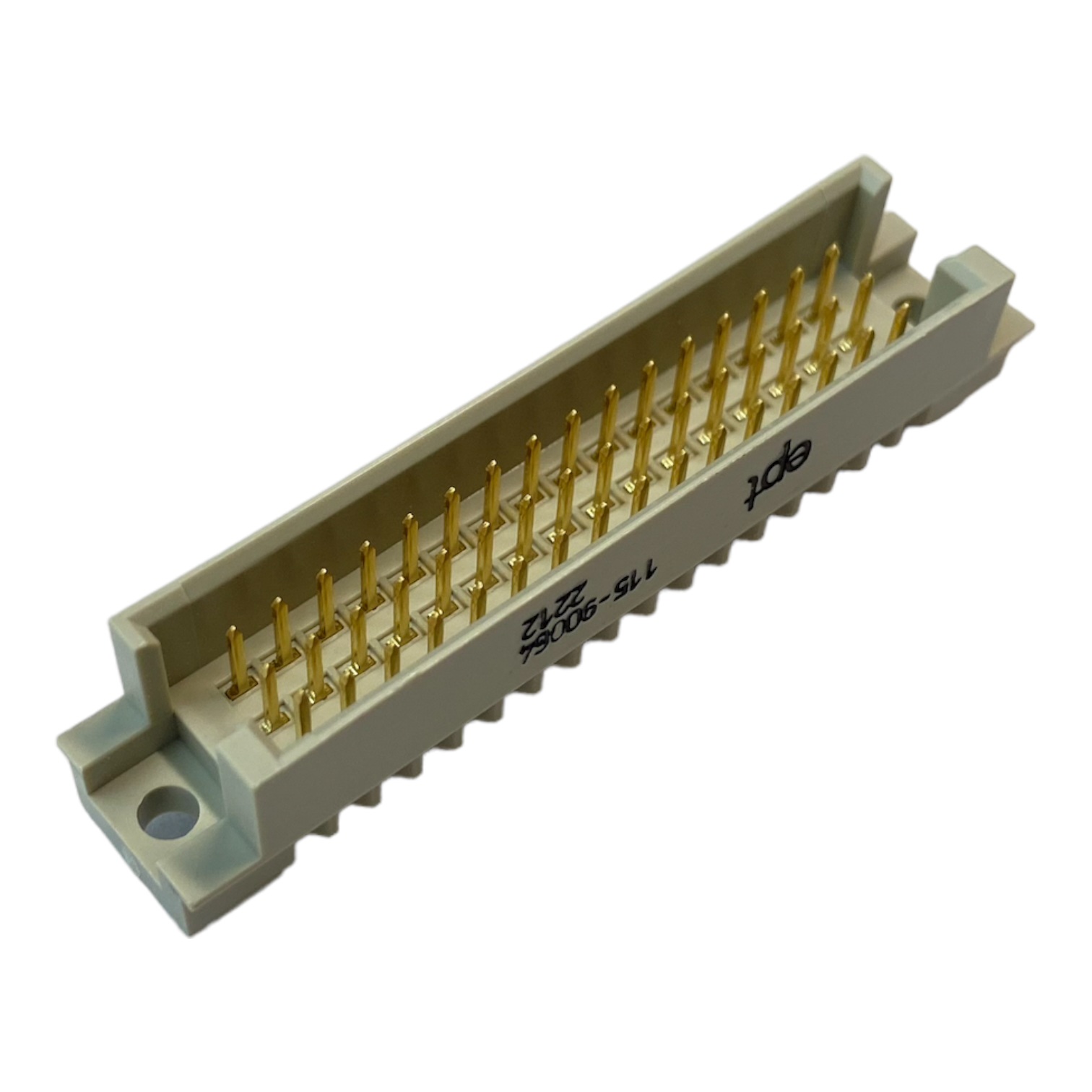

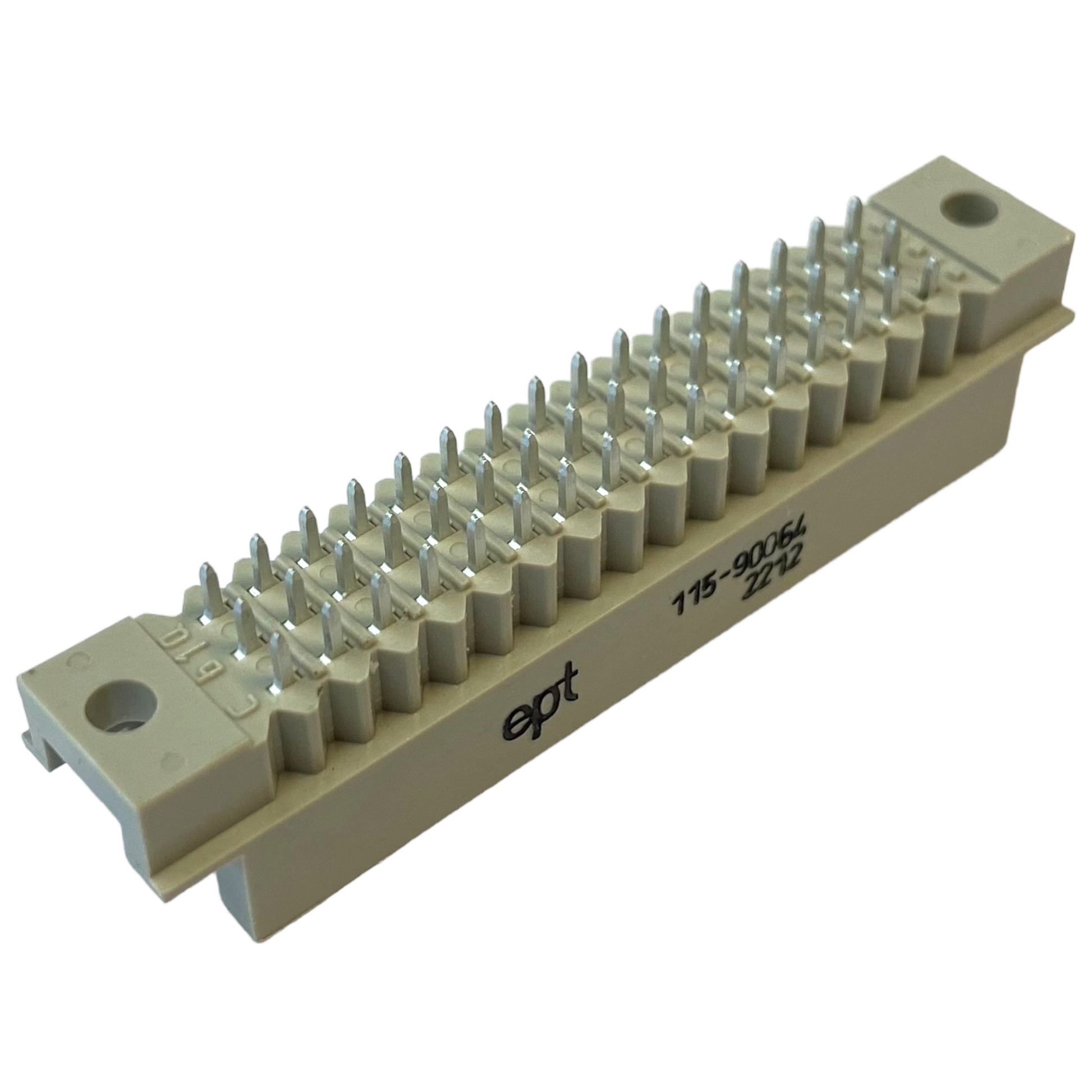

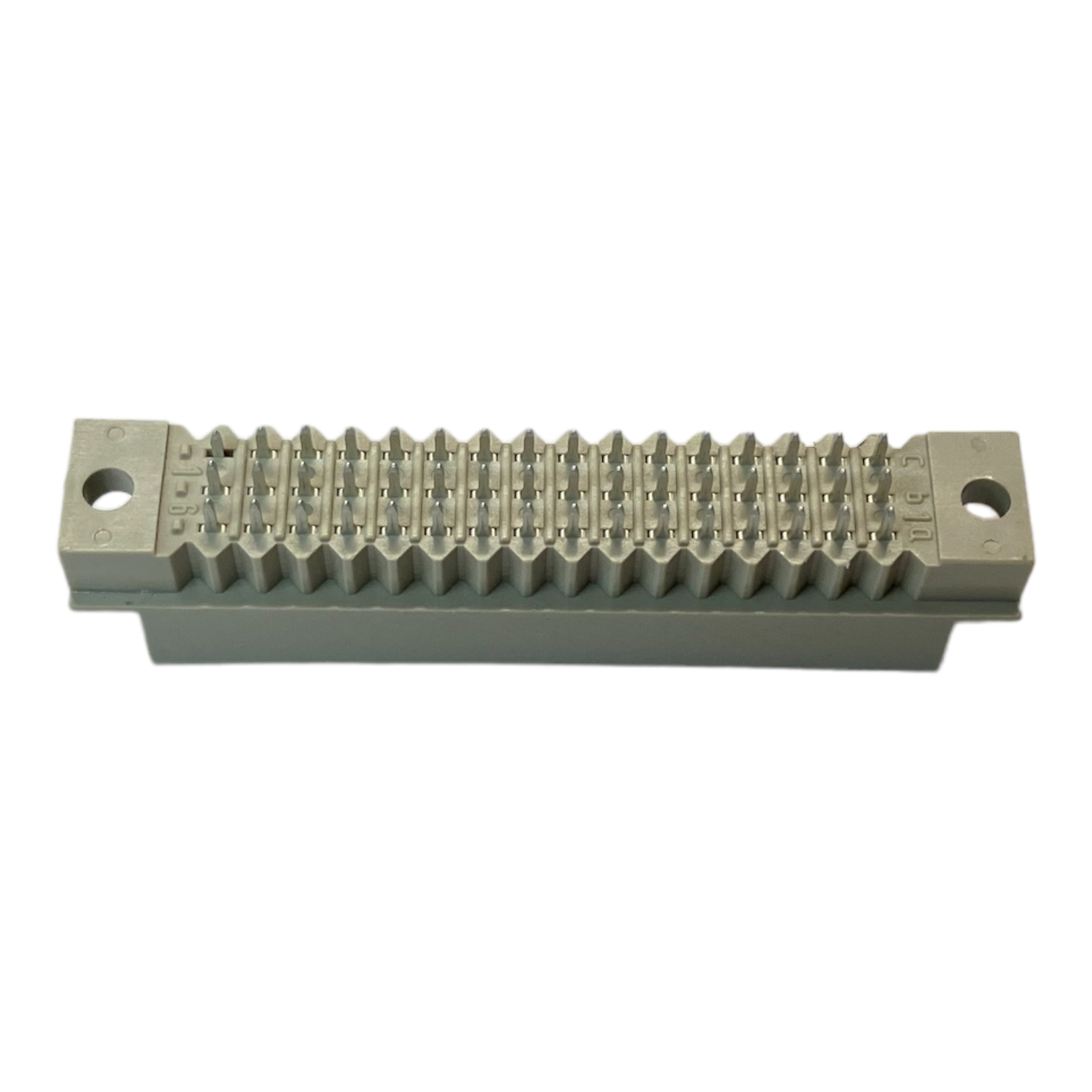

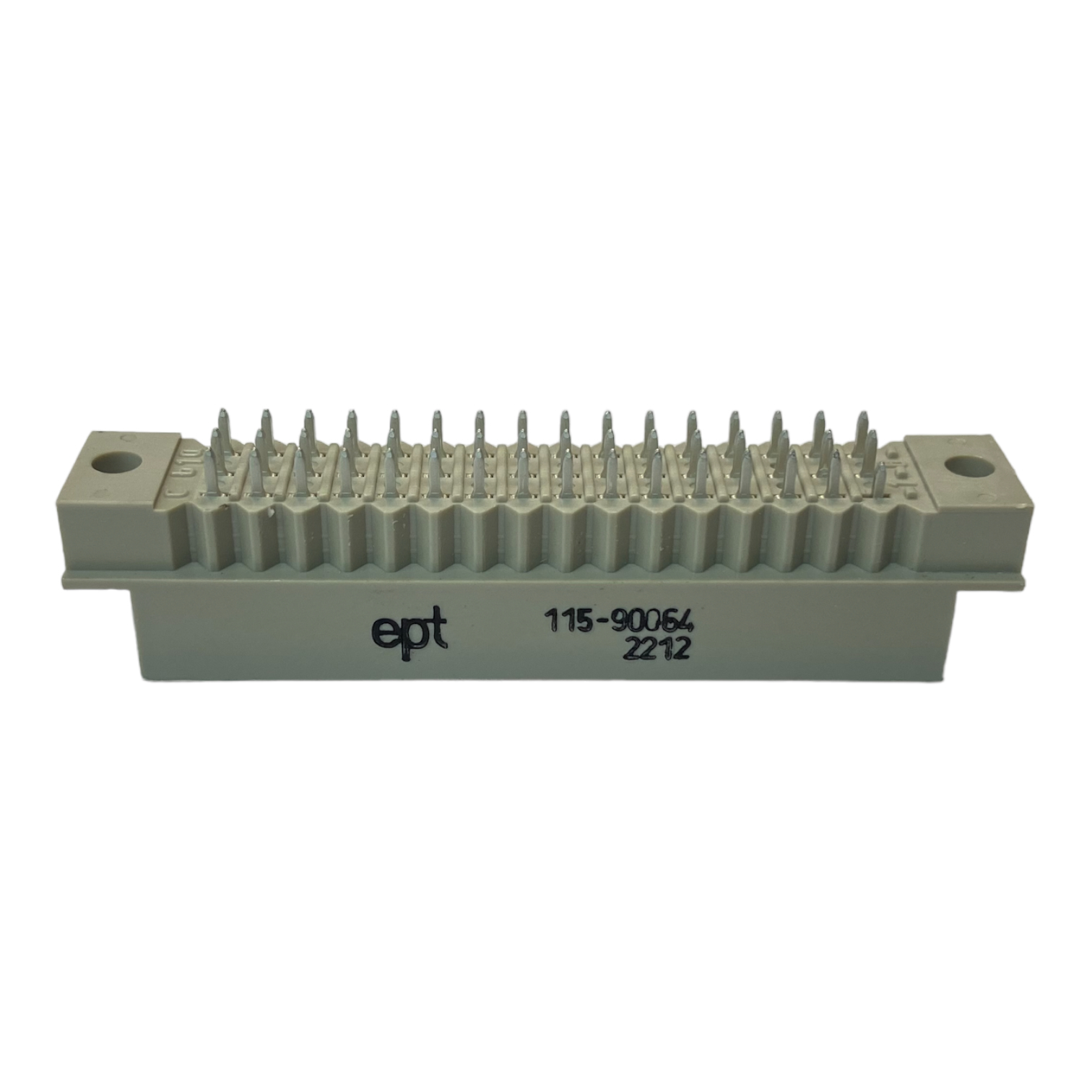

EPT Connectors 115-90064 DIN 41612 Male straight, type R/2

FEATURES

  • Part No. 115-90064
  • Termination length 2.5 mm
  • 48 contacts
  • solder
  • performance level 2

BASICS

Specification IEC 60603-2 (DIN 41612)
Performance Level 2
No. of Contacts 48
Termination Technology solder
Termination Length 2.5 mm
Board-to-Board Distance 16.85 mm
Operating Temperature Range -55°C to +125°C


MATERIAL

Insulator Material PBT glass filled UL 94 V-0
CTI value
IEC 60112 		200
Contact Material Copper alloy


MECHANICAL

Pitch 2.54 mm
Mating Force < 45 N
Separating Force per Pin > 0.15 N
Durability 400  mating cycles


ELECTRICAL

Operational Current 1.5 A
Contact Resistance <20 mΩ
Clearance and Creepage ≥ 1.2 mm
Insulation Resistance >106 MΩ
Test Voltage 1000 V


PROCESSING

Soldering Temperature to 260°C
